• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Shaft Diameter：72mm
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Machines Weight：About 11 T
• Certificate：ISO,Ce,Soncap
• Delivery Time：About 60days
• Machine Color：Optional
• Brand Name：Zhongyuan
• Place of Origin：China
• Operation Language：English or as Per Client`S Required
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：8455221000
• Production Capacity：10sets,Month

Suitable materialQ235 color steel sheet;0.4-0.7mm,Forming speedabout 20m/minPower RequirementMain motor power: 7.5 Kw(Depend on final design)Hydraulic station power: 2.2Kw(Depend on final design)Material of forming rollersNo.45 steel, plated with chrome on sureface.Material of cutterCr12 mould steel with quench treatment, HRC58-60Material of shaftHigh quality 45# steel with heat treatment.Roller grinder milling.Shaft diameter72mmControlling systemMitsubishi PLC & converter
Components of machineDecoiler1setFeeding & guiding device1setPost cutting device1setMain roll forming machine1setHydraulic cutting system1set Controlling system1set Run out table1set
Process flow:Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
Why choose this machine?

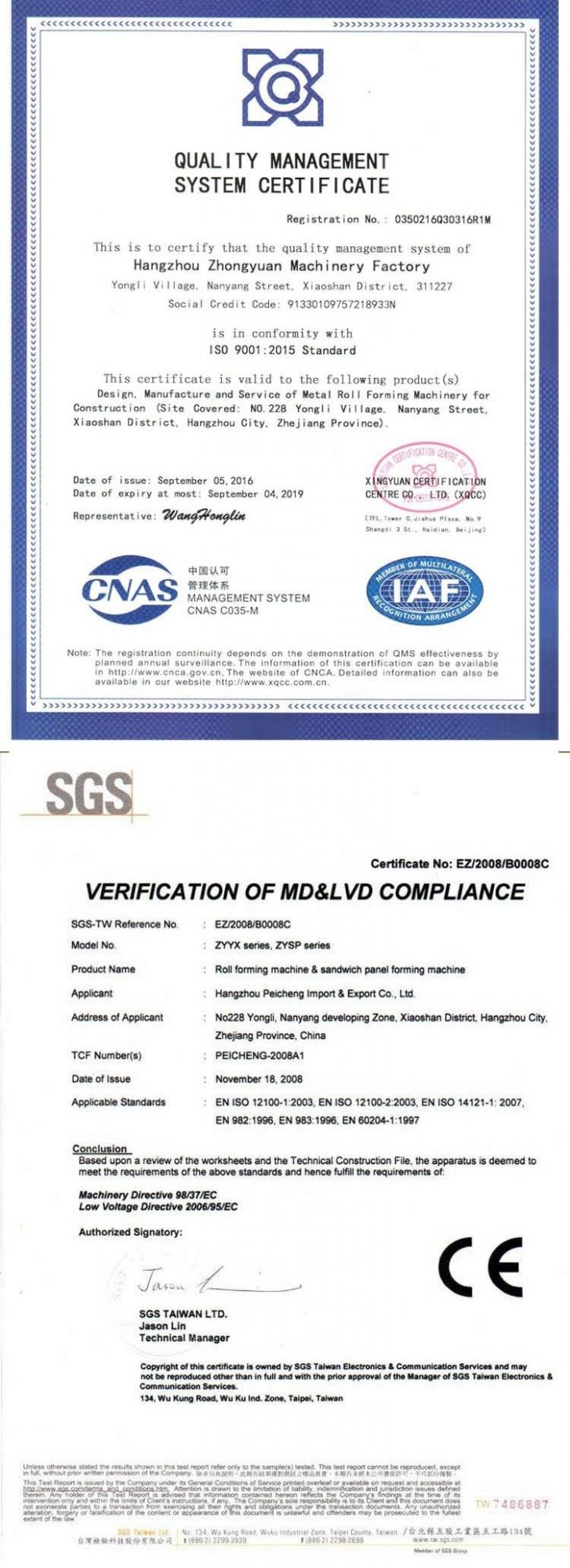

1. Certificate: ISO 9001, CE,
2. Lifetime seivices

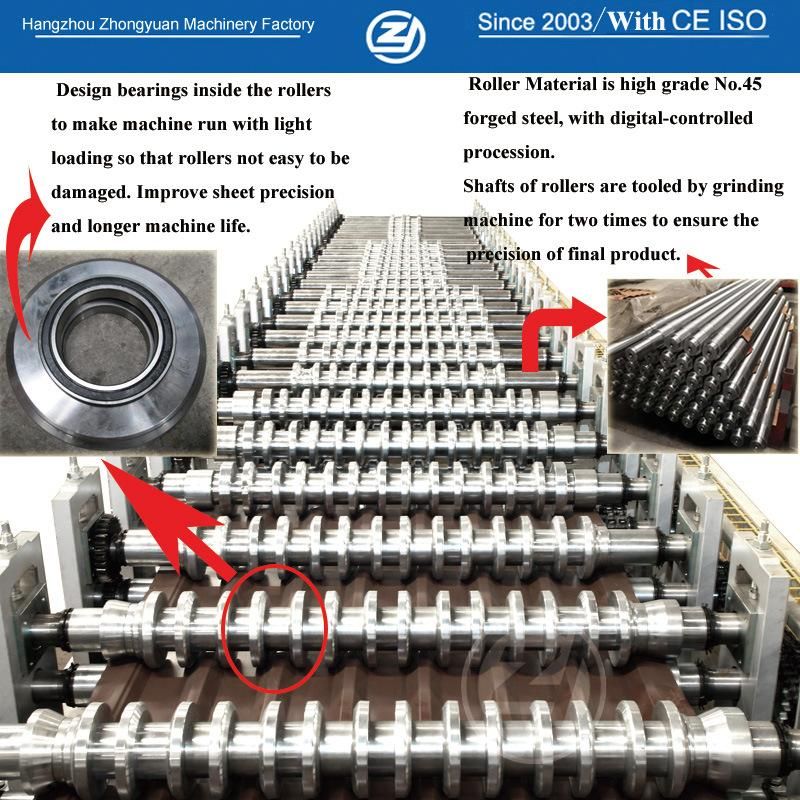

3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available

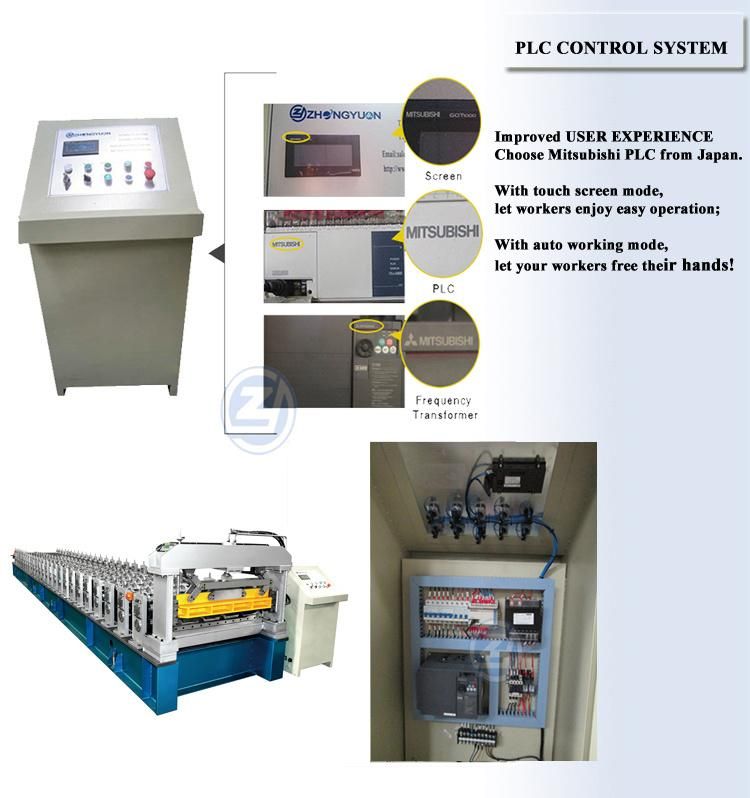

Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!





About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order

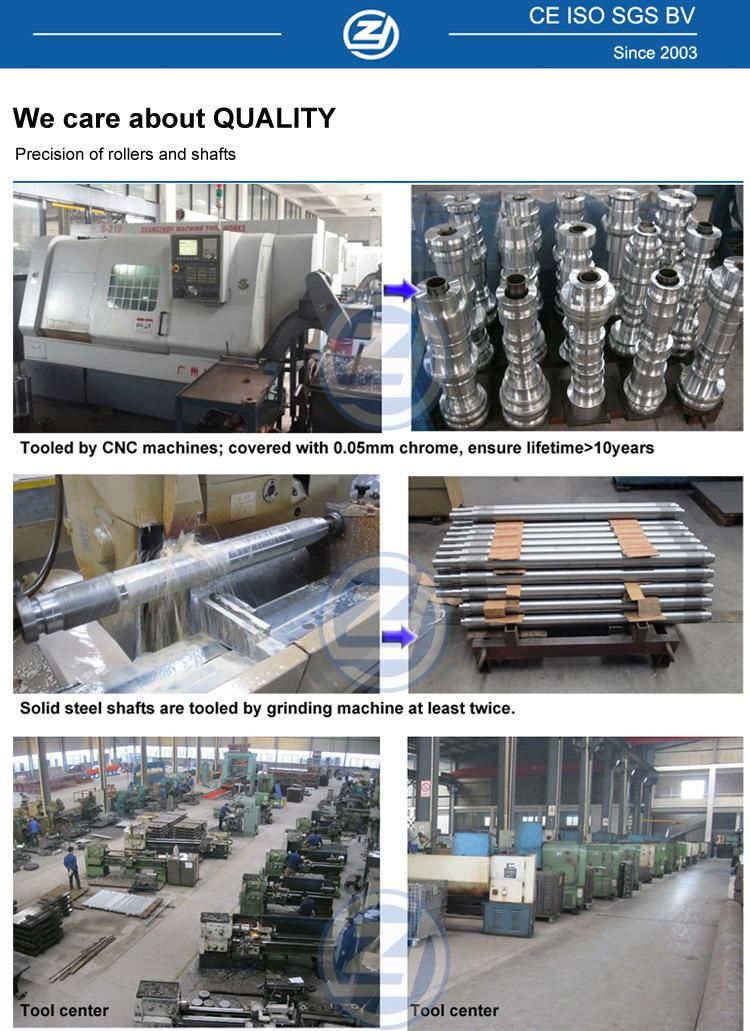

3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.





Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
