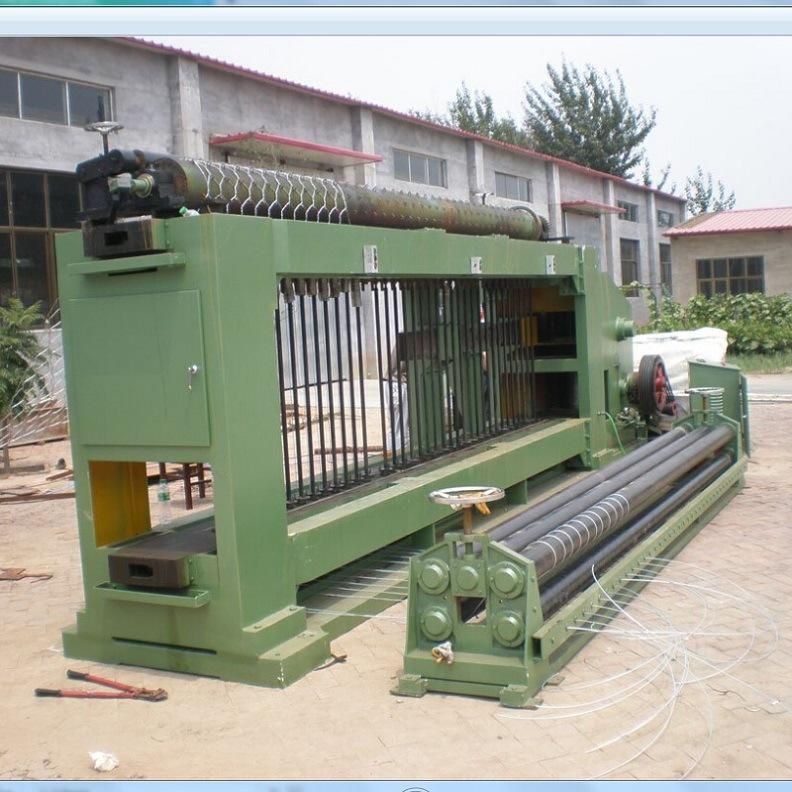

CNC 4300mm Width Reverse Twist Gabion Hexagonal Wire Netting Machine
Anping Xingmao Metal Wire Mesh Co., Ltd.- Mesh Size：60*80mm, 80*100mm, 100*120mm
- Motor Power：22kw
- Max Mesh Width：4300mm
- Theoretical Production Speed：25mesh,Min
- Max. Galvanized Wire Diameter：3mm and 4mm
- Weight：13-15ton
Base Info
- Model NO.：XM32-1
- Machine Size：7200 X 1400 X 2400mm
- Max PVC Wire Diameter：4mm and 5mm
- Theoretic Output：195m,Hr and 220m,H
- Certificates：ISO9001, SGS, BV, Co,Ce, Pvoc
- Transport Package：by Container
- Specification：7200*1400*2300mm
- Trademark：X&M
- Origin：Anping, China
- HS Code：8501109990
- Production Capacity：8sets Per Month
Description
Model
Mesh hole(mm)
Max width(mm)
Wire diameter(mm)
Twisting number
motor
Capacity(m/h)
LNWL23-60-2
60*80
2300
1.6-3.0
3
11
165
LNWL23-80-2
80*100
1.6-3.0
195
LNWL23-100-2
100*120
1.6-3.5
225
LNWL23-120-2
120*150
1.6-3.2
255
LNWL33-60-2
60*80
3300
1.6-2.8
15
165
LNWL33-80-2
80*100
1.6-3.0
195
LNWL33-100-2
100*120
1.6-3.2
225
LNWL33-120-2
120*150
1.6-3.5
255
LNWL43-60-2
60*80
4300
1.6-2.8
22
165
LNWL43-80-2
80*100
1.6-3.0
195
LNWL43-100-2
100*120
1.6-3.0
225
LNWL43-120-2
120*150
1.6-3.2
255
LNWL43-60-3
60*80
4300
1.6-2.8
5
22
165
LNWL43-80-3
80*100
1.6-3.0
195
LNWL43-100-3
100*120
1.6-3.0
225
LNWL43-120-3
120*150
1.6-3.2
255
