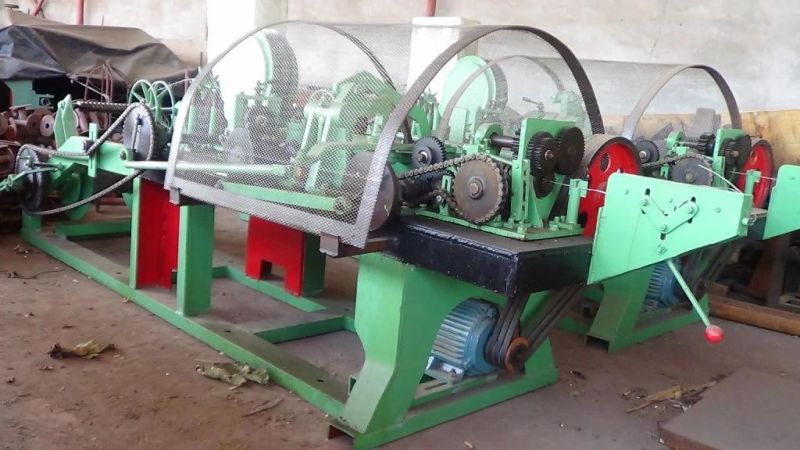

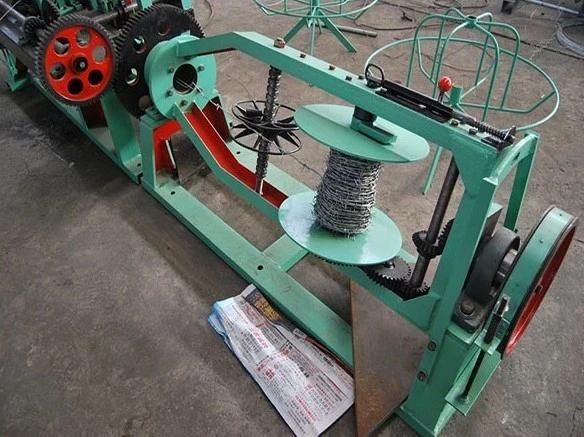

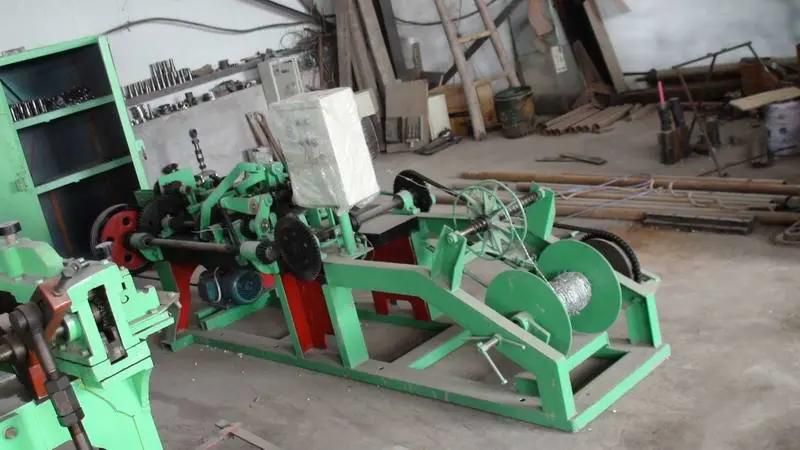

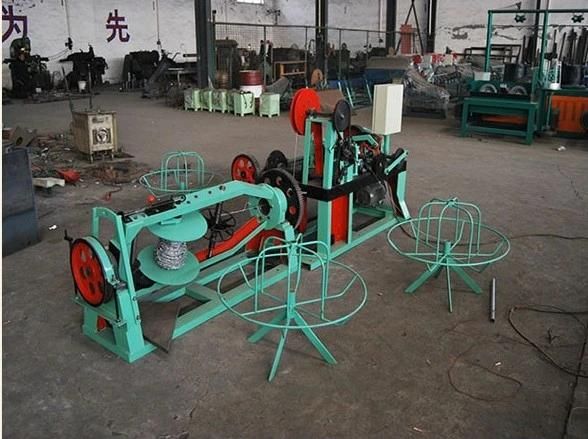

China Factory of Automatic High Speed Barbed Wire Machine (XM5-31)
Anping Xingmao Metal Wire Mesh Co., Ltd.- Barb Wire Dia：1.8mm-2.2mm
- Strand Wire Dia：1.8mm-3.0mm
- Barb Pitch Distance：76mm,102mm
- Barb Width：13mm
- Barb Spacing：26mm
- Output of 24 Hours：500kgs.
Base Info
- Model NO.：XM5-31
- Wire Material：Galvanized Wire and Stainless Steel Wire,PVC Wire.
- Transformer：3.0kw
- Voltage：380V or as Local Standard
- Dimension：1900*1300*980mm
- Transport Package：Pallet or as Your Request
- Specification：1900mmx1300mmx980mm
- Trademark：X&M
- Origin：Anping, China
- HS Code：84629910
- Production Capacity：12sets Per Month
Description

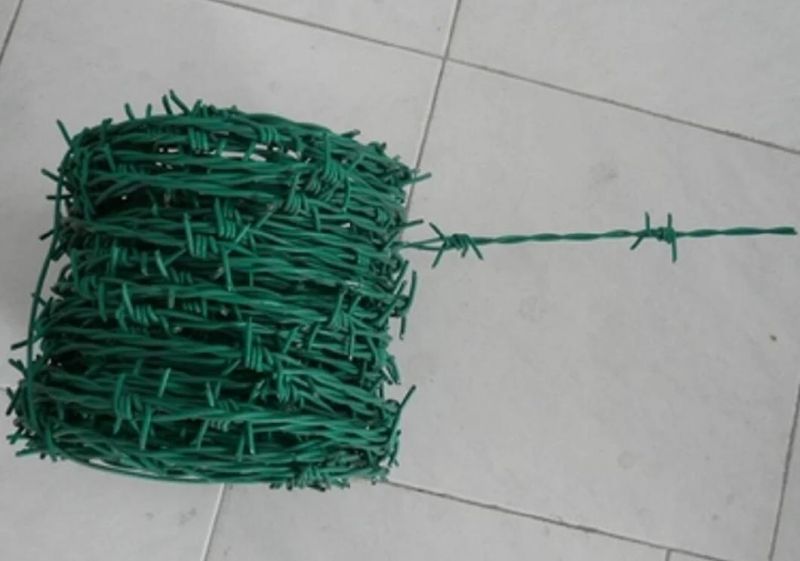

Gauge of Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs spacing 3"
Barbs spacing 4"
Barbs spacing 5"
Barbs spacing 6"
12x12
6.0617
6.7590
7.2700
7.6376
12x14
7.3335
7.9051
8.3015
8.5741
12-1/2x12-1/2
6.9223
7.7190
8.3022
8.7221
12-1/2x14
8.1096
8.814
9.2242
9.5620
13x13
7.9808
8.899
9.5721
10.7146
13x14
8.8448
9.6899
10.2923
10.7146
13-1/2x14
9.6079
10.6134
11.4705
11.8553
14x14
10.4569
11.6590
12.5423
13.1752
14-1/2x14-1/2
11.9875
13.3671
14.3781
15.1034
15x15
13.8927
15.4942
16.6666
17.5070
15-1/2x15-1/2
15.3491
17.1144
18.4060
19.3386
| diameter, screen wire | 2.5-3mm | Material, screen wire & barbed wire | Low carbon steel wire, thermo-plated with zinc |
Diameter, wire for barbs | 2-2.5mm | total weight | 1500 kgs |
Barb pitch spacing | 3,4,5,6in | power of motor | 3 kw |
