CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)

Shanghai Tayor Heavy Industry (Group) Co., Ltd.
  • Customized：Customized
  • Layout：Coaxial
  • Cutting Material：Copper, Carbon Steel, Aluminum, Stainless Steel
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Cutting Mode：Plasma or Flame

Base Info

  • Model NO.：CNCXG
  • Place of Origin：Shanghai, China
  • Brand Name：Tayor
  • Machine Model：Cncxg
  • Number of Control Axes：2-6
  • Cutting Speed：80-1800
  • Plasma Max Beveling Angle：± 45°
  • Flame Max Beveling Angle：± 60°
  • Cutting Thickness：5-60mm
  • Transport Package：Plywood Case or Pallet
  • Specification：CE, CCC, ISO9001
  • Trademark：Tayor
  • Origin：China
  • HS Code：8456091000
  • Production Capacity：500 PCS,Year

Description

Cutting Technical DataCutting Pipe DiameterΦ50-630Φ60-800Φ100-1000Φ200-1250Pipe length2000-120002000-120002000-120002000-12000Cutting Speed80-1800Cutting ThicknessFlame:5-60mm,Plasma:1-50mmPlasma max beveling angle±45°Flame max beveling angle±60°Basic components Pipe Chuck3 jaws concentric chuckCutting ModeFlame and PlasmaNumber of Control Axes2-6Driving MotorPanasonicAvailable Plasma PowerHypertherm, Thermadyne, Kjellberg ,TAYOR LGKOther DataOperation languageEnglish or ChinesePower voltage3×380V±10% or up by user's local condition

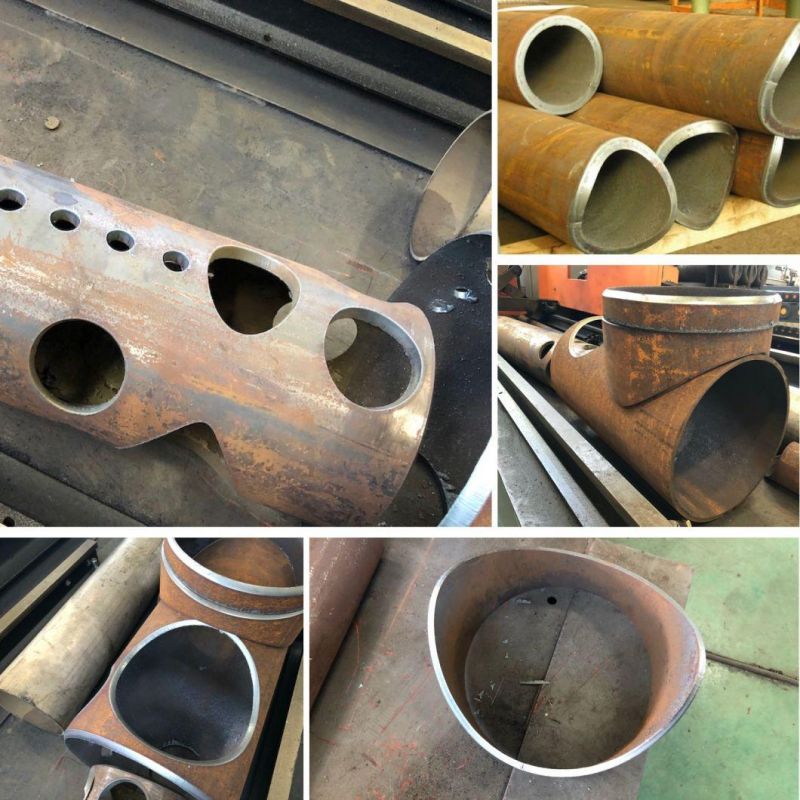

Cutting Sample

CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)

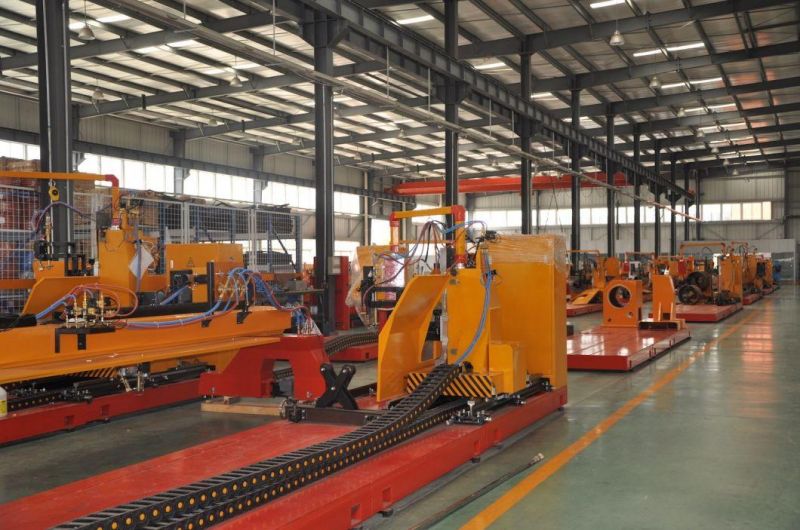

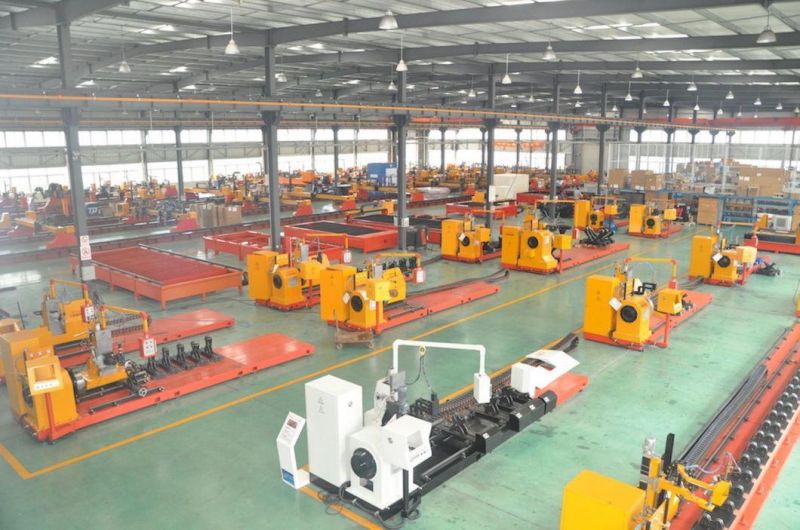

Workshop
CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)
CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)

Packing and Delivery
CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)

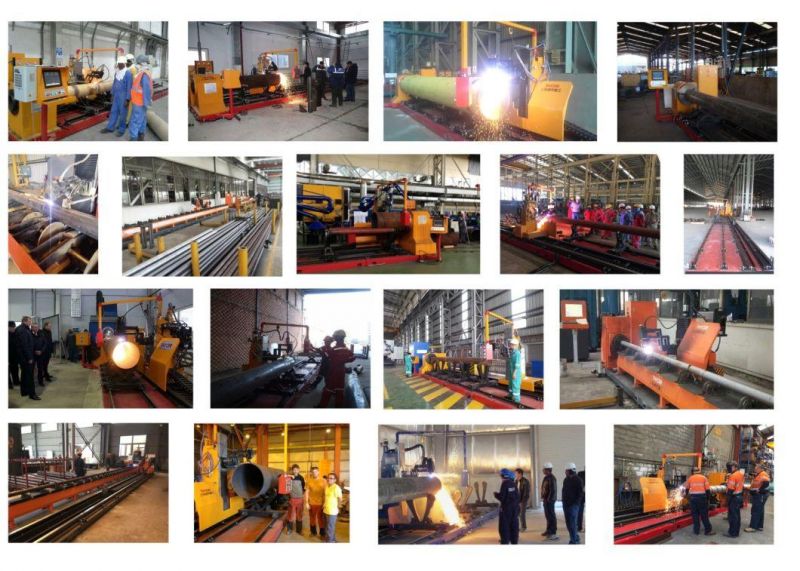

User's Site

CNC Intersection Cutting Machine, CNC Pipe Profile Cutting Machine (CNCXG)
