CNC Cutting Machine for Steel Pipe
Shanghai Tayor Heavy Industry (Group) Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting or Flame Cutting
Base Info
- Model NO.：CNCXG
- Metal：Pipe Cutting Tube Cutting
- Material：Stainless Steel or Carbon Steel
- Pipe Diameter：40-300mm; 60-630mm;60-800mm;100-1250mm;200-1400mm
- Max. Diameter：200-1600mm
- Pipe Wall Thickness：5-80mm
- Pipe Length：2000-12000mm
- Control Axies：2-5axies
- Bevel：Yes
- Applied to：Petroleum Pipeline, Press Vessel; Steel Structre
- Transport Package：Wooden Case and Pallet
- Specification：CE, CCC, ISO9001
- Trademark：TAYOR
- Origin：Shanghai, China
- HS Code：8456901000
- Production Capacity：400 Sets,Year
Description
2000-12000Cutting Speed (mm/min) 80-1800 Cutting Thickness(mm) Oxy-fuel:5-60mm, Plasma:1-25mm Plasma max beveling angle +/-45° Oxy-fuel max beveling angle +/-60° Basic components Pipe Chuck 3 jaws concentric chuck Cutting Mode Oxy-fuel and Plasma Number of Control Axes 2-6 Driving Motor Servo motot Available Plasma Power Hypertherm, Thermadyne, Kjellberg ,TAYOR LGK Other Data Operation language English or Chinese Power voltage 380V

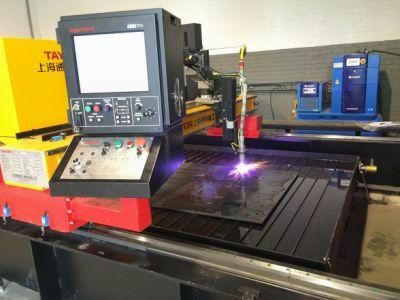

Cutting Sample

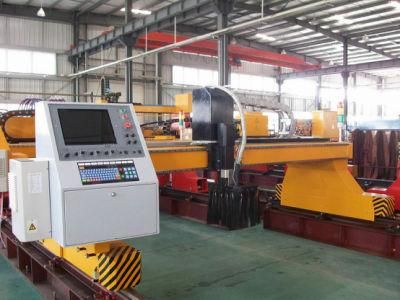

Workshop

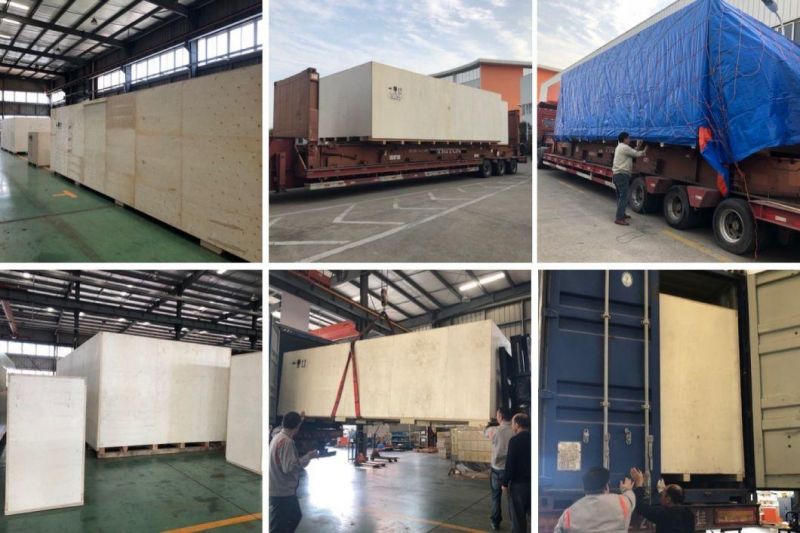

Packing and Delivery

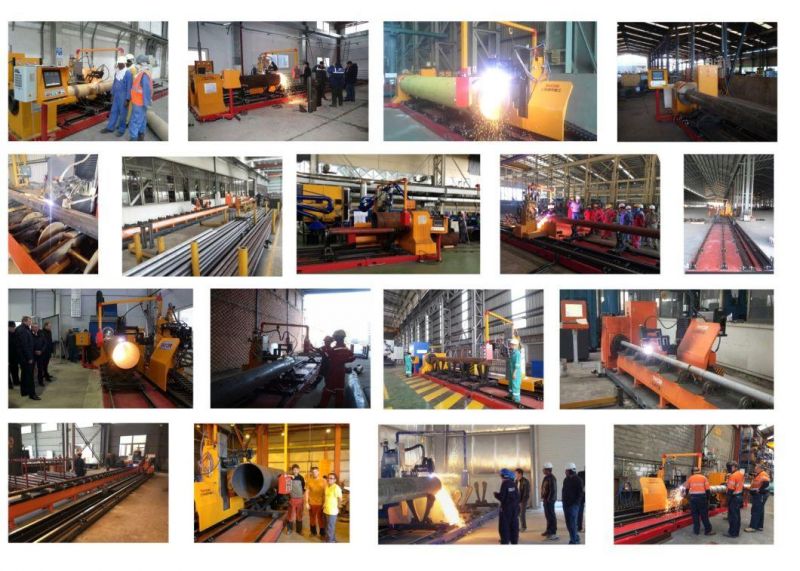

User's Site
Cutting Sample
Workshop
Packing and Delivery
User's Site
