• Model NO.：CY-PTL-HT-2-LD
• Power：600W
• Control Unit：LED Display
• Warranty：12 Months
• Transport Package：Wooden Box
• Specification：Max Substrate size 75mm x 75mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：340 Sets Per Month

Basic Info.

Model NO. CY-PTL-HT-2-LD Power 600W Control Unit LED Display Warranty 12 Months Transport Package Wooden Box Specification Max Substrate size 75mm x 75mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 340 Sets Per Month

Product Description

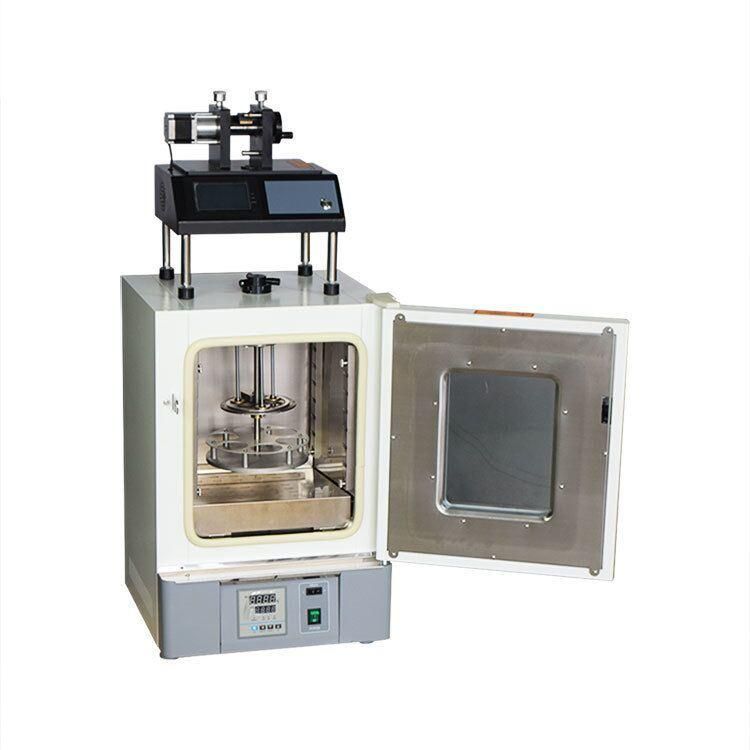

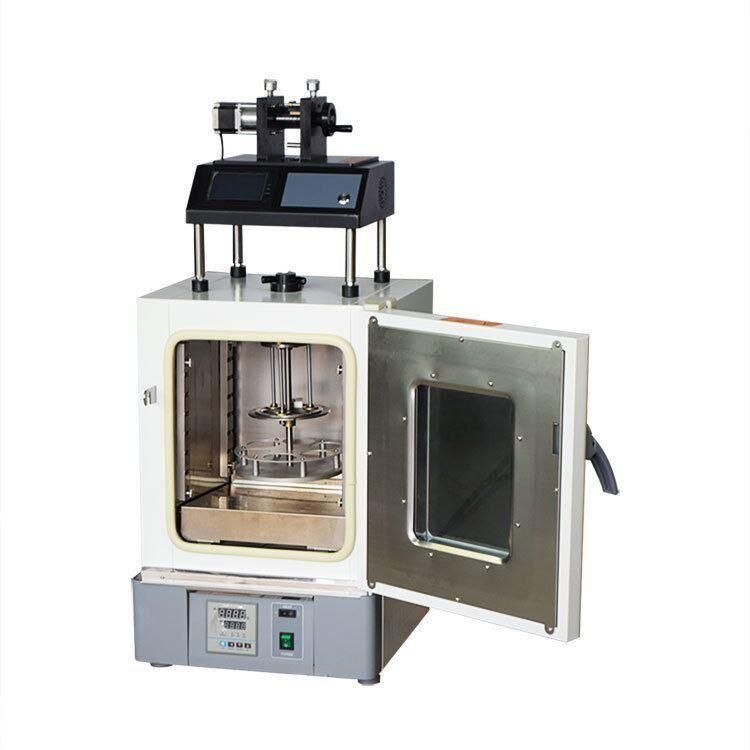

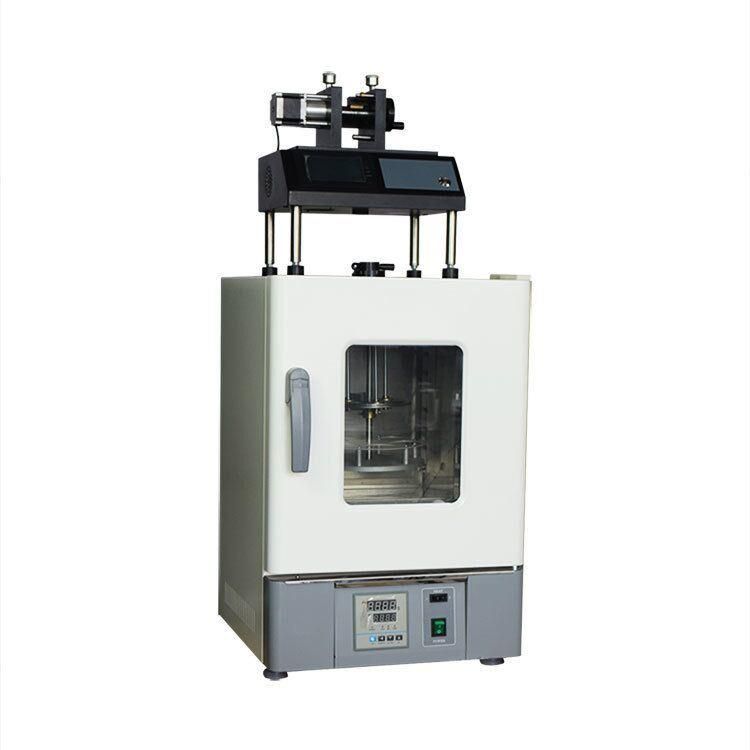

Table-Top Dip Coating Unit with Infrared Heater ( 2- 9000 micron/s, 200°C Max. )LD
Introduction

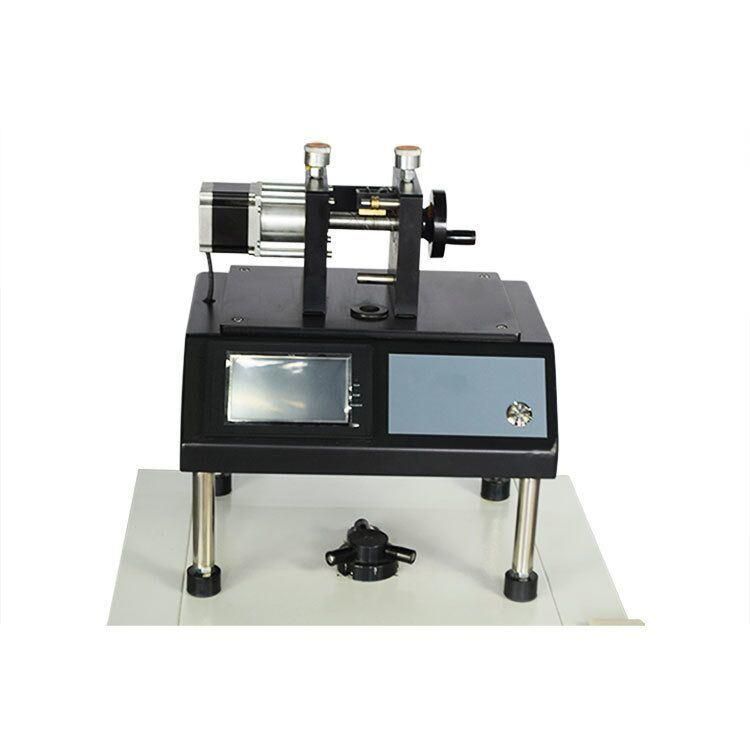

The Dip coating unit with an infrared dryer ( PTL-HT-2-LD) is designed to keep operator involvement as minimum as possible so that variables like speed, duration, etc. are maintained accurately by the microcontroller. Movements are achieved by a precision servo motor controlled linear stage that offers vibration and noise free operation. It helps to create a uniform coating on the substrate.

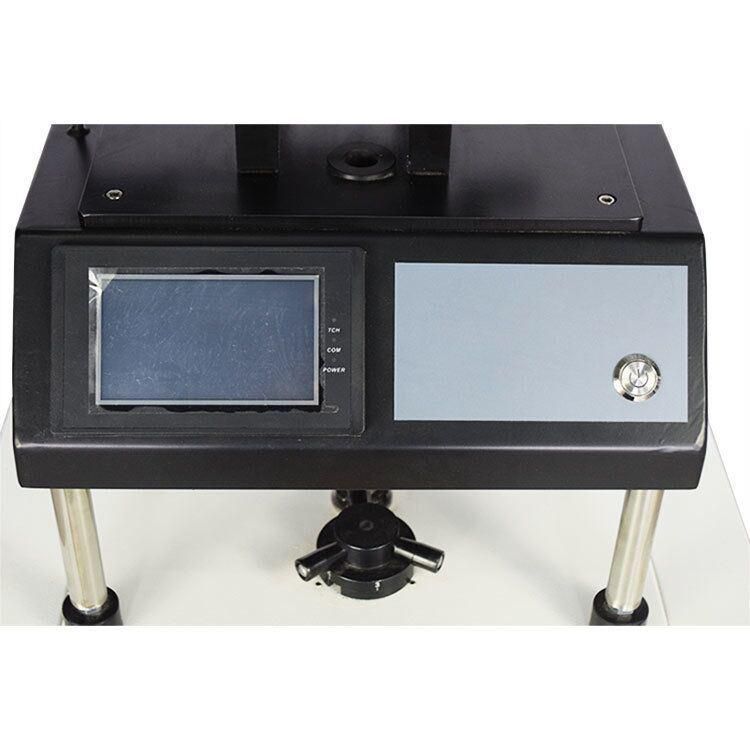

The dip coating unit with infrared dryer has both manual as well as PC mode. In manual mode, a user-friendly front panel with keyboard and LCD display is provided to enter all dipping and withdrawal parameters. As in PC mode, the entire unit can be controlled by user-friendly software. It is also possible to save programs for future use.
PTL-HT-2-LD Dip coating unit with infrared dryer has an infrared dryer incorporated with it, whose temperature can be set to a maximum of 200°C from ambient. This is meant for drying the substrate after the coating has been made. It has an infrared bulb inside.
Dip coating unit with infrared dryer is mainly used in physics, chemistry and biotechnology labs and corresponding research activities.
 Specification


Actuator	Servo motor
Drive mechanism	Lead screw
Speed control	Drawing speed adjustable from digital panel from  2 microns/sec  to 9000 micron/sec ( Max.)
Power Input	110V or 208-240VAC selectable, 50/ 60Hz 600 W max  ( with heater )
Stroke length max.	150mm
Max Substrate size	75mm x 75mm
Control Unit	Speed control via LED display with 5 programs memory Temperature control by PID digital controller with +/-1°C accuracy up to 200°C RS232 port for PC connection Operation software included
Product dimension	630 x 368 x 420 mm
Certificate	CE Certified
Warranty	One year limited with lifetime support
