• Model NO.：CY-1800X-SBC2-LD
• Heater：Tungsten
• Sample Stage：Dia.50mm
• Max.Coating Area：Dia.45mm
• Warranty：One Year
• Transport Package：Wooden Box
• Specification：Dia. 160x110mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：210 Sets,Month

Basic Info.

Model NO. CY-1800X-SBC2-LD Heater Tungsten Sample Stage Dia.50mm Max.Coating Area Dia.45mm Warranty One Year Transport Package Wooden Box Specification Dia. 160x110mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 210 Sets/Month

Product Description

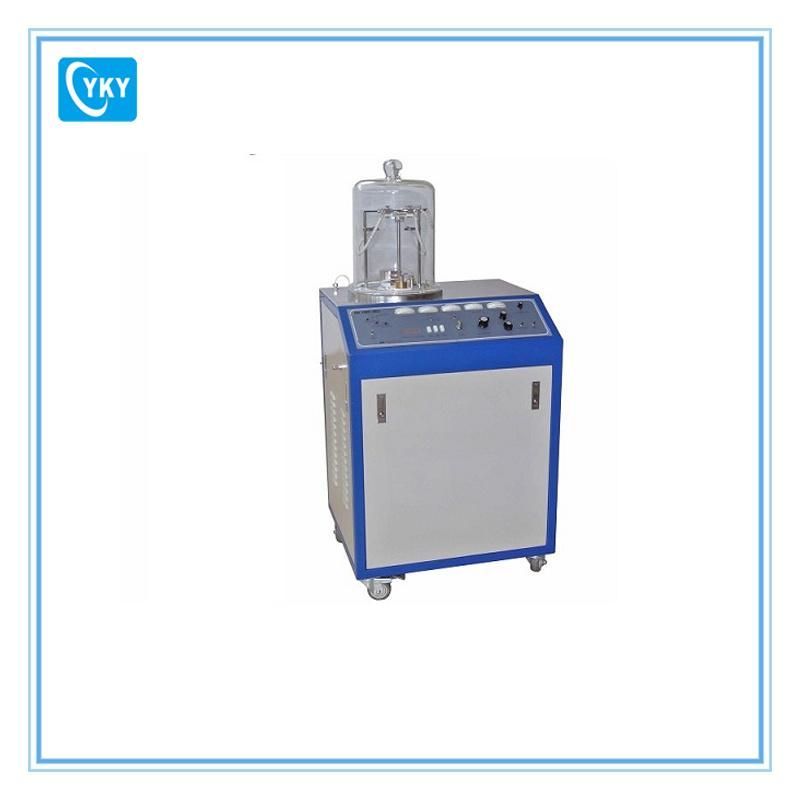

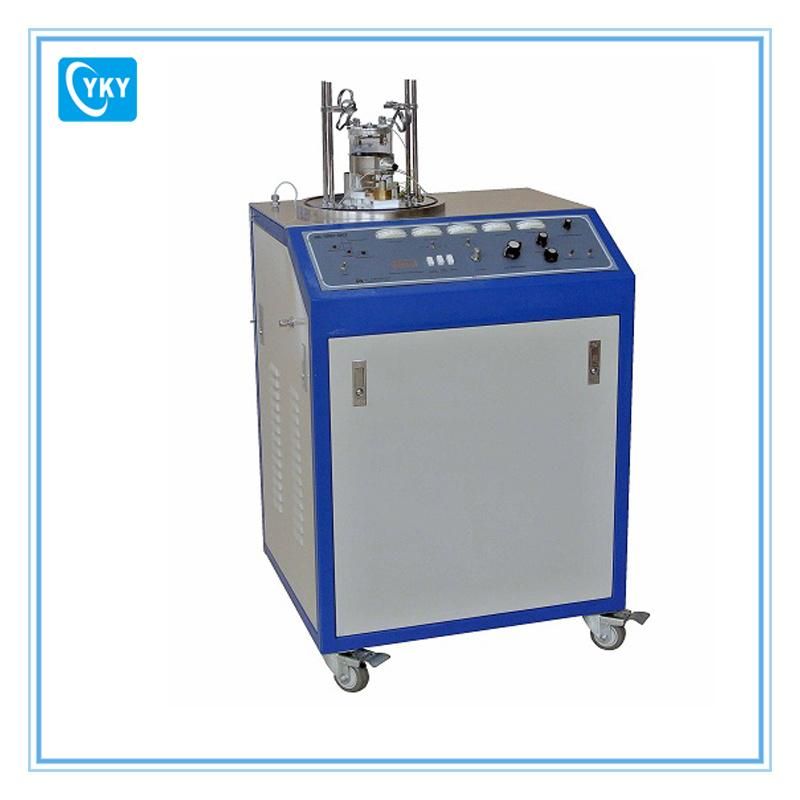

Multi-function Hi-Vacuum Coater: Plasma Sputtering + Evaporating + Carbon Coating - CY-1800X-SBC2-LD
Introduction
CY-1800X-SBC2 is a floor-stand Multi-Function Film Coater, which integrates thermal evaporating, carbon coating and plasma sputtering coating into one machine and it can provide the coating for almost every material, including metallic, semiconductive and insulating materials. It is an excellent and cost-effective coating machine for research labs.

 Technical Parameter


Input Voltage	208 - 240VAC, 10A, 50/60 Hz, single phase  ( < 2500W) (110V version is available upon request )
Input Power	< 2000W  (including pump)
Output Voltage (DC)	AC10V upto 100A Max. for thermal evaporation DC 3KV, 10mA for Plasma sputtering Power required:
Vacuum Chamber	Bell Jar made of pyrex glass 250mm Dia. x 340mm Height Two inner glass tubes are included for radiation blocking One is 88 mm ID x 140mm H for thermal evaporating  The other one is 88 mm ID x 57mm H for plasma sputtering One stainless steel mesh enclosure is included for blocking light radiation during thermal evaporation
Turbo Vacuum Pump	High-speed turbo vacuum pump system is installed bottom of the coater Vacuum speed:  600L/S Vacuum level:  10e-6 torr Environmental working temperature:  < 32°C
Coating Source Assembling	Three sets of coating source assembling are included. Dual heating station for thermal evaporating Can evaporate two kinds of materials in same time. Max. temperature can reach 1800ºC  to evaporate almost all kinds of materials.  Tungsten wire resistance heaters are included for immediate use. Spare Tungsten heater is available  One set for carbon coating Assembling two carbon rods are included for immediate use One set for DC plasma sputtering One gold target  ( 38mm Dia x 0.12 mm thickness) is included
Control Panel	Control Panel allows you choose coating method and adjust sputtering current and evaporation power
Gas atmosphere	One needle valve installed to allow Ar gas flow to achieve better plasma coating
Overall Dimensions	L800mm× W560mm× H1340mm
Net Weight	150 kg
