• Model NO.：CY-1700X
• Specimen Holder：Dia.50mm
• Vacuum Port：Kf40
• Gas Inlet：1,4 Nps
• Warranty：One Year
• Transport Package：Wooden Box
• Specification：Quartz chamber OD. 150mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：310 Sets Per Month

Basic Info.

Model NO. CY-1700X Specimen Holder Dia.50mm Vacuum Port Kf40 Gas Inlet 1/4 Nps Warranty One Year Transport Package Wooden Box Specification Quartz chamber OD. 150mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 310 Sets Per Month

Product Description

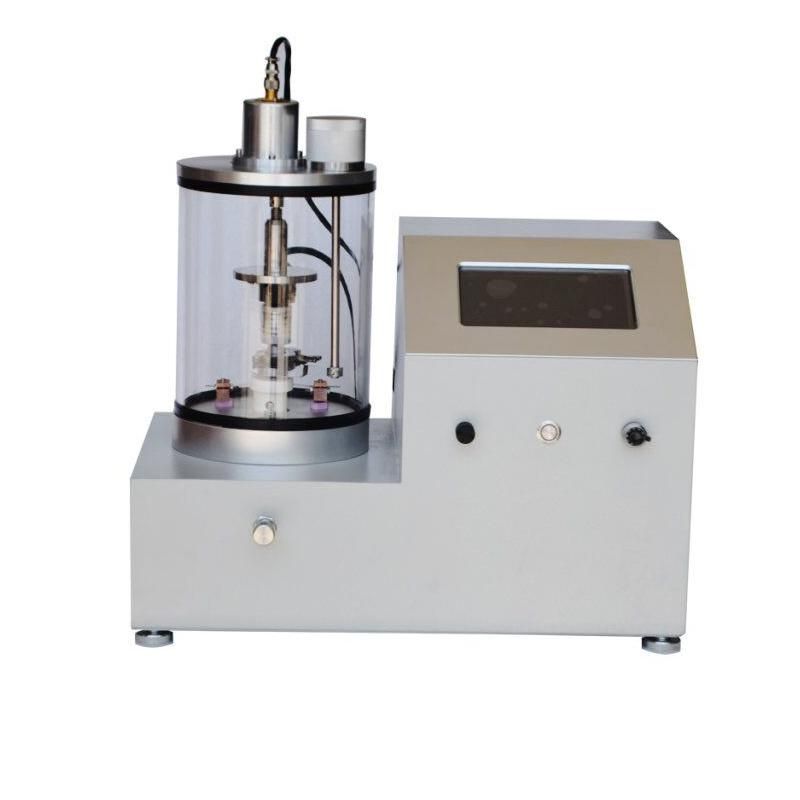

Precision Temperature Controlled Hi-Vacuum Thermal Evaporating Coater - CY-1700X-SPC-2
Introduction
CY-1700X-SPC-2 is a compact thermal evaporating coater with precision and programmable temperature control ,  which is suitable for coating most of metallic and organic materials film to sample upto 2" wafer fron 200ºC to 1500ºC ( or 100oC - 1700oC)  by temperature controlled automatically and upto 2  The a rotatable sample holder is built in to allow more uniform film coating.
 Specification

Structure & Features	6"OD Quartz chamber for easy cleaning and sample loading 2" Dia rotable sample holder for uniform film coating Two heaters are included, e.g. Alumina and Tungsten heaters for both low or high temperature coating upto 1700ºC Precision temperature control with 30 segment programmable and +/- 1C accuracy High vacuum can be achieved upto 10E-5 torr via optional turbo pump Gas flow port and valve are built in for CVD possibility
Input Power	Input Voltage:  AC 208 - 220V 50/60Hz , single phase, 50/60Hz 500 W with max. 30A current Power cable included without plug

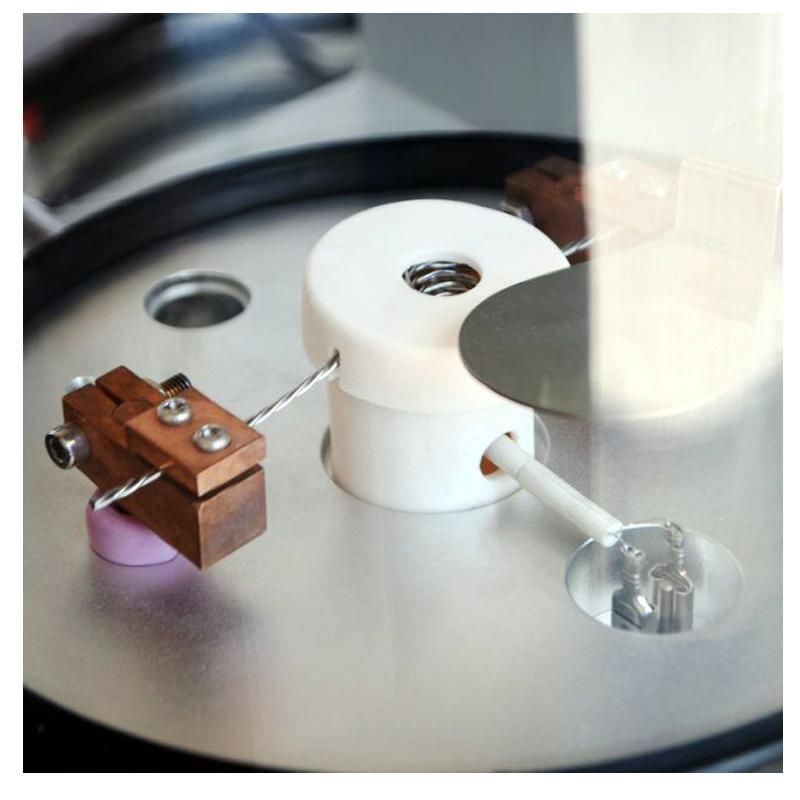

Temperature Control  &  Heaters	Tungsten Heater with a thermal couple is built in bottom of alumina crucible for temperature controlled (PIC. Standard S type Thermal Couple:   --   heating from 200ºC - 1500ºC Optional B type  Thermal Couple - heating from 1200ºC - 1700ºC One digital temperature controller with 30 segment programmable and +/- 1ºC accuracy Temperature also can be switched to manual mode without thermalcouple and thermal installation for faster coating upto 2000ºC , such as Carbon coating Two Tungsten coil heaters are included.Spare heater is available upon request at extra cost.

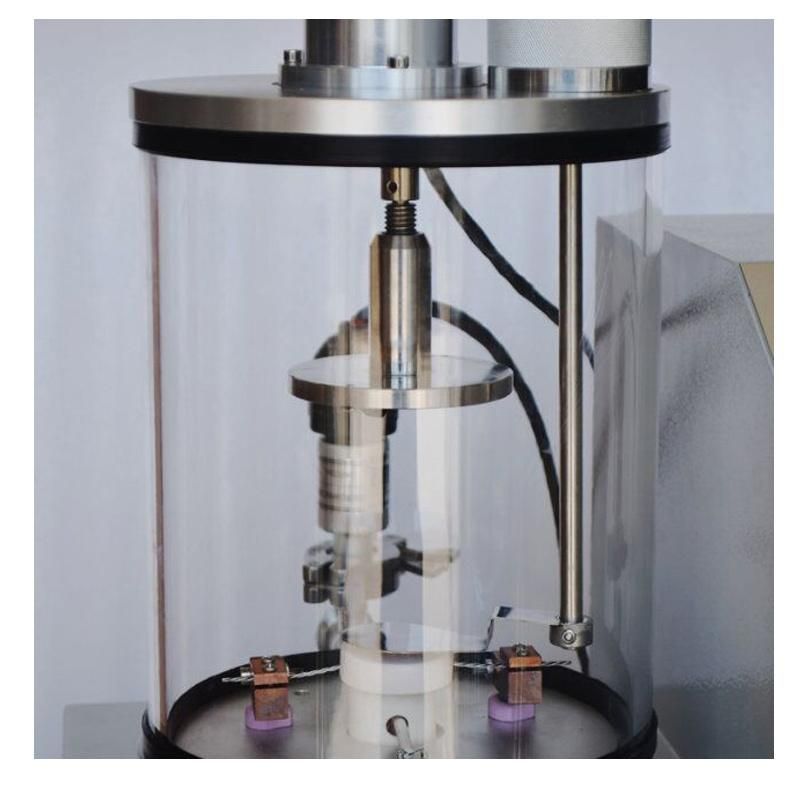

Specimen Holder	One 50 mm Dia.rotable sample stage is installed on top of coater Rotating speed 5 rpm The distance between sample holder  to evaporation source is adjustable from 60mm to 100 mm
Vacuum	KF40 vacuum port is installed to connect a vacuum pump One Anti-Corrosive Capacitance Diaphragm Gauge is included to measure vacuum upto 10E-6 torr
Gas Inlet	1/4 NPS gas inlet port is built in for inert gas cleaning  or forming gas processing One needle valve is built in to control gas flowing rate
Optional	Vacuum pump is required for coating ( not included ). Double Stage Rotary Vane Vacuum Pump with Vapor trap eliminates the oil mist, which can reach vacuum upto 10-2 torr for evaporating noble metallic materials , such as Gold, silver Compact Turbo-molecular Vacuum Pump System (up to 1E-7 mbar) is able to provide vacuum level up to 1.05 x 10^-5 for evaporating oxygen sensitive materials, such as Al. Mg, Li etc
Compliance and Warranty	CE certified
