• Model NO.：CO, BV
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Capacity：280-460PCS Min
• Key Word 1：Nail Machine
• Key Word 2：Nail Equipment
• Key Word 3：Nail Making Machine
• Transport Package：Wooden Cases
• Specification：ce co ccc
• Trademark：WSDZ
• Origin：Henan
• HS Code：84552290
• Production Capacity：280-460PCS Min

Basic Info.

Model NO. CO, BV Customized Customized Advantage Use Widely Condition New Capacity 280-460PCSMin Key Word 1 Nail Machine Key Word 2 Nail Equipment Key Word 3 Nail Making Machine Transport Package Wooden Cases Specification ce co ccc Trademark WSDZ Origin Henan HS Code 84552290 Production Capacity 280-460PCSMin

Product Description

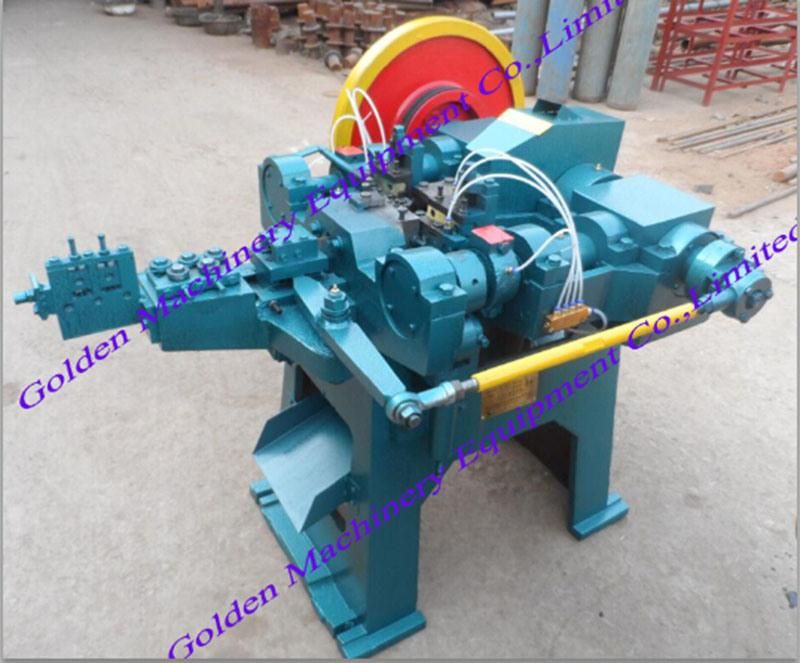

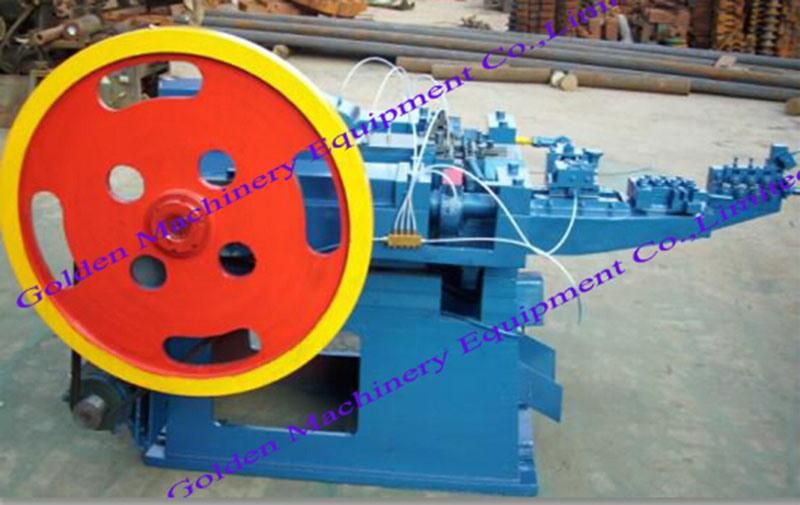

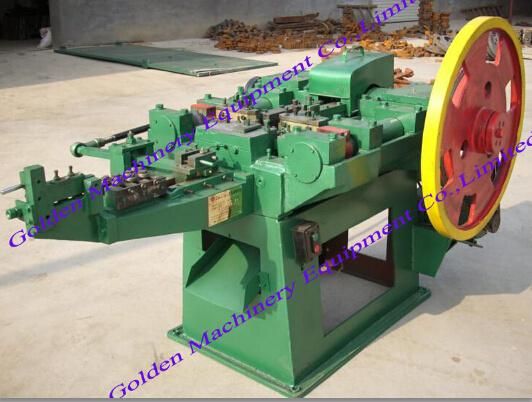

1-7 inch Automatic wire Steel Nail Making Machine

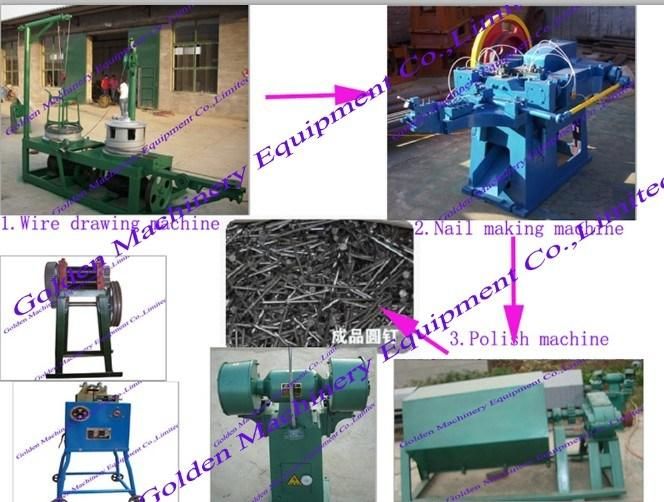

We have the full line of nail making machine, including wire drawing machine, nail making machine, polishing machine, printer machine, knive shappen machine and so on.

Features

This new type machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high size accurancy, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nails used for high speed coil collator and coil nailers.

Introduction


1 .Both of the scrap iron wire and the new steel rod can be used to make nails.

2 .This nails machine can feed the materials automatically.

3 .This nails machine has the features of high speed, low noise, less impact.

4. All the main components are made of quality steel, such as shaft, cams and gear.

5. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the nails cap will be round, every nail will be perfect. Steel nail making machine


Data/ model	WSDZ-4C	WSDZ-3C	WSDZ-2.8 C	WSDZ-1.6C
Max dia of nail	4.5 mm	3.1 mm	2.8 mm	1.6 mm
Min dia of nail	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max length of nail	150 mm	75 mm	50 mm	25 mm
Capacity	280 pcs/mm	300 pcs/mm	320 pcs/mm	460 pcs/mm
Motor	4 kw	3kw	2.2 kw	1.5 kw
Weight	2000 kg	1800 kg	1450 kg	1200 kg
Size mm	2200*1600*1650	2000*1400*1400	1700*1300*1400	1500*1300*1200

 If you want  more pictures,working video about our machine,send me inquiry without any hesitation.
i will reply you once I get your inquiry.
Best regards.
susan
