C&Z Purlin Interchangeable Building Material Forming Machine by Gearbox and Shaft for Each Station

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type:Rolling Machine
  • Forging Forming Method:Mold Forging
  • Power Source:Hydraulic Pressure
  • Feature:High Efficiency
  • Certification:ISO9001, CE
  • Warranty:12 Months

Base Info

  • Model NO.:YX80-320
  • Customized:Customized
  • Advantage:Use Widely
  • Condition:New
  • Color:Blue and Yellow
  • Drive Way:by Gear Box
  • Transport Package:Sea Packing
  • Specification:CE SGS
  • Trademark:SAIBO
  • Origin:China
  • HS Code:84552210
  • Production Capacity:300set,Year

Description

Basic Info.

Model NO. YX80-320 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Drive Way by Gear Box Transport Package Sea Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/Year

Product Description

1.Production Characteristic and use:
This kind of machine can produce C, Z two profiles, through the exchange side of the roller up and down position to achieve C, Z purlin conversion, just need about half an hour to achieve saving time; This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins of the width with high precision, but also save time to increase production

2.Main Technical Specification:
Thickness: 1.5mm-3.0mm
Speed: 15m/min
Roll station: 18 stations (7 station for straighten)
Main power: 19KW
Hydraulic power: 5.5KW
Control system: PLC Panasonic
Drive: By gearbox and shaft for each station
Automaticity: Semi-automatic / automatic

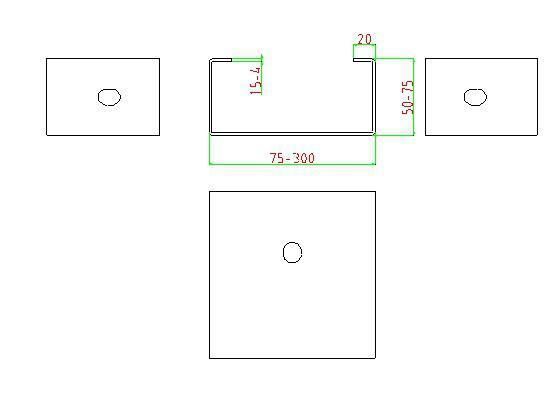

3. Profile
C&Z Purlin Interchangeable Building Material Forming Machine by Gearbox and Shaft for Each Station

4. Packing & Delivery
  1. Deliver time: take goods after receive deposit 60 days
  2. Packing: suitable of ocean transportation
5. Warranty
  1. Warranty: 1 year warranty from date of shipment
  2. Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
