• Model NO.：HKY-furring channel roll foriming machine
• Transport Package：Plastic Film Cover
• Specification：as per your drawing
• Trademark：HKY
• Origin：China
• HS Code：84748010
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. HKY-furring channel roll foriming machine Transport Package Plastic Film Cover Specification as per your drawing Trademark HKY Origin China HS Code 84748010 Production Capacity 500 Sets/Year

Product Description

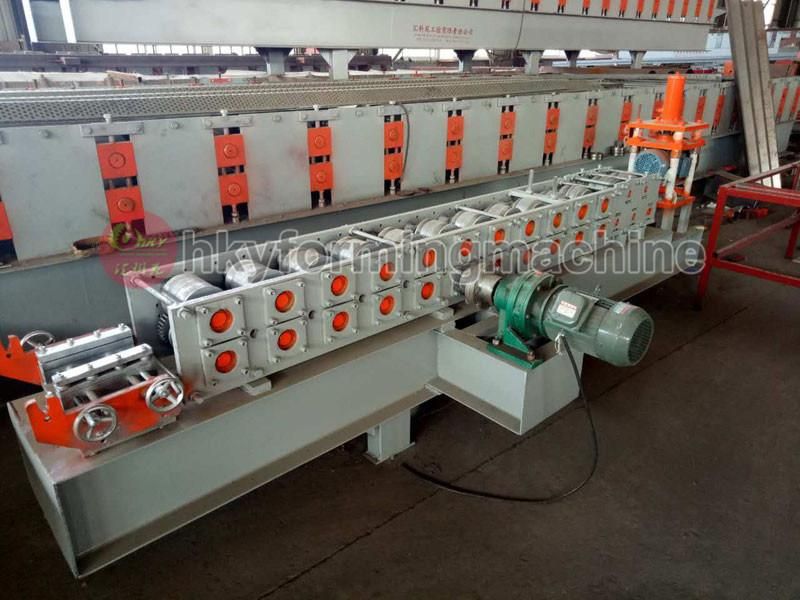

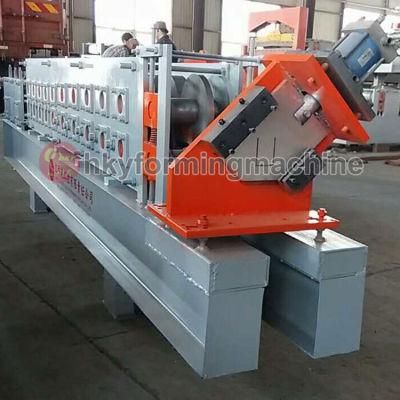

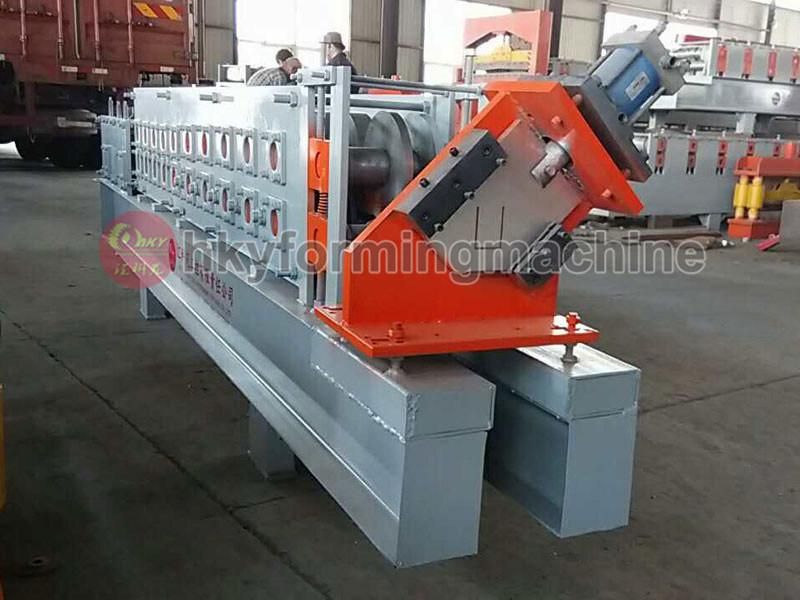

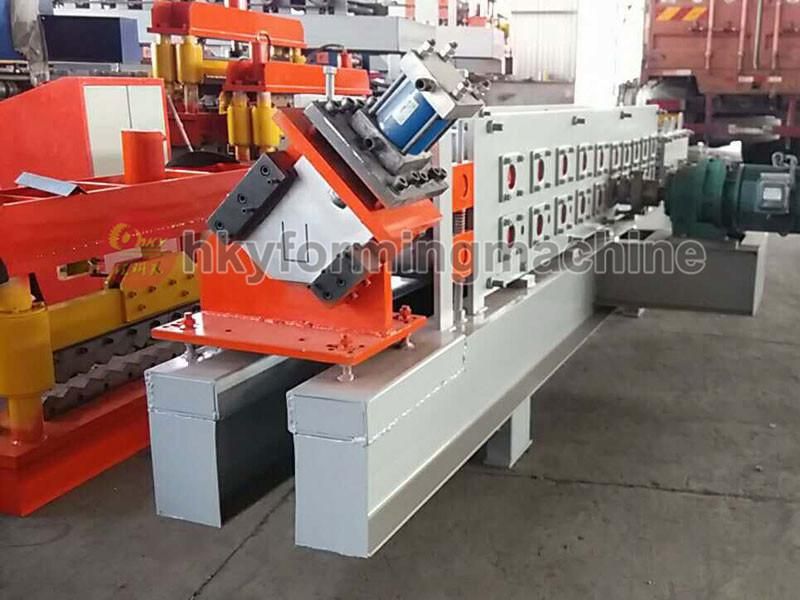

Furring channel roll forming machine

Other name: Ceiling grid roll forming machine, Stud and track forming machine, light keel roll forming machine, channel forming machine, omega profile forming machine,

Profile Shape: C shape, U shape, L shape, Omega Shape.
.






Components of Metal Furring Channel Roll Forming Machine

1. Decoiler
2. Leveling device
3. Main Forming System

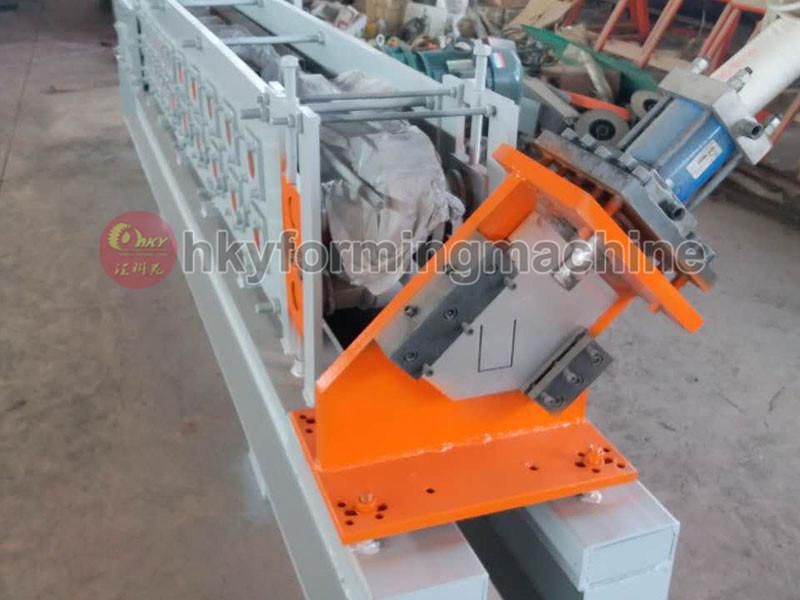

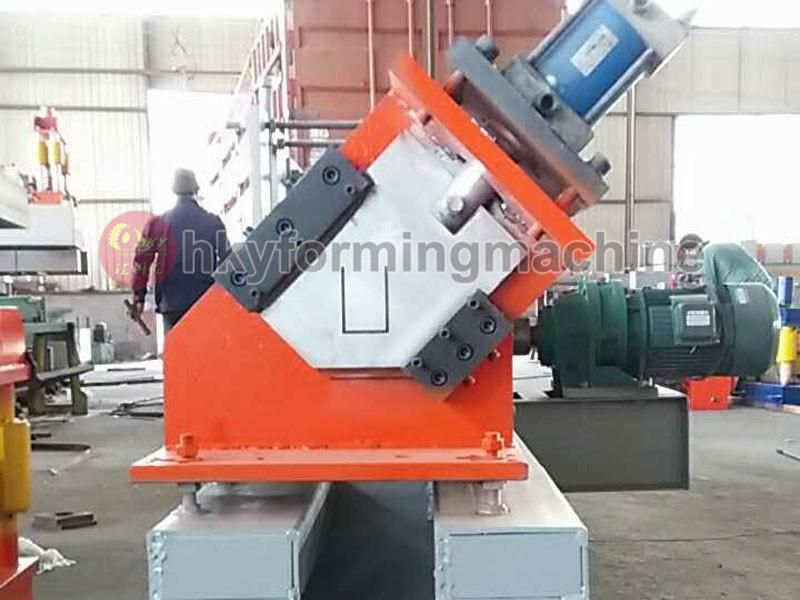

4. Hydraulic Cutting Device (Punching device is available if you need)
5. Run-out Table
6. Electrical and Controlling system

Technical Parameters of metal furring channel roll forming machine:

1. Feeding Machine

1). Inner Diameter: 400mm-600mm
2). The largest width: 600mm
3). Capacity: 2500kg
4). Manual with brake


2. Leveling device

1)Ensure the material level and straight
2)The width can be adjusted.


3. Main Forming System

1) width: As per drawing
2)Height: As per drawing
3)Thickness of sheet: 0.2-1.2mm
4)Material: GI sheet coil or cold rolled coil or Aluminium
5)Roller stations: 10 rows
6)Material of Roller: GCr12mov
7)Surface of Roller: Heat treatment HRC58-60
8)Diameter of main shaft: 60mm #45 steel, heat treat modulation
9)Power of main motor: 5.5kw
10)Forming Speed: 0-50m/minute
11)Transmission: By gear
12)Bearing: Spherical
13)Safety Hood: Cage
14)Arch middle plate: 30mm thickness



4. Cutting device

1)Oil pump station 1set
2)Motor power of Oil pump station: 4kw with cooling system
3)Forced air cooling device available
4)Cutting mould: 1set
5)Material of blade: CR12 with heat treatment HRC60-62
6)Cutting way: Tracking (flying)

5. Run-out Table

1)Frame: 8# steel groove welded
2)Length: 4mx1m
3)Quantity: 1 pc

6. Electrical System

1)PLC and HMI touch Screen (Taiwan Delta or Siemens)
2)Automatic length measurement
3)Automatic quantity measurement
4)Length measurement: Rotary Encoder
5)Over current protection for control system, aviation plugs
6)Power: 380V 50Hz (as per local requirement)


Advantage of our stud and track forming machines

High quality

Lower cost

Durableness

High efficiency

Reliable working

Low failure rate

Low energy consumption

Trouble free after sales service
