• Model NO.：ESR-1300X1.5E ESR-1020X2 ESR-1.5X1300 ESR-2.5X1300
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Max Rolling Thickness：1.5,2.0,2.5,3.0,3.5,4.5mm
• Max Rolling Width (mm)：1300~2070mm
• Dia.of Roller：75~150mm
• Motor Power：0.75~4kw
• Brand：Uni-Tech
• Item：Electric Roll Bending Machine
• Color：Blue, Red
• Roller：Fired or Not
• Function：Conical Bending
• with：Foot Switch
• Transport Package：Wooden Case, No Need Fumigation, Plastic Cover
• Specification：4.5X1300, 2.5X1300
• Trademark：UNI-TECH
• Origin：China
• HS Code：84622990
• Production Capacity：500sets,Month

Basic Info.

Model NO. ESR-1300X1.5E ESR-1020X2 ESR-1.5X1300 ESR-2.5X1300 Customized Customized Advantage Easy to Maintenance Condition New Max Rolling Thickness 1.5,2.0,2.5,3.0,3.5,4.5mm Max Rolling Width (mm) 1300~2070mm Dia.of Roller 75~150mm Motor Power 0.75~4kw Brand Uni-Tech Item Electric Roll Bending Machine Color Blue, Red Roller Fired or Not Function Conical Bending with Foot Switch Transport Package Wooden Case, No Need Fumigation, Plastic Cover Specification 4.5X1300, 2.5X1300 Trademark UNI-TECH Origin China HS Code 84622990 Production Capacity 500sets/Month

Product Description

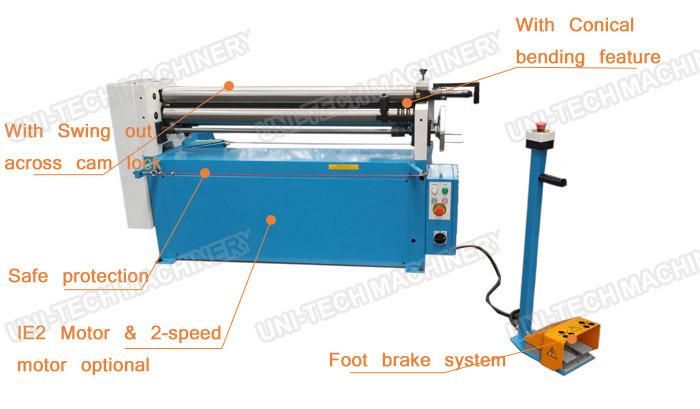

Electric Slip Rolling Machine
Features:
1. Asymmetrical roll bending machine with 3rolls
2. High strength steel rolls
3. Fixed top roller, adjustable lower and rear rollers
4. Standard series wire core groove
5. Top roll swings out across cam lock
6. Supplied with conical bending feature


Notice:
Before connecting machine into local 3-phase ac source at your plant, please
Double check same voltage and phase.
· Connect the ac source with machine cable which has 4 wires, correctly, the ground
Wire must to be connected with ground.
· After connecting ac source to shaft motor rotation is in the correct rotation direction
As per the arrow on the motor.
· If wrong direction, please immediately stop motor to avoid motor damage. Please
Correct your connecting at ac source until motor rotation direction is in correct
Direction.

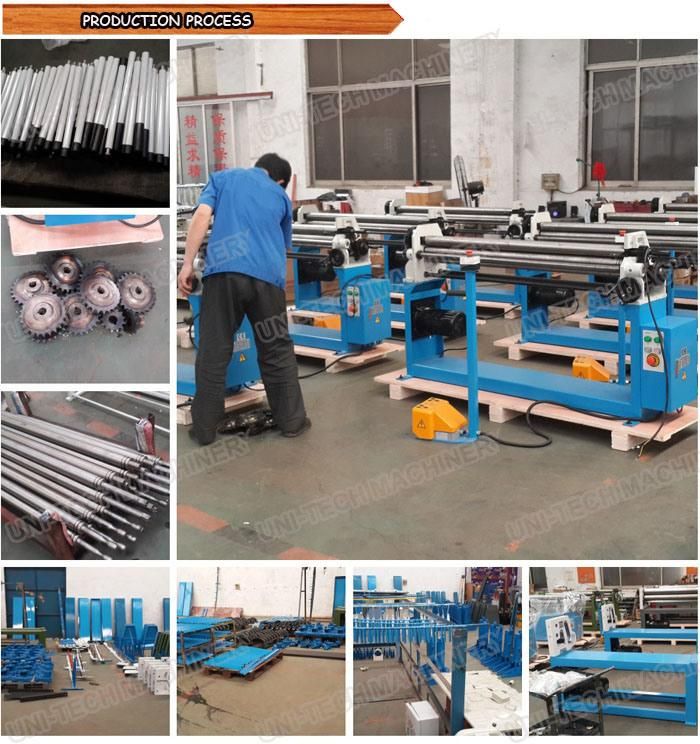

Production process Electric Slip Rolling Machine (ESR Series):

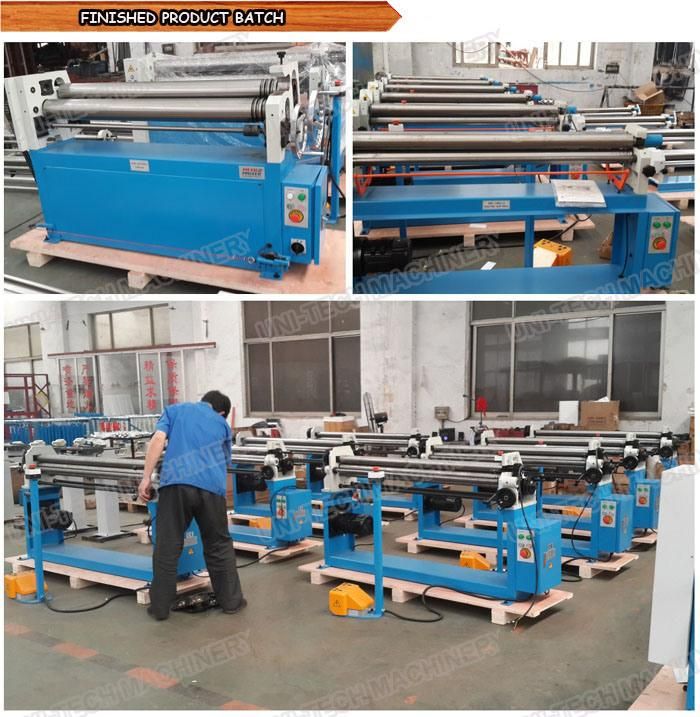

Finished machines Electric Slip Rolling Machine (ESR Series) in workshops:



Model	Max rolling thickness (mm)	Max rolling width (mm)	Dia.of roll(mm)	Motor power (kw)	Packing size(cm)	N.W./G.W.(kg)
ESR-1300X1.5	1.5	1300	75	0.75	0.75	280/340
ESR-1020X2	2	1020	60	1.5	174X70X126	260/325
ESR-1300X1.5E	1.5	1300	60	1.5	190X55X110	270/340
ESR-2.5X1300	2.5	1300	90	1.5	200X72X120	540/560
ESR-4.5X1300	4.5	1300	120	2.2	200X76X127	750/830
ESR-3.5X1550	3.5	1550	120	2.2	200X76X127	790/890
ESR-3.5X2020	3.5	2020	127	4	270X87X130	1100/1200
ESR-1300X6.5	6.5	1300	150	3	282X87X134	1100/1190
ESR-2070X2.5	2.5	2070	120	2.2	282X87X130	1050/1200
ESR-2070X3.5	3.5	2070	127	3	282X87X130	1110/1250
