• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Cutter Material ：Cr12 Mould Steel
• Shaft for Rollers ：72mm
• PLC：Mitsubishi
• Transport Package：1x40gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

                      Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 25-30Output speed(m/min)About 20-25Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.7 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set

1. Our strength

With Zhongyuan products you save time and money!
Zhongyuan is a "All-in-house source"

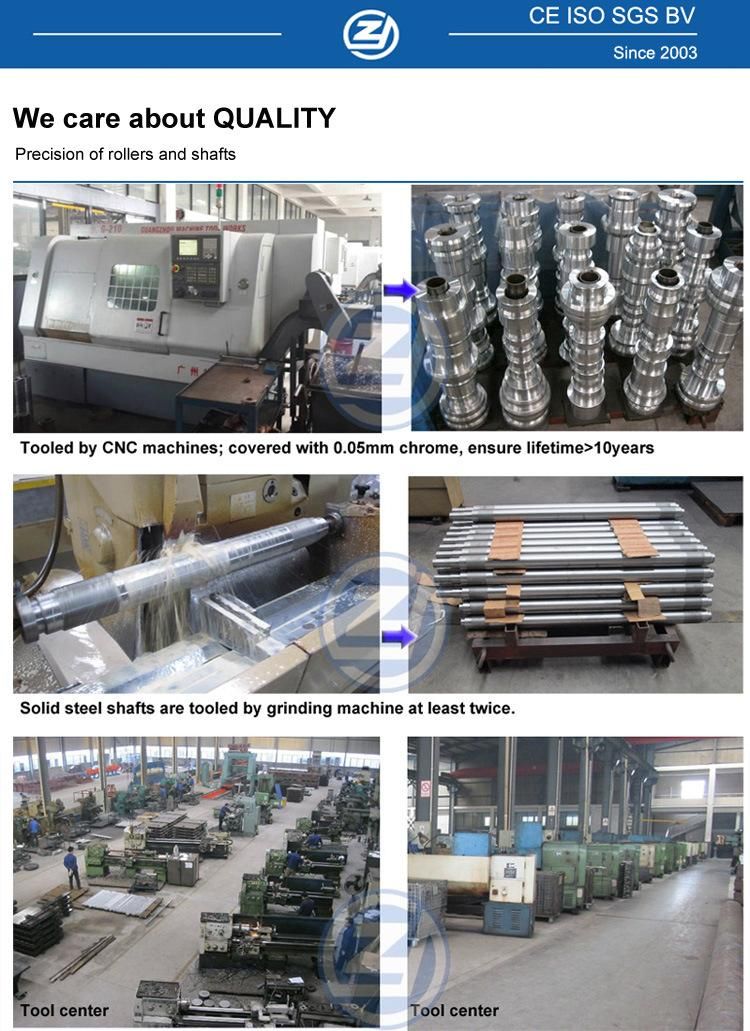

--from raw material to the final high-precision forming machine. We have our precise tooling center.
When roll forming machine must be delivered immediately, depending on customer`s features, we can manufacture and deliver machine in only 5-8 weeks.

You can rely on our team!
The dedicated staff at Zhongyuan is our key to success.
We have engineers with experience more than 15 years in metal forming industry.
Employees and their development are of fundamental importance to Zhongyuan.

Quality by Zhongyaun
Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.
Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.

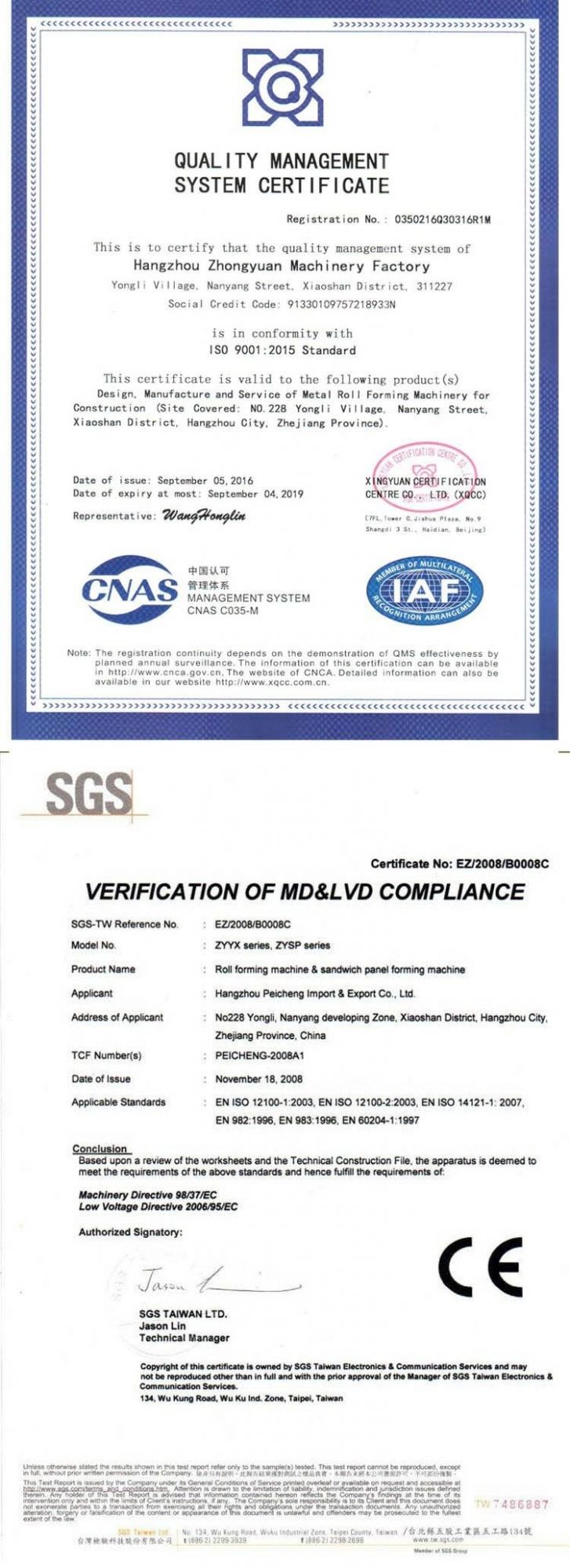

2. Certificate

CE; ISO; SONCAP






3. The third party inspection: SGS, BV
