• Model NO.：ZYYX
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Certificate：CE
• Machine Size：9*1.6*1.6m
• Machine Weight：12tons
• Forming Speed：15-20m,Min
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Cutter Material：Cr12 Mould Steel with Quench Treatment
• Cutting Style：Automatic Cut to Length
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Cotrol System：Mitsubishi PLC & Converter
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.8Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 9*1.6*1.6m
(Depend on final design)

Decoiler
(manual/ hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1.5m/ pc, 2 pcs
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

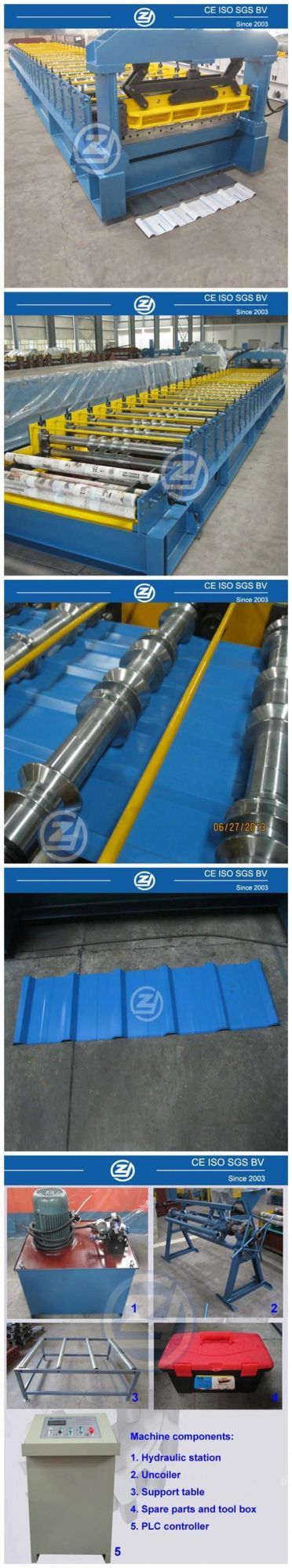

Machine overview


Why us?





About usWe are professional in making roll forming machines since 2003. 1.  Capacity: 12-15 sets/month 2.  Delivery: in only 5-8 weeks for urgent order 3.  Have our own tool center. 12 sets CNC machines.4. Zhongyuan is a "All-in-house source"     --from raw material to the final high-precision forming machine. We have our precise tooling center.5.  You can rely on our team!       We have engineers with experience more than 15 years in metal forming industry.  Get Free:Provide profile drawing & design technical support FOR FREE!
