• Model NO.：1300X1mm
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Blue and Yellow
• Machine Name：Simple Slitting Machine
• Thickness：1.0mm
• Coil Width：1300mm
• Transport Package：No Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：1000sets,Year

Basic Info.

Model NO. 1300X1mm Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Machine Name Simple Slitting Machine Thickness 1.0mm Coil Width 1300mm Transport Package No Packing Specification CE SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 1000sets/Year

Product Description

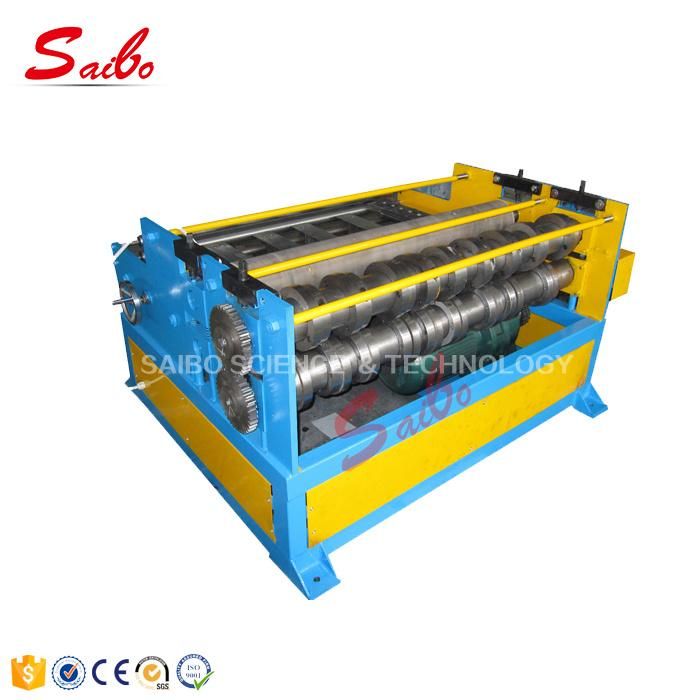

Simple slitting machine
1. Brief introduction: A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1. Roll forming size1mmx1300mm
2. Working speed15m/min
3. Slitting group1 group
4. Material of roller45# forge steel, finish machining and plated with hard chromium, DIA: 80mm
5. Material of diskCr12 # finish machining and quenching until HRC5862
6. Main power1.5Kw
7. Outside measurement2000x1600x1000mm
8. Max slitting thickness: 0.31mm (0.8mm is better)
9. Driving mode: Chain driving
10. Slitting mode: Disk cutting
11: The machine have 5 cutters

2. Packing & Delivery

1. Deliver time: take goods after receive deposit 60 days
2. Packing: suitable of ocean transportation

3. Warranty

1. Warranty: 1 year warranty from date of shipment
2. Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

4. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
