Automatic Steel Door Shutter Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：CE
  • Warranty：12 Months

Base Info

  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Name：Door Shutter Roll Forming Machine
  • Transport Package：No Packing
  • Specification：CE, SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Specification of the material1
 Suitable MaterialGalvanized steel up to 235Mpa2
 Width of the raw materialAccording the profile3Thickness1.2mmMachine Detailed Parameters:
1Machine structureWire-electrode cutting structure
2Total powerMotor power-7.5kw
Hydraulic power-4kw
3Roller stationsAbout 14 stations + one station for rectify (according the final design)
4Productivity0-15m/min
5Drive systemBy 1.2 inch single chain
6Diameter of shaft¢65mm solid shaft
7
 		Voltage380V 50Hz 3phases (Customized)
8
 		Container need1x20GP container

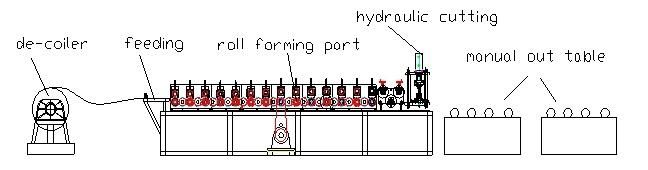

3. The Chart of Process Flow
Automatic Steel Door Shutter Roll Forming Machine
4. Packing & Delivery
  1. Deliver time: take goods after receive deposit 60 days
  2. Packing: suitable of ocean transportation
5. Warranty
  1. Warranty: 1 year warranty from date of shipment
  2. Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
