• Model NO.：LW
• Max.Inlet Wire Dia.：6.5mm
• Block Dia.：560mm
• Max. Number of Block：10
• Certification：ISO
• Condition：New
• Transport Package：Suitble for Shipping
• Specification：1700*1150*1750mm
• Trademark：Shenyida
• Origin：Wuxi, China
• HS Code：84633000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. LW Max.Inlet Wire Dia. 6.5mm Block Dia. 560mm Max. Number of Block 10 Certification ISO Condition New Transport Package Suitble for Shipping Specification 1700*1150*1750mm Trademark Shenyida Origin Wuxi, China HS Code 84633000 Production Capacity 100PCS/Month

Product Description

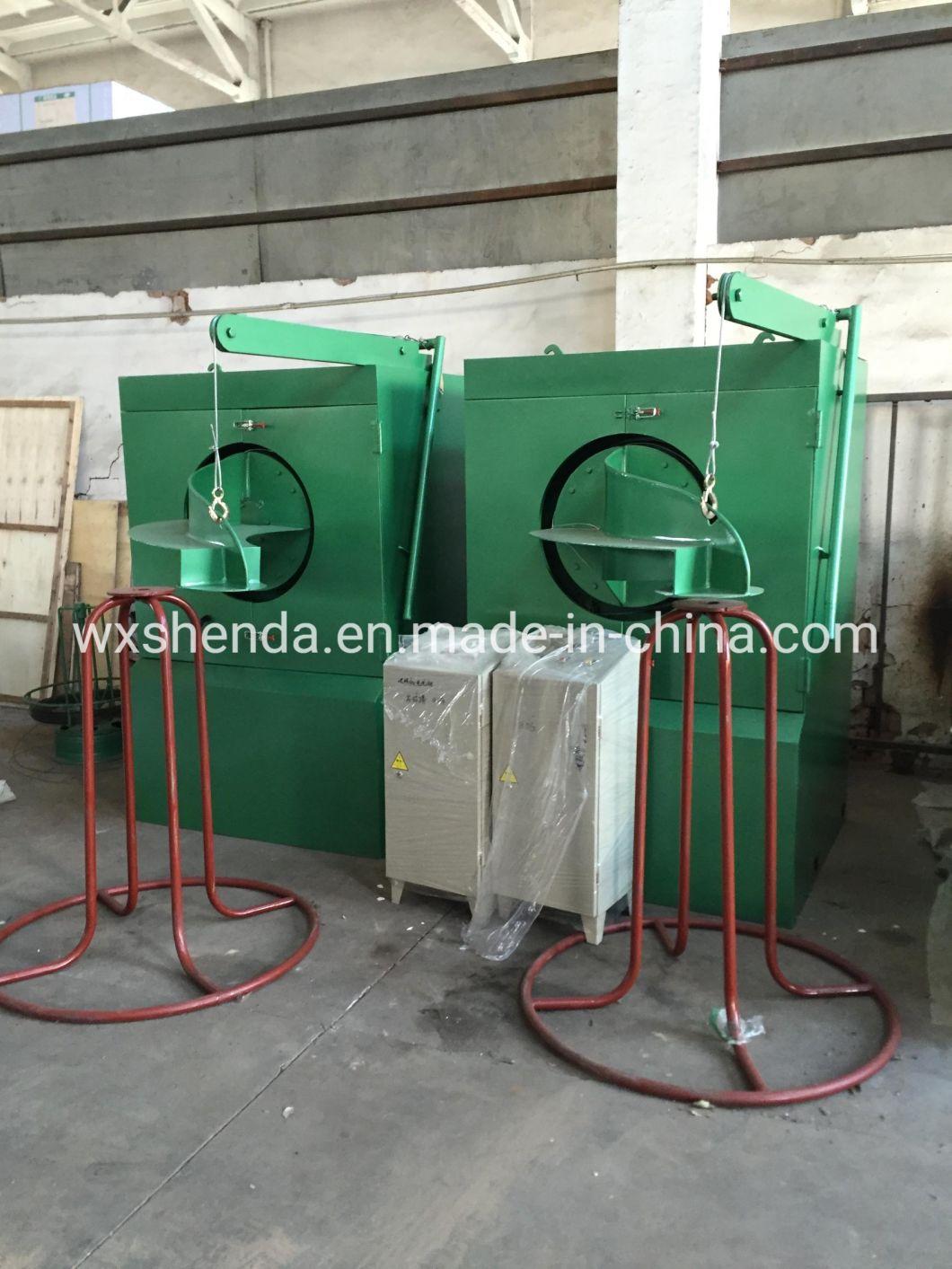

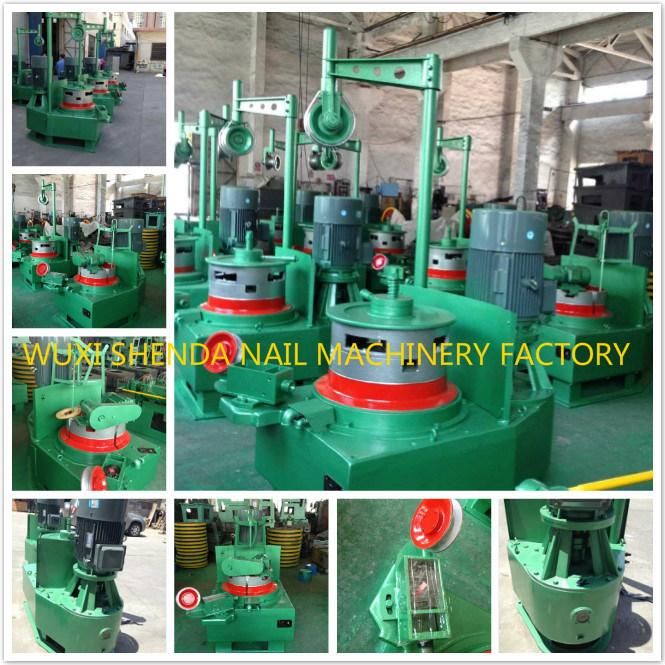

Wire drawing machine/Steel wire drawing quipment/Polly type wire drawing machine

Our factory start from 1995,professional in producing Nail making machine,Wire drawing machine ,thread rolling machine,  coil welding machine and accessory equipment.

One Stop service for nail&wire project from design to install.
With us ,you can same more time to learn all detail for NAIL&WIRE making project

The Ideal equipment used for high- medium- low carbon steel, copper, aluminum and so on.
Featured with continue drawing, dry drawing, electrical control, safe to operate and long time use life.

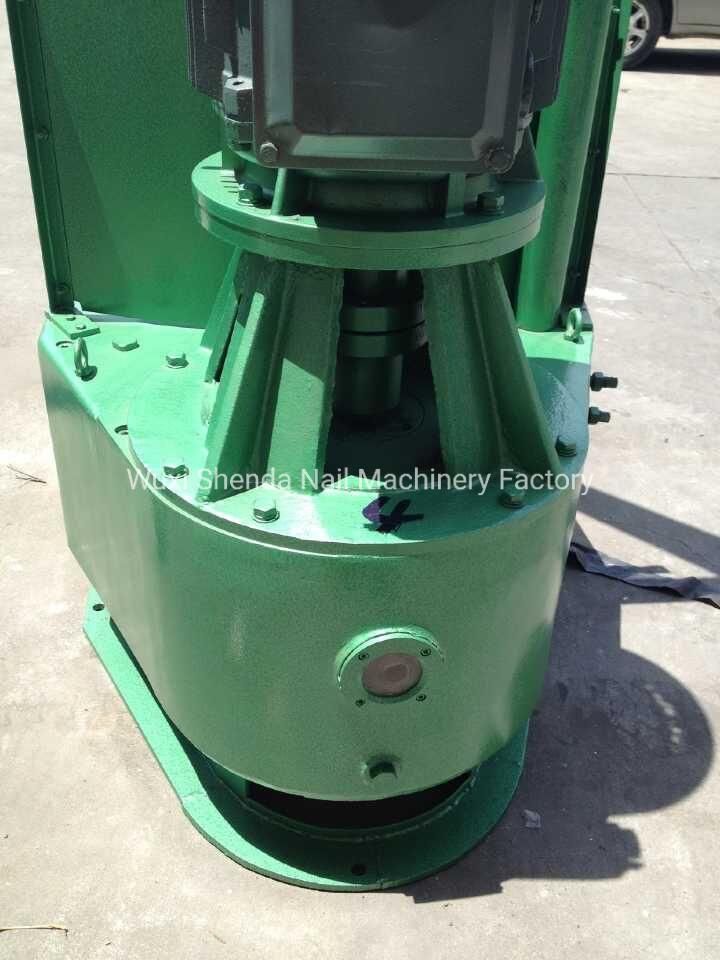

Structure:The equipment consist of main reduction box,die box,wheel frame,wire brace and electric control system,The sponning drawing blocks are driven by JZT or Y series motor,with gear coupling runs changeful gears to reduce speed.The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.In order to lower residual heat on the surface of the block,the water cooler is install inwall of the block.The machine runs with cral or linkage.The safety halt gear is installed by the position of operating block.

Machine specification

Model	LW-1-6/560	LW-1-7/450	LW-1-6/350	LW-1/800
Material intensity	δb≥110kg/mm2	128kg/mm2	δb≥140kg/mm2
Max diam of material	6.5mm	3.4mm	2.5mm	14mm
Min diam of material	2mm	1mm	0.75mm	6.0mm
Diam of block	1-6/560	1-7/450	1-6/350	1-800
Max average condensation	30%	20%	21%	25%
Total condensation	78-88.5%	77.90%	78%
Max.speed of block	245m/min	346.9m/min	200m/min	0.4m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw	80kw
Weight	2000kg	1500kg	1000kg	4500kg
Overal size	1700x1150x1750mm	1520x810x1700mm	1400x800x1500mm	9730*3340*2020

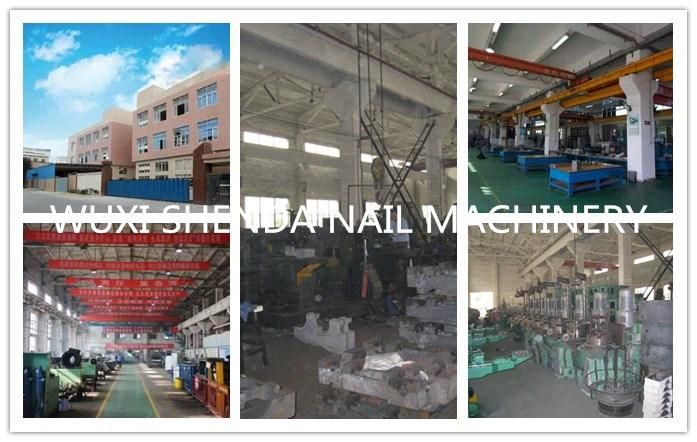

Our factory

With more than 5000spare meter and more than 30experianced labor .
We manufacturer every parts on our machine so as to promise the best quality ,With our machine,it can work for you longer life with less spare parts!


Machine packing&Delivery
Min order quantity :1 pcs
with wooden box or customized suitble for shipping

Our certificate
Our company have CE,ISO9001 many years and well certifyed by SGS,COC ect.


Our Customer

with more than 200companies coperate and have well approval .


For more detail.Pls contact us .
