Steel Barbed Wire Making Machine, Barbed Wire Making Machine Price
Wuxi Shenda Nail Machinery Factory- After-sales Service:Video and on Line Demonstration
- Type:Barbed Wire Machine
- Voltage:380V
- Style:Horizontal
- Warranty:1 Year
- Transport Package:Suitble for Shipping
Base Info
- Model NO.:CSC
- Specification:3100*1130*1500mm
- Trademark:Shenyida
- Origin:Wuxi China
- HS Code:8463300000
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. CSC Specification 3100*1130*1500mm Trademark Shenyida Origin Wuxi China HS Code 8463300000 Production Capacity 100PCS/MonthProduct Description

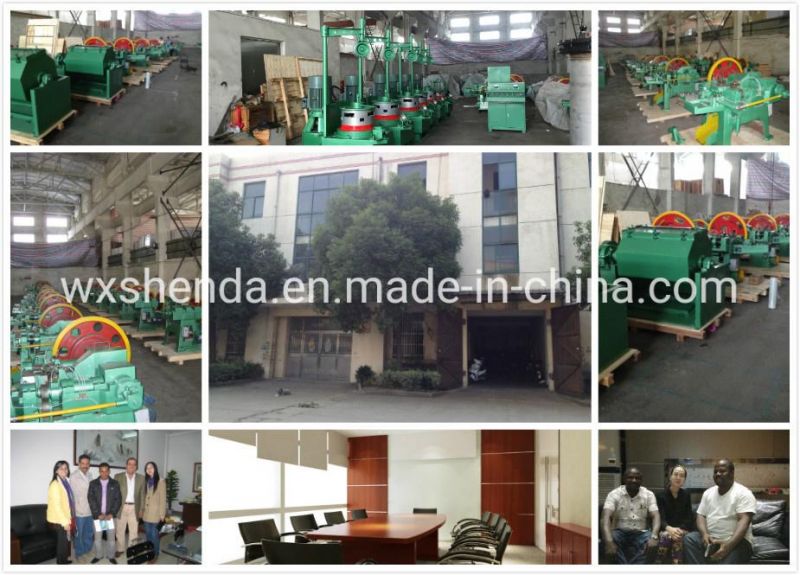

Company information
Wuxi shenda nail machienry factory professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Quality Guarrantee Custom Made Barbed Wire Netting Machine
Specifications

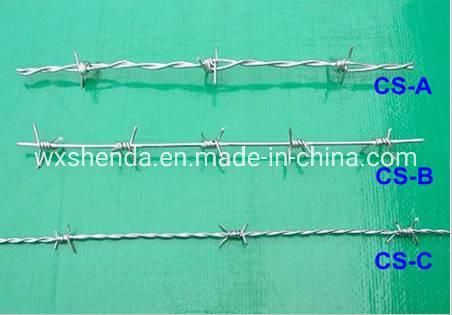

CS-A barbed wire machine
No. | Description | Unit | Specification |
1 | Motor | kw | 3 |
2 | Main drive shaft speed | r/min | 402 |
3 | Unit wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barbed pich | inch | 3,4,5 |
6 | Twist Number | pcs | 3.5 |
7 | Theoretical capaticy | Kg/h | 70 |
8 | Total weight | kg | 1200 |
9 | Dimension of main part | mm | 2000*1500*1500 |
No. | Description | Unit | Specification |
1 | Motor | kw | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Unit wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barbed pich | inch | 4,5 |
6 | Theoretical capaticy | Kg/h | 40 |
7 | Total weight | kg | 4000 |
8 | Dimension of main part | mm | 3100*1130*1500 |
CS-C barbed wire machine
No. | Description | Unit | Specification |
1 | Motor | kw | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Unit wire diameter | mm | 1.6-2.8 |
4 | Barbed wire diameter | mm | 1.6-2.2 |
5 | Barbed pich | inch | 4,5 |
6 | Twist Number | pcs | 7 |
7 | Theoretical capaticy | Kg/h | 40 |
8 | Total weight | kg | 1000 |
9 | Dimension of main part | mm | 3000*1000*1150 |
Machine packing &delivery
Wooden box&steel pallet+palstic film
