Metallic Processing Machinery

Steel Nail Rolling Machine, High Speed Thread Rolling Machine

Wuxi Shenda Nail Machinery Factory
  • After-sales Service:Video and on Line Demonstration
  • Warranty:1 Year
  • Transport Package:Wooden Box
  • Specification:1800*1260*1460
  • Trademark:Shenyida
  • Origin:Wuxi China

Base Info

  • Model NO.:GB-S
  • HS Code:84633000
  • Production Capacity:1000pieces,Years

Description

Basic Info.

Model NO. GB-S HS Code 84633000 Production Capacity 1000pieces/Years

Product Description

Steel Nail Rolling Machine, High Speed Thread Rolling Machine

About us:


ONE-STOP WIRE&NAIL MAKING MACHINERY EXPERT(Skilled in kinds wire&nail making project)



Wuxi shenda nail machienry factory  professional manufactures nail making machine, wire drawing machine and high speed thread rolling machine,high speed coil nail welding machine, the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:High speed thread rolling machine ,high speed coil nail weding machine,Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine

Steel Nail Rolling Machine, High Speed Thread Rolling Machine

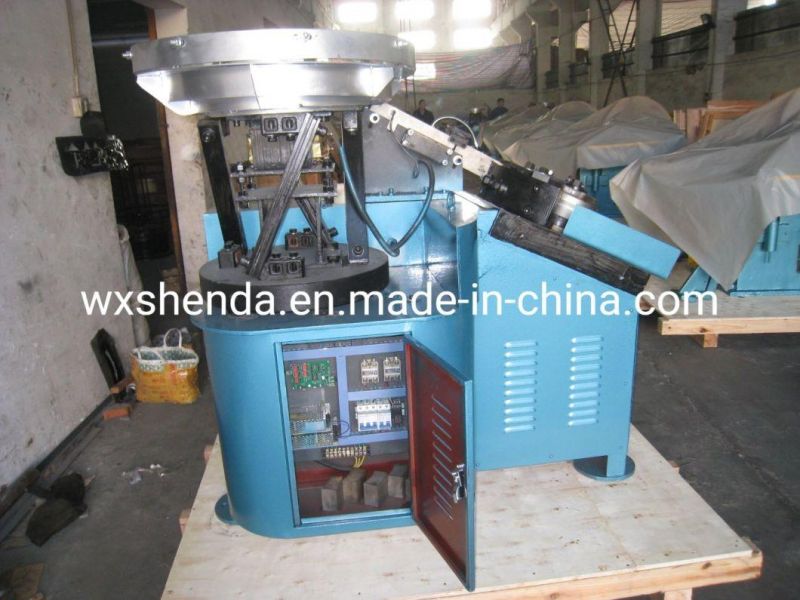

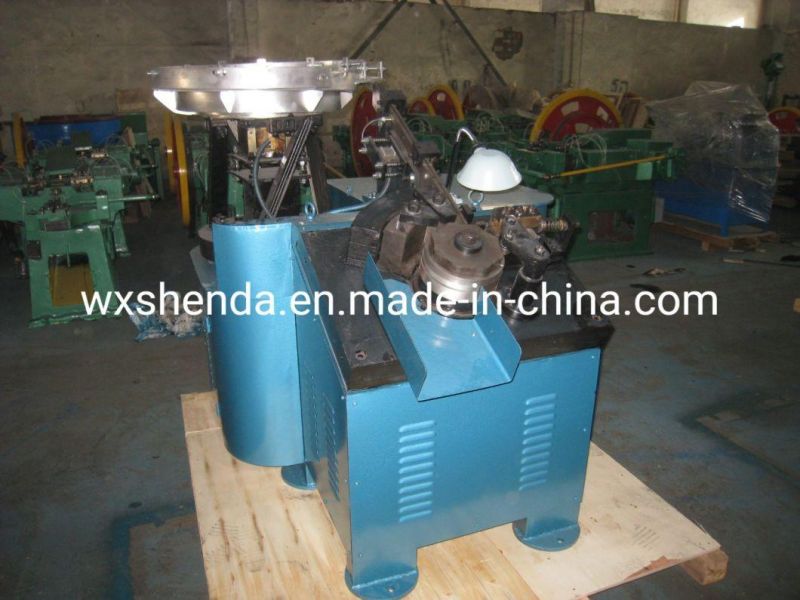

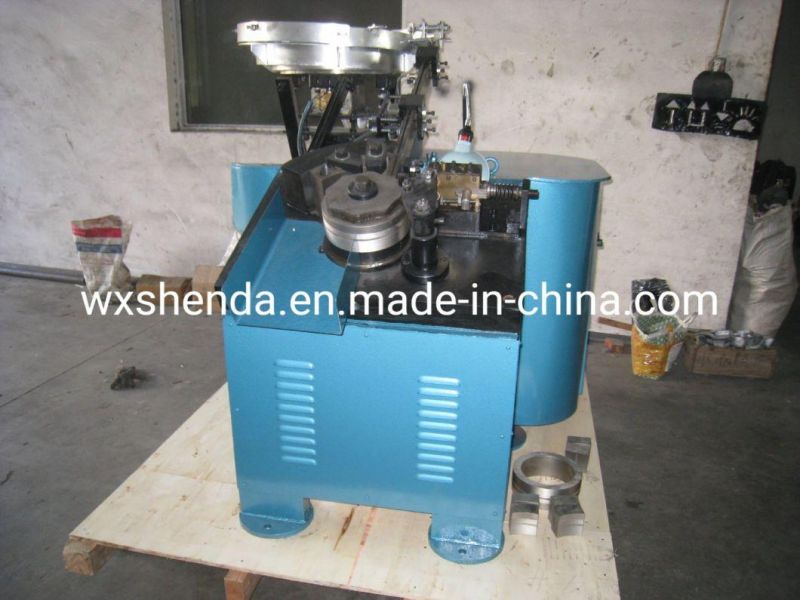

High speed thread rolling machine/nail twisting machine

This machine is used after nail making by nail making machine .
mainly used for processing the threaded nail, annular threaded nail and other new and special nails.

High speed thread rolling machine is a product designed and improved by our factory by integrating the
advantages of the same kind of products at home and abroad, keeping a leading position among the same kind
of products at home.


Steel Nail Rolling Machine, High Speed Thread Rolling Machine

Machine Specification:

Thread rolling dia2.0-4.1mm
Nail length30-90mm
Production rate500-1000 poa/min
Main motor power3.0kw

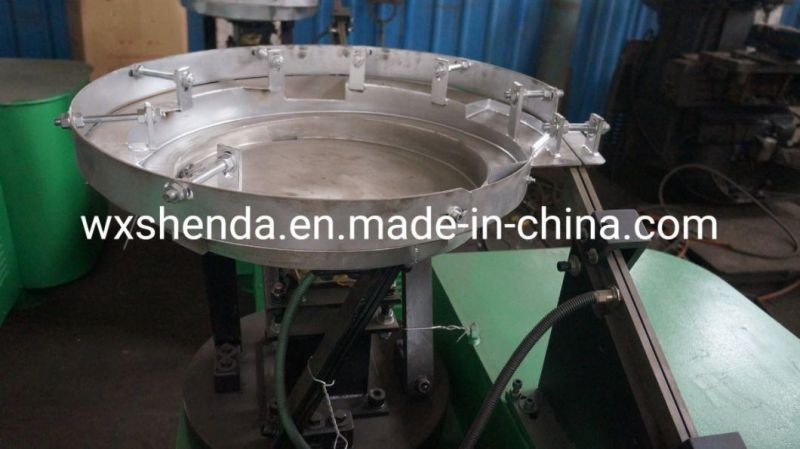

Vibrate hopper capacity5.0kg
Total weight1300kg
Overall(LxWxH)1300x1300x1500mm

Steel Nail Rolling Machine, High Speed Thread Rolling MachineSteel Nail Rolling Machine, High Speed Thread Rolling MachineSteel Nail Rolling Machine, High Speed Thread Rolling MachineSteel Nail Rolling Machine, High Speed Thread Rolling Machine

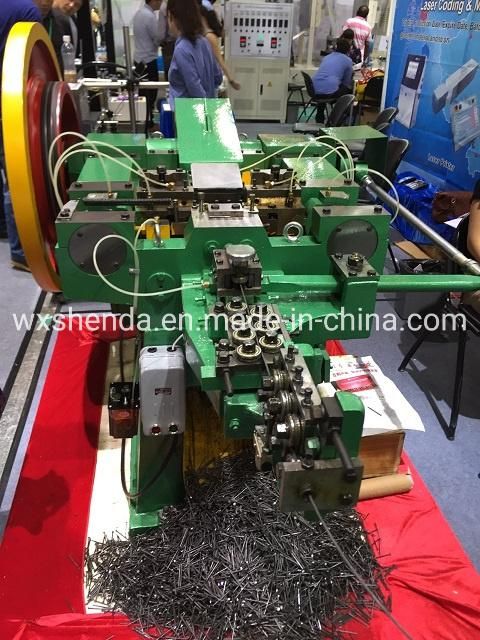

Nail making related machine

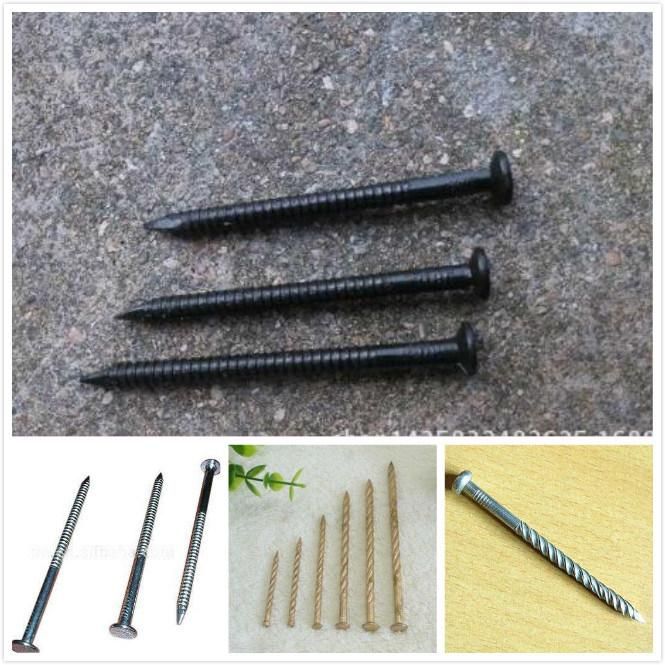

Screw nail and ring nail making from Nail making machine

parameterunitZ94-6.5CZ94-5.5CZ94-4CZ94-3CZ94-2CZ94-1C
Dia of nail maxmm6.55.54.53.42.81.6
Dia of nail minmm4.53.72.81.81.20.9
Length of nail maxmm200150100805025
Length of nail minmm100805030169
Dsigned out putpcs/min160200260320350450
Moter power kw115.5432.21.5
Weight(approx)kg50002500200014001200560
Overall dimensionsmm3200x2200x22002800x1800x18002200x1600x16502000x1400x14001700x1300x14001500x1300x1200

Steel Nail Rolling Machine, High Speed Thread Rolling Machine

Steel Nail Rolling Machine, High Speed Thread Rolling Machine

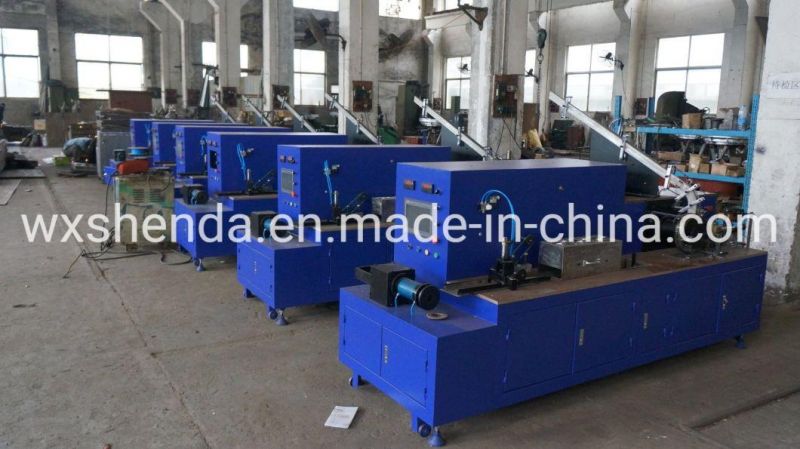

Coil nail welding machine after nail rolling from high speed thread roling machine



The high speed coil nail welding machine produced by our factoryis a fully automatic high-frequency high-speed welding equipment.

During operation, the iron nails are placed in the feeding hopper and automatically unloaded. The iron nails are arranged in order by the vibrating plate, and then enter the nail wheel through the unloading track, and are welded into coiled nails by two copper-plated welding wires, and then automatically dipped in paint to prevent rust and bake.

Drying and counting are automatically rolled into rolls, and automatically cut according to the set count of each roll. The finished product can be produced by the operator after packing the finished product into the box.
Model THN-1
Range of Nail Dia.:1.8mm-4.0mm
Range of Nail Length: 25mm-130mm
Output: 800-2000pcs/min.
Rated Power: 8kw
Power of Nail Feeding System: 0.75kw
Power of Welding System: 20kw, 1000-2000A
Power Supply: 3 phases AC 380V 50-60HZ
coil nail welding angle 15/16degree
coil nail welding wire diameter0.6/0.7/0.8mm
PLC brandJapan Omron
Touch panel brandTaiWan WEINVIEW
convetor brandJapan Omron
replay brandJapan Omron
Packing: packed in 2 wooden cases
Packing Size: 3000X1500X1800mm
                      2000×1200×800mm
Weight: 1600kg
 Steel Nail Rolling Machine, High Speed Thread Rolling Machine




Our customer show:
Steel Nail Rolling Machine, High Speed Thread Rolling Machine
