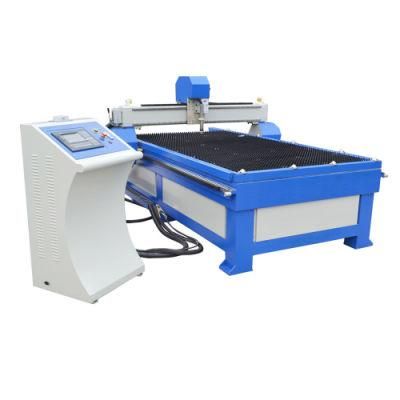

China Brand Hot Selling 1325 CNC Plasma Metal Cutting Machine
Jinan Lansen Laser Equipment Co., Ltd.- After-sales Service：Online Service
- Warranty：2 Years
- Customized：Customized
- Layout：Vertical
- Cutting Material：Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：LP-M1325P
- Power Source：Electric
- Cutting Mode：Plasma Cutting
- Plasma Current：100A
- Control System：Starfire
- Transmit Way：Gear Wheel
- Guide Rail：Linear Guide Rail
- Transport Package：Plywood Box
- Specification：Work size 1300*2500
- Trademark：Lansen
- Origin：China
- HS Code：8465990000
- Production Capacity：300sets,Month
Description
Model
LP-M1325P
Working area(mm)
1300x2500mm
Power supply
Huayuan(China), Thermadyne or Hypertherm (Import from USA)
Plasma currency
60A/100A/160A/200A
Control system
DSP or Beijing Start
Cutting thickness
Depend on plasma currency
Cutting speed
100-8,000mm/min
Moving speed
0-50,000mm/min
Precision
±0.1mm
Repeating precision
±0.8mm
Power
8.5-10.5kw
Voltage
380v/50Hz
Working atmospheric pressure
0.65-0.7Mpa
Communication interface
USB port
Arc pressure adjuster
Hipost AHC-2C
Software support
FASTCAM, AutoCAD, Type 3 etc. Software
Instruction format
G code
Machine parts:
Machine body: Thick steel welded bed (rugged and reliable, no distortion, carrying heavy, strong stability)
Gantry:Use 10mm thickness steel (very stronger, more durable and stability)
Plasma Power: international famous brands, low failure rate
Rail: Taiwan Hiwin side rails (bearing, guide, control precision effects)
Rack: straight teeth (high speed, high precision)
Control System: Beijing StarFire (Sino-US joint venture, stable performance, simple operation)
Countertops: 4mm serrated rack (load capacity, accuracy is more accurate)
Bed structure: GB artificial aging overall secondary vibration welding bed
Electrical accessories: High quality electronic components, high flexible shielded cable (resistant to water, bending, anti-oil).
Packages:

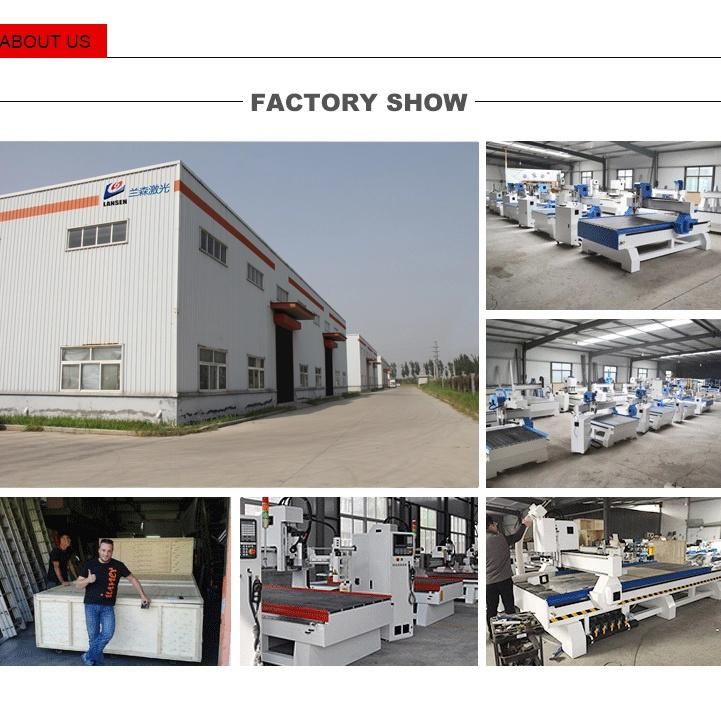

Company:
