• Model NO.：COLO-1864
• Condition：New
• Intelligent：Top Quality
• Worksize Dimensions：1600width X 1800 Height X 1400 Depth
• Power Supply：Electric, 4kw
• Warm-up Time：15-30 Min. (180° C)
• Temperature Max.：250° C
• Motor Power：0.75
• Voltage：380V
• Frequency：220V(50-60Hz)
• Ventilation Performance：805-1677m3,H
• Transport Package：Carton
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：84243000
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. COLO-1864 Condition New Intelligent Top Quality Worksize Dimensions 1600width X 1800 Height X 1400 Depth Power Supply Electric/ 4kw Warm-up Time 15-30 Min. (180° C) Temperature Max. 250° C Motor Power 0.75 Voltage 380V Frequency 220V(50-60Hz) Ventilation Performance 805-1677m3/H Transport Package Carton Specification CE Trademark COLO Origin China HS Code 84243000 Production Capacity 20000PCS/Year

Product Description

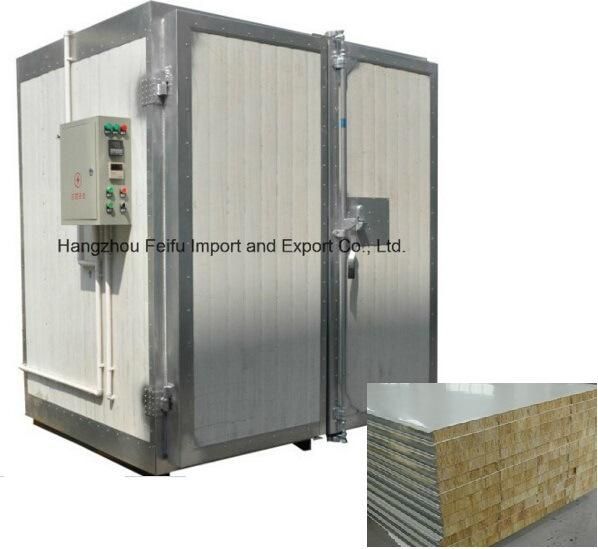

COLO-1864 High Efficiency Electrical Powder Curing Furnace


Description
FF-1864 High Efficiency Electrical Powder Curing Furnace is used to cure mental surface after powder coated.
1)Working size(mm): WIdth1600 x Depth 1400mm x Height 1800mm
2)Heating by electrical

If this size is not suitable for you, we can customized oven size as you required.

Specifications

Model	FF-1864
Worksize dimensions	1600width x 1800 height x 1400 depth
Overall dimensions	1900 width  x 2200 height x 1700 depth
Power supply	Electric/ 18kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months
Price	$5180 (included trolley)

Details

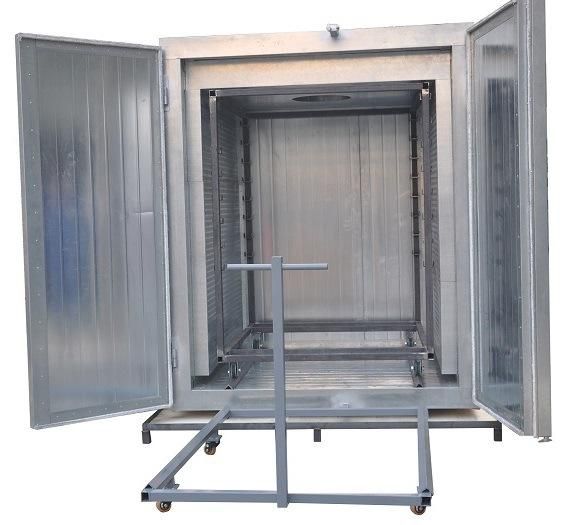

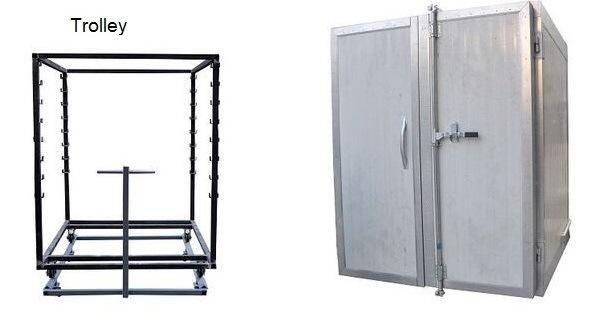

We equip a trolley for customer to load and unload work-pieces.

COLO Service
1 Delivery: 25 work days after receieve the payment
2 Warranty: 12 months .
3 After sales service: engineer oversea training and installation instruction .

Why choose us ?
1. More than 10 years manufacturing experience in whole powder coating and powder painting line
2. Exported to over 90 countries, experienced in exporting.
3. Customized as you want.
4. Competitive price: we are factory. Design, produce, installed all by ourselves Save cost
5. One year of warranty period and life long technical support.
6. Market share in Global: about 90%, is a leading factory in this filed.

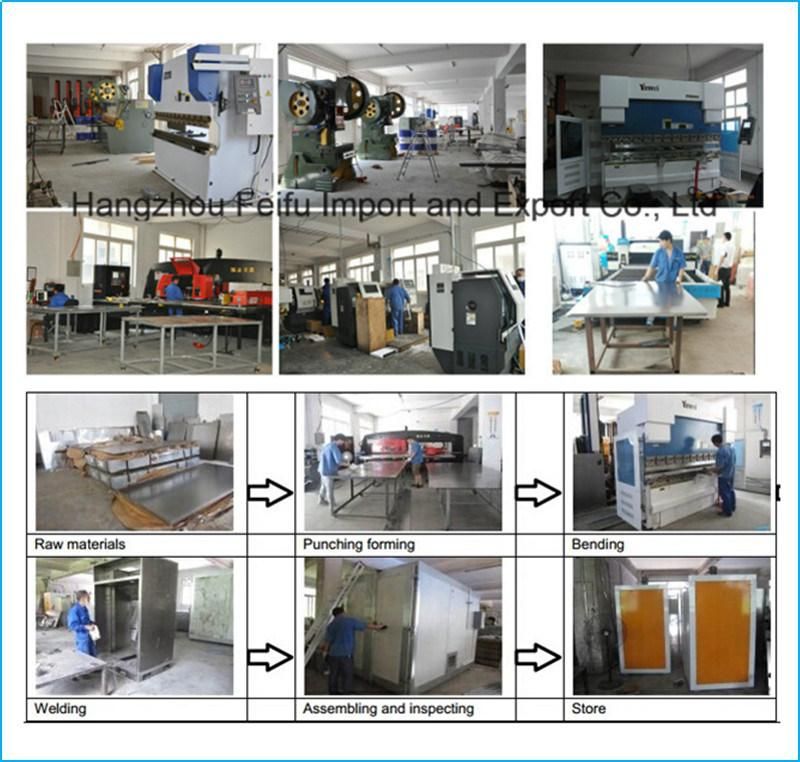

Our work shop & production process .

If you have any question ,please contact me.
