Metallic Processing Machinery

CNC Metal Plasma Cutting Machine for CS and Ss

Jinan Lansen Laser Equipment Co., Ltd.
  • After-sales Service:Online Service
  • Warranty:2 Years
  • Customized:Customized
  • Layout:Vertical
  • Cutting Material:Carbon Steel, Iron, Stainless Steel
  • Automatic Grade:Automatic

Base Info

  • Model NO.:LP-P1325
  • Power Source:Electric
  • Cutting Mode:Plasma Cutting
  • Plasma Current:100A
  • Control System:Starfire
  • Transmit Way:Gear Wheel
  • Guide Rail:Linear Guide Rail
  • Transport Package:Plywood Box
  • Specification:Work size 1500*3000
  • Trademark:Lansen
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:500 Sets,Year

Description

Model

LP-M1530P

Working area(mm)

1500x3000mm

Power supply

Huayuan(China), Thermadyne or Hypertherm (Import from USA)

Plasma currency

40A/60A/100A/160A/200A

Control system

DSP or Beijing Start

Cutting thickness

Depend on plasma currency

Cutting speed

100-8,000mm/min

Moving speed

0-50,000mm/min

Precision

±0.1mm

Repeating precision

±0.8mm

Power

8.5-10.5kw

Voltage

380v/50Hz

Working atmospheric pressure

0.65-0.7Mpa

Communication interface

USB port

Arc pressure adjuster

Hipost AHC-2C

Software support

FASTCAM, AutoCAD, Type 3 etc. Software

Instruction format

G code

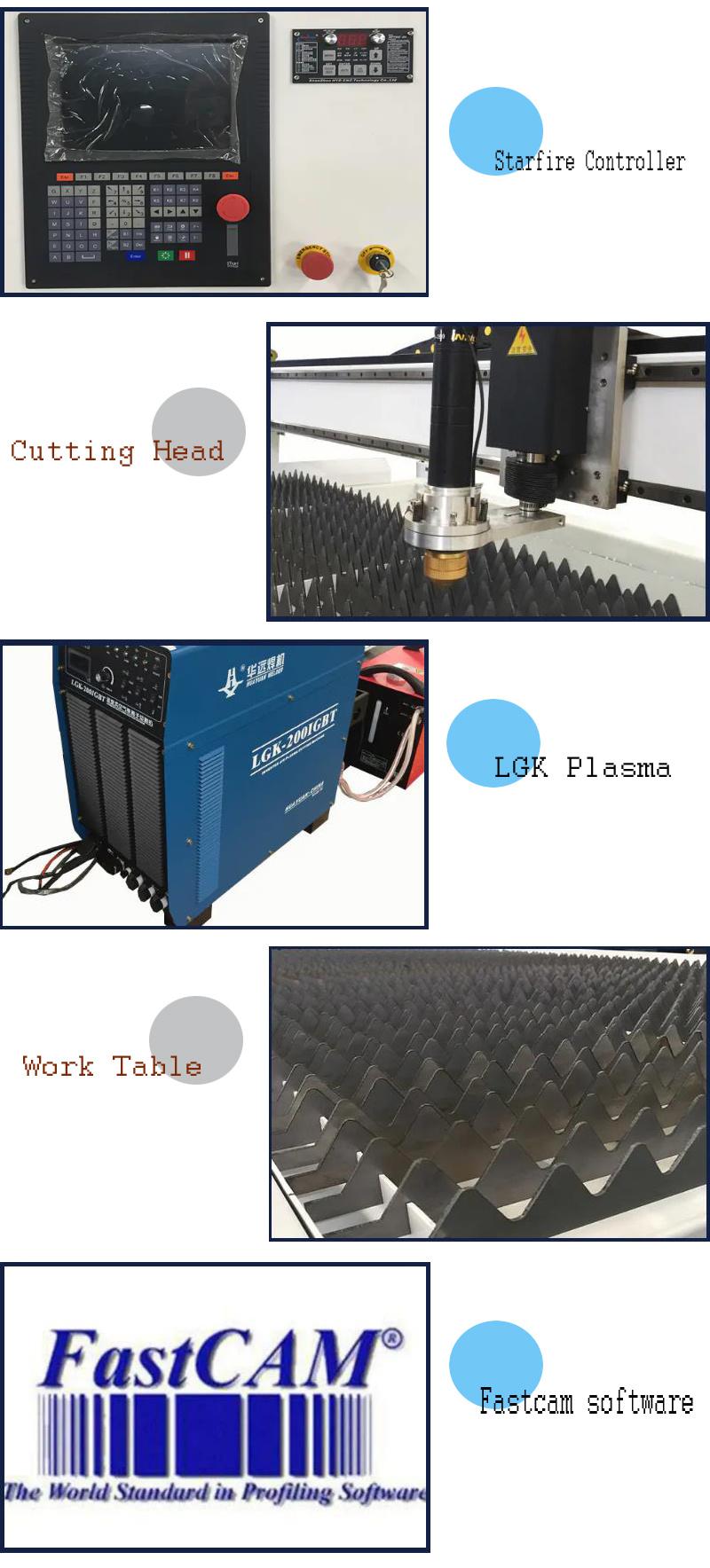

Machine parts:

Machine body: Thick steel welded bed (rugged and reliable, no distortion, carrying heavy, strong stability)

Gantry:Use 10mm thickness steel (very stronger, more durable and stability)

Plasma Power: international famous brands, low failure rate

Rail: Taiwan Hiwin side rails (bearing, guide, control precision effects)

Rack: straight teeth (high speed, high precision)

Control System: Beijing StarFire (Sino-US joint venture, stable performance, simple operation)

Countertops: 4mm serrated rack (load capacity, accuracy is more accurate)

Bed structure: GB artificial aging overall secondary vibration welding bed

Electrical accessories: High quality electronic components, high flexible shielded cable (resistant to water, bending, anti-oil).

CNC Metal Plasma Cutting Machine for CS and Ss
Packages:


CNC Metal Plasma Cutting Machine for CS and Ss

Company:

CNC Metal Plasma Cutting Machine for CS and Ss
CNC Metal Plasma Cutting Machine for CS and Ss
CNC Metal Plasma Cutting Machine for CS and Ss
FAQ:

Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
