• Model NO.：HY-PO2900G1
• Condition：New
• Panel：100mm Rockwool Sandwich Panel
• Size：2900*2300*2400mm
• Fan：1set
• Heating System：Gas
• Burner：Riello Gas Burner
• Control Box：English Panel
• User Manual：Available
• Drawing：Available
• Highest Temperature：200 Degree
• Heat Cabinet：Rock Wool Insulated
• Transport Package：Standard Packing Suitable for Sea Shipment
• Specification：10cbm for LCL
• Trademark：N,A
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-PO2900G1 Condition New Panel 100mm Rockwool Sandwich Panel Size 2900*2300*2400mm Fan 1set Heating System Gas Burner Riello Gas Burner Control Box English Panel User Manual Available Drawing Available Highest Temperature 200 Degree Heat Cabinet Rock Wool Insulated Transport Package Standard Packing Suitable for Sea Shipment Specification 10cbm for LCL Trademark N/A Origin China Production Capacity 100 Set Per Month

Product Description

The powder coating process involves three basic steps:

1. Part preparation or the pre-treatment
2. The powder application
3. Curing

The powder coating process involves the following equipment:
1. Part preparation processes and equipment
2. powder coating spray gun(manually or automatically)
3. powder coating spray booth(manually or automatically)
4. powder coating curing oven(gas, diesel, or electric heating energy for option)
5. powder coating production line(manually or automatically)

Quick details of the High Quality 3m Powder Coating Oven
Outer size(D*W*H): 2900*2300*2400mm
Inner Clear size(D*W*H): 2600*2000*2000mm
heating power: gas burner.
entry door: 1set, for in and out.

Advantages of the High Quality 3m Powder Coating Oven


Function of the High Quality 3m Powder Coating Oven
The powder coating curing oven is mainly for curing the object coated by powders, which is the most important and vital part during the powder coating process.

Features of the High Quality 3m Powder Coating Oven

Walls and roof comprised of galvanised steel plates with high-density Rockwool insulation at 100mm thick.

Our advanced design and high quality manufacturing process leads to remarkably low running costs (Especially for the gas consumption).

Powerful centrifugal fans and our patented high volume internal duct system allow highly efficient running and give an even heat throughout.

Our ovens are controlled by a famous brand components with a simple control panel. This allows accurate cure timing and helps improve fuel efficiency.

High quality burners - tried and tested over many years

Our manufacturing plant produces heavy-duty ovens, designed and built to last.

Flat packed for easy transportation and installation

Each part of oven is checked before shipping.

CE mark

Fully guaranteed &Service contracts available

Parameters of the High Quality 3m Powder Coating Oven

Model	HY-PO2900G1
Outer size(mm) D*W*H	2900*2300*2400
Inner Clear size(mm) D*W*H	2600*2000*2000
Cabin system	100mm/75mm thickness rockwool sandwich panel.
Entry/off door	One-end door for in and out.
Power supply	GAS
Voltage	110V/220V/380V/415V/450V
Frequency	50-60Hz
Warm-up time	15 min. (180-220° C)
Temp Homogeneity	< ± 3°C if 185°C
Temperature stability	< ± 1°C
Temperature max.	230° C
Air circulation	Hot air circulation
Band of burner	Italy Riello
Warranty	12 months
Transport	By sea
Optional	Size could be custom-made.
Transfer trolley	excluded
Related products	Powder coating gun, powder coating machine, powder coating spray booth, powder coating plant, powder coating spray line

Related products of our High Quality 3m Powder Coating Oven
powder coating spray booth, powder coating spray machine, powder coating plant, powder coating spray production line, powder coating spray gun and so on.

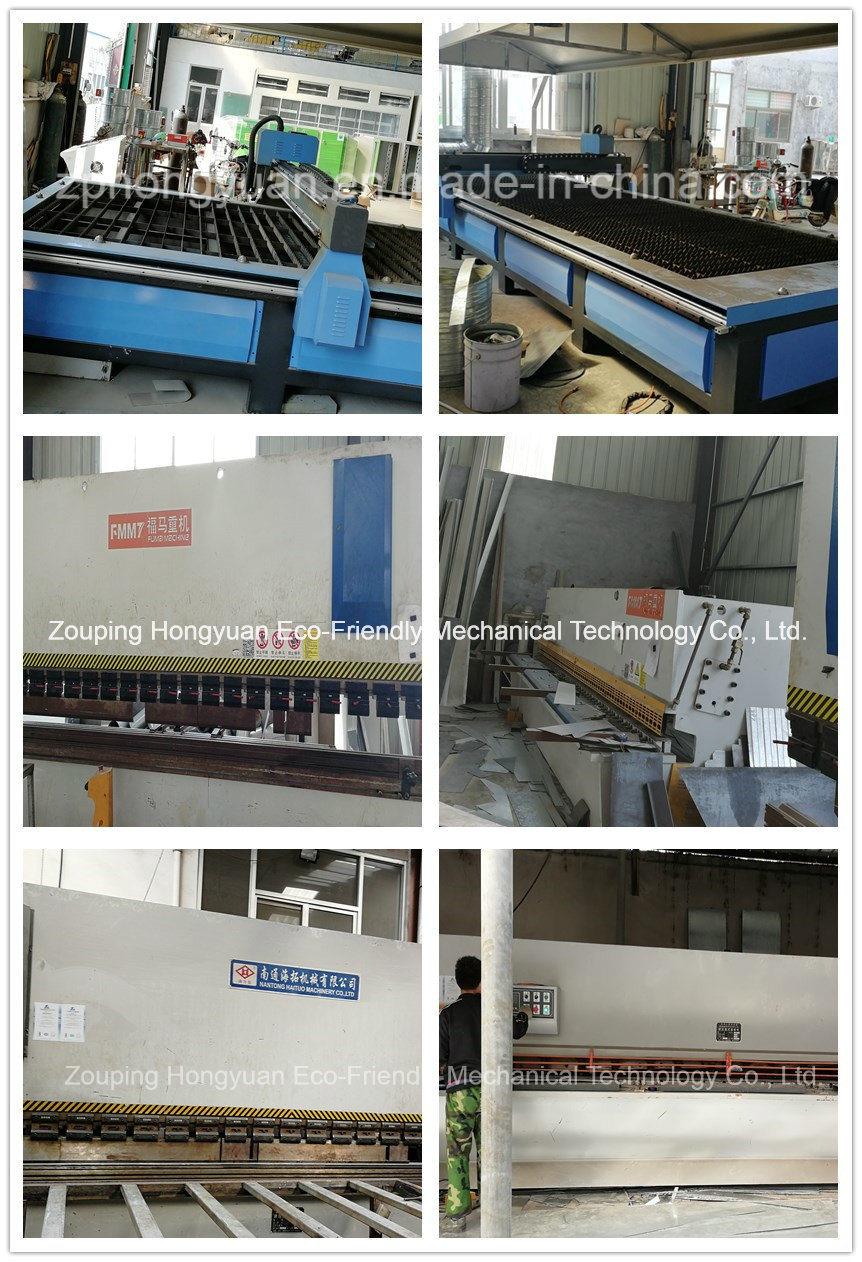

Picture of our production equipment for manufacturing

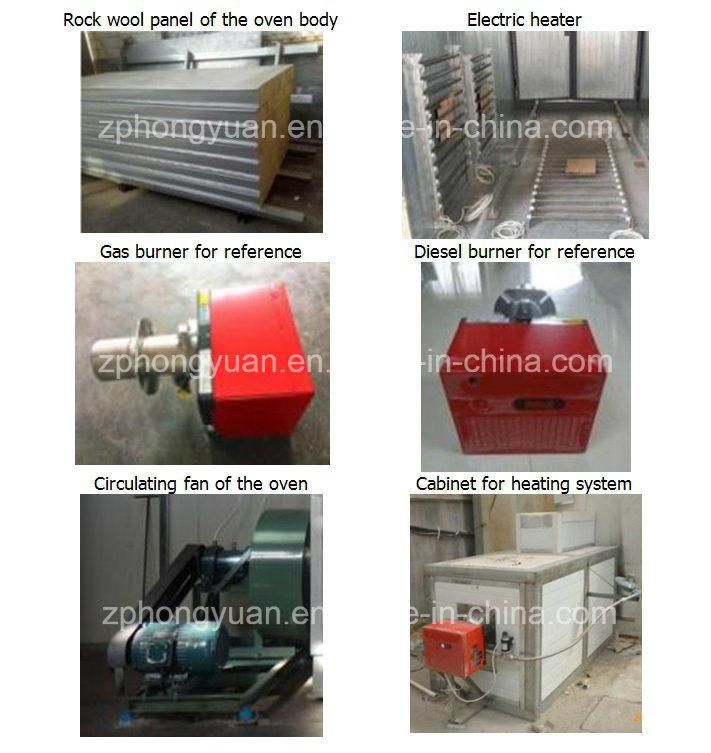

Parts show of the High Quality 3m Powder Coating Oven

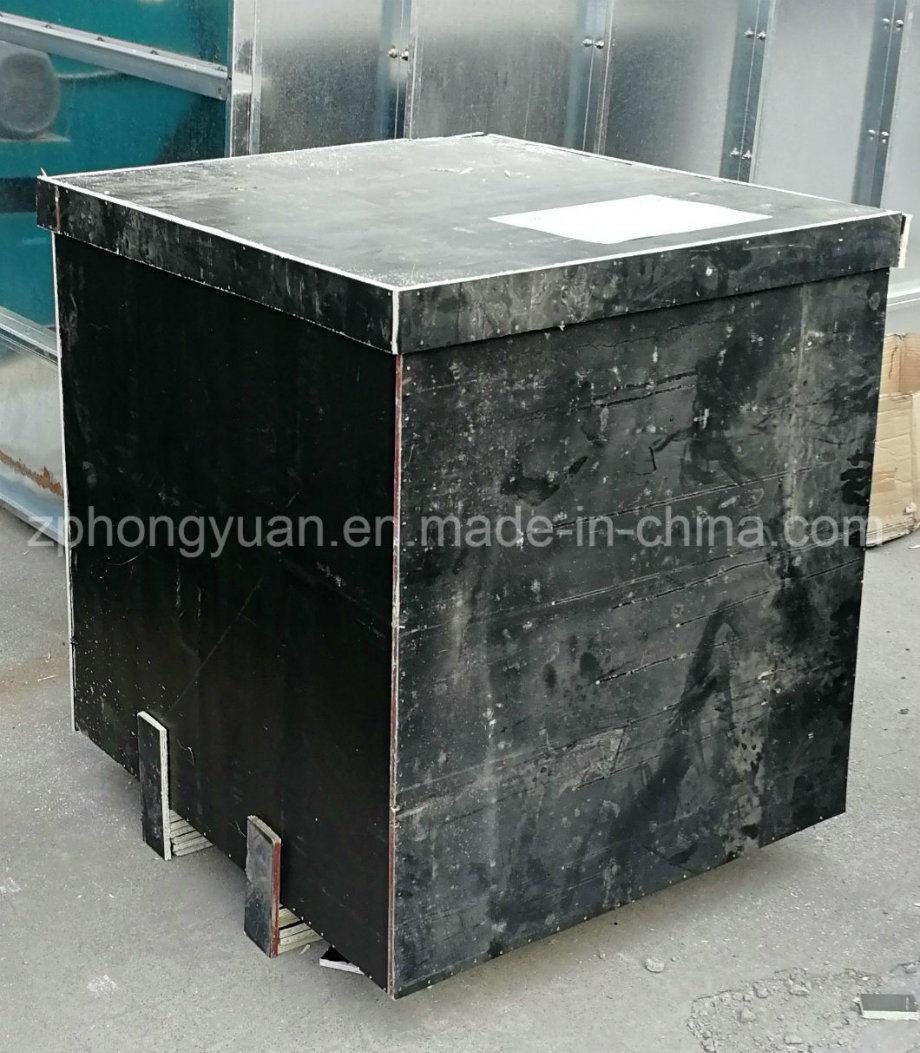

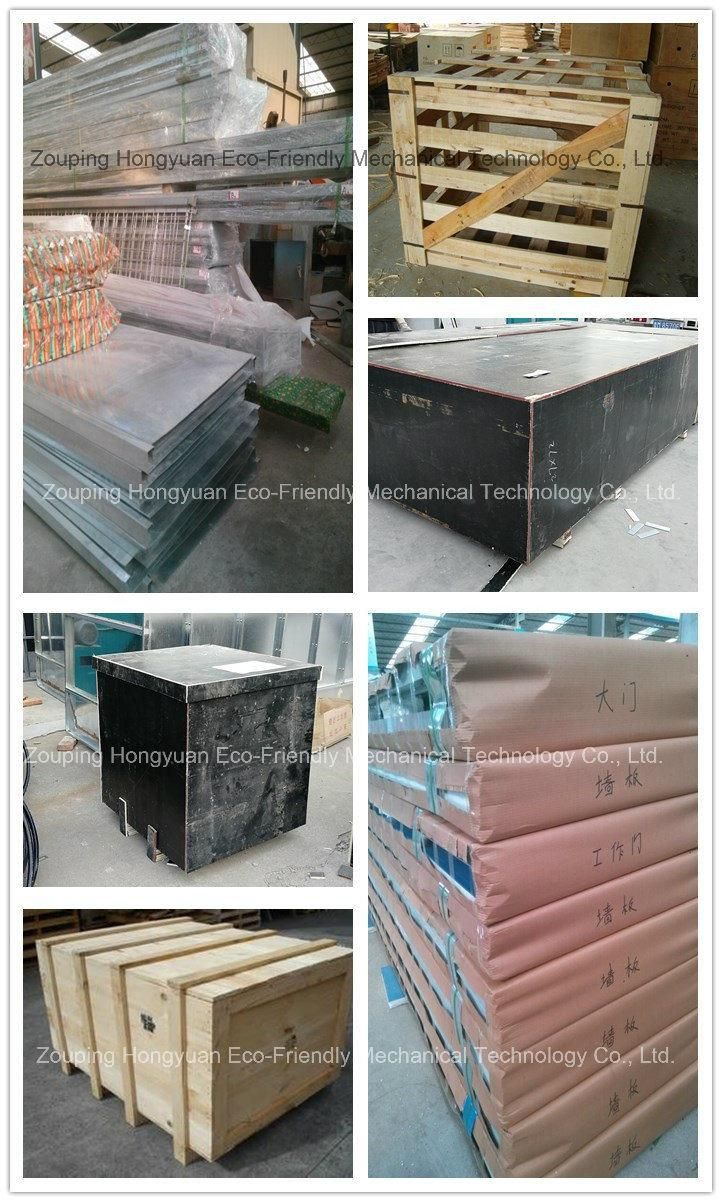

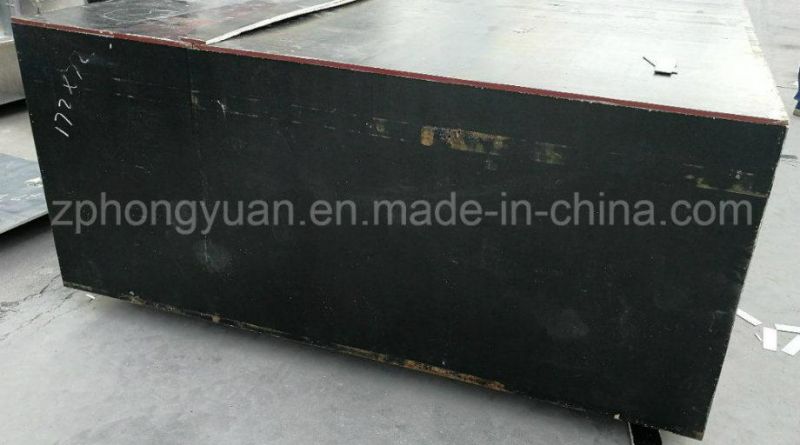

Package show of high Quality 3m Powder Coating Oven

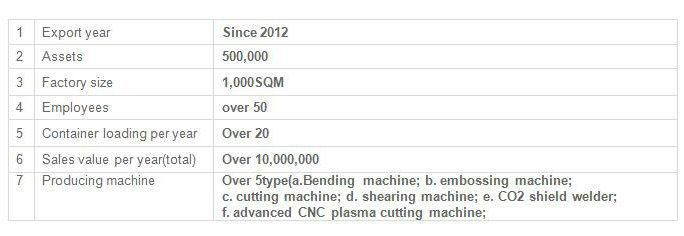

Certificate of our product and company

Our Team is serving you at any time

Send us inquiry about High Quality 3m Powder Coating Oven
