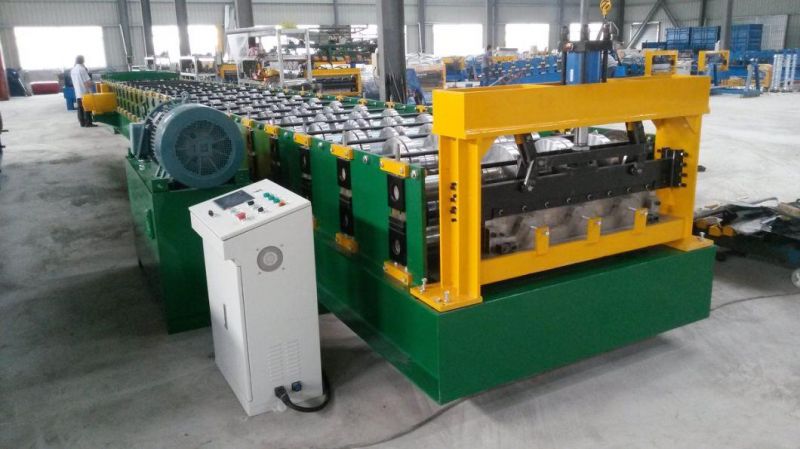

Floor Decking Roll Forming Machine Yx45-975.8
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Cold Roll Forming
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：6 Months
Base Info
- Model NO.：YX45-975.8
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Dimension：16000*1800*1500mm
- Weight：20tons
- Hydraulic Motor Power：37kw
- Voltage：220V,60Hz,3pH
- Height of Floor Decking：45mm
- Effective Width：975.8mm
- Material Width：1219mm
- Thickness：0.8-1.6mm
- Forming Steps：18
- Usage：Floor Decking Roll Forming Machine
- Transport Package：Standard Package for Floor Deck Forming Machine
- Specification：16000*1800*1500mm
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：84552290
- Production Capacity：10-15 Sets,Month
Description
Basic Info.
Model NO. YX45-975.8 Customized Customized Advantage Work Flexible Condition New Dimension 16000*1800*1500mm Weight 20tons Hydraulic Motor Power 37kw Voltage 220V/60Hz/3pH Height of Floor Decking 45mm Effective Width 975.8mm Material Width 1219mm Thickness 0.8-1.6mm Forming Steps 18 Usage Floor Decking Roll Forming Machine Transport Package Standard Package for Floor Deck Forming Machine Specification 16000*1800*1500mm Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15 Sets/MonthProduct Description
Floor Decking Roll Forming Machine Yx45-975.8:1. Motor Power: 37KW
2. Material Thickness: 0.8-1.6mm
3. Material Width: 900mm
4. Forming Steps: 18Steps
Main Accessories:
A. Main forming machine,
B. 5 tons manual uncoiler,
C. Hydraulic system,
D. Computer controlling system,
E. Hydraulic forming cutter,
F. Run Out Tables (4 sets),
G. Operation Instruction.
| 1. | Dimension | 16000*1800*1500mm |
| 2. | Weight | 20Tons |
| 3. | Hydraulic Motor Power | 37KW |
| 4. | Voltage | 220V/60HZ/3PH |
| 5. | Height of Floor Decking | 45mm |
| 6. | Effective Width | 975.8mm |
| 7. | Material Width | 1319mm |
| 8. | Thickness | 0.8-1.6 |
| 9. | Forming Steps | 18 |
