1. DS Series Shaft Model Cam Indexer Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

Shaft Model Cam Indexer (DS) introduction:
The end of output is the shaft output, which is suitable for conveying modes such as conveyor belt and gear meshing for intermittent transmission. It is widely used in automation equipment such as filling equipment and eye drops filling machine.

Shaft Model Cam Indexer (DS) includes: 32DS, 38DS, 45DS, 60DS, 63DS, 70DS, 80DS, 83DS, 100DS, 110DS, 125DS, 140DS, 150DS, 180DS, 200DS, 250DS.

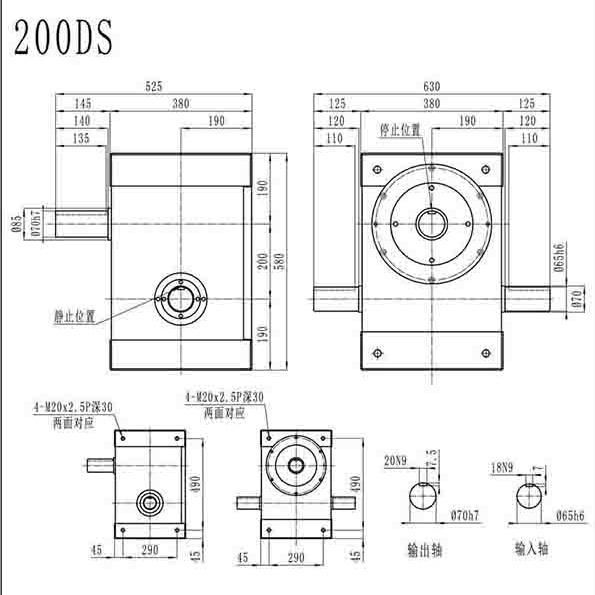

3.Specification of 200DS Cam Indexer:



Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	1200
Output allowable axial load	C2	kgf	1500
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	590
Input maximum bending moment	C4	Kgf	1045
Input maximum torque	C5	Kgf-m	147
GD2 of input shaft (note 1)	C6	Kgf-m2	0.39
Indexing accuracy		Sec.	±30
Weight		Kg	240

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

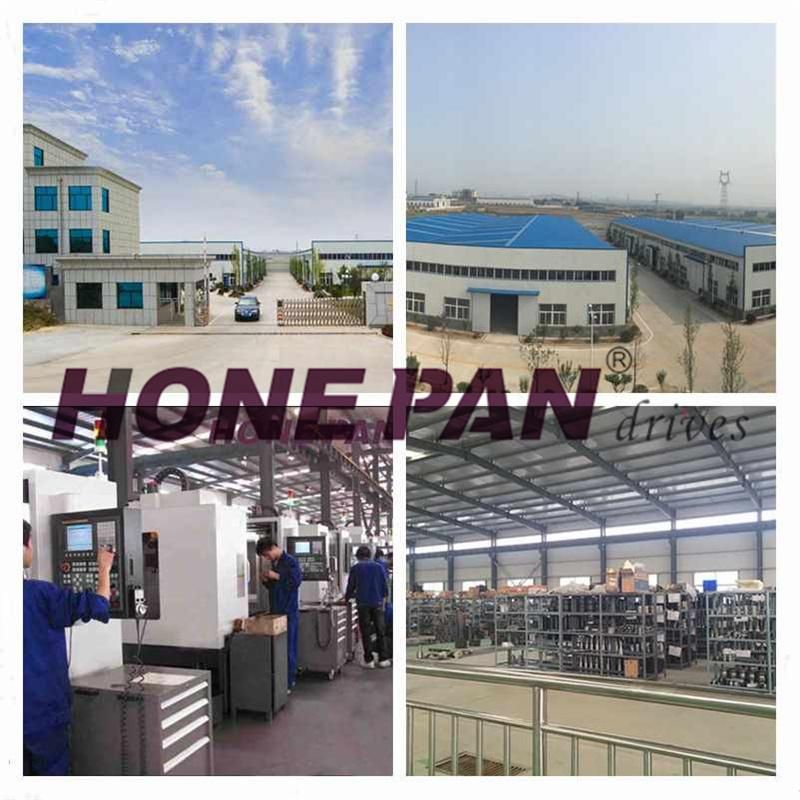

4. Company, Packaging & Shipment & Certificates



5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

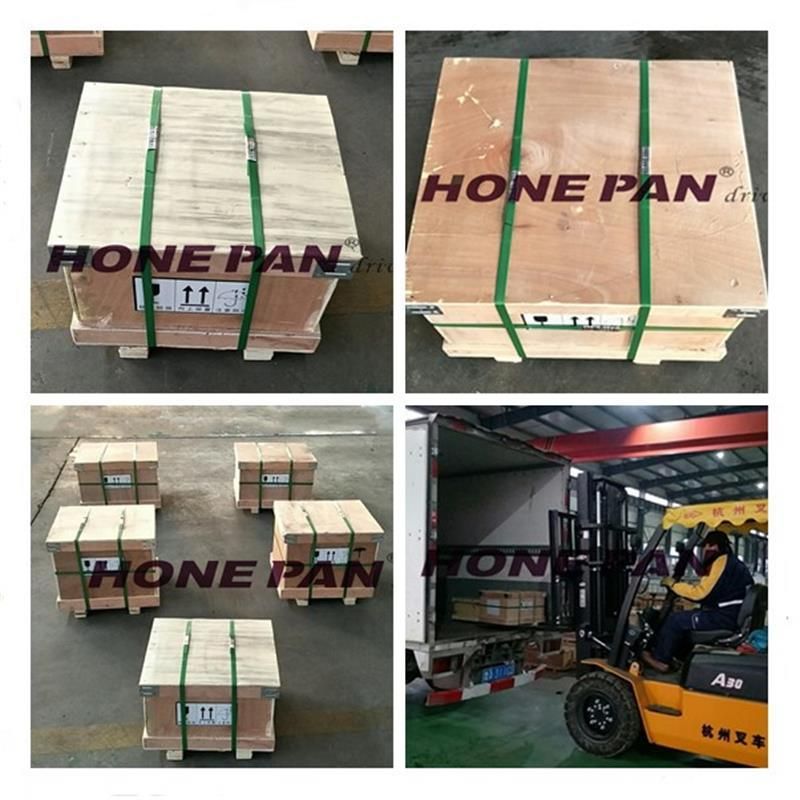

3) how about the packaging and shipment?
