Arch Shape Roof Curving Machine or Standing Seam Roof Yx65-300-600
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Cold Roll Forming
- Power Source：Hydraulic Pressure
- Feature：Automation
- Warranty：12 Months
- Customized：Customized
Base Info
- Model NO.：YX65-300-600
- Advantage：Work Flexible
- Condition：New
- Dimension：1600*900*2000mm
- Weight：1000kgs
- Motor Power：4kw
- Motor Power for Adjustment：0.75kw
- Forming Steps：4 Steps
- Volgate：380V,50Hz,3pH
- Curved Speed：8-16m,Min
- Curved Thickness of Steel Roof：0.6-1.0mm
- Curved Thickness of Aluminum：0.6-1.2mm
- Usage：Arch Shape Curving Machine or Standing Seam Roof
- Transport Package：Standard Package for Export
- Specification：Arch Shape Curving Machine or Standing Seam Roof
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：15-20sets,Month
Description
Basic Info.
Model NO. YX65-300-600 Advantage Work Flexible Condition New Dimension 1600*900*2000mm Weight 1000kgs Motor Power 4kw Motor Power for Adjustment 0.75kw Forming Steps 4 Steps Volgate 380V/50Hz/3pH Curved Speed 8-16m/Min Curved Thickness of Steel Roof 0.6-1.0mm Curved Thickness of Aluminum 0.6-1.2mm Usage Arch Shape Curving Machine or Standing Seam Roof Transport Package Standard Package for Export Specification Arch Shape Curving Machine or Standing Seam Roof Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 15-20sets/MonthProduct Description

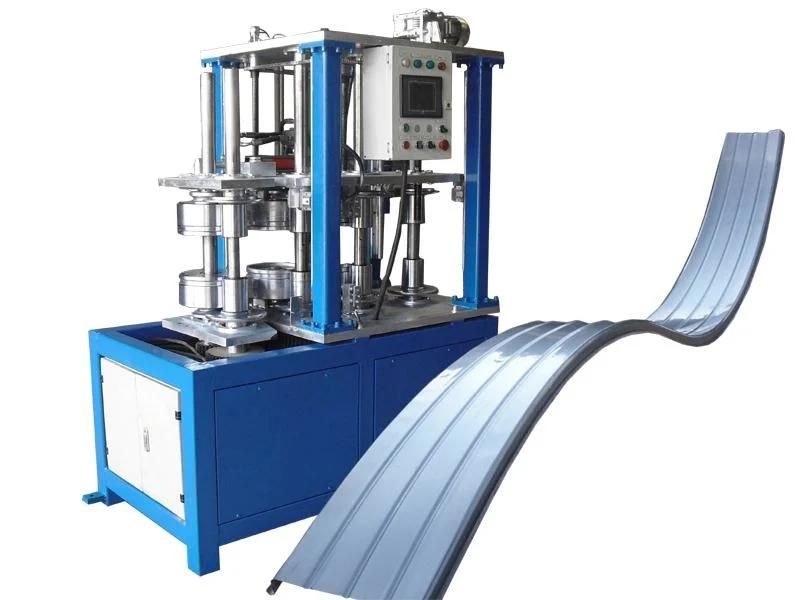

YX65-300-600 Arch Shape Curving Machine or Standing Seam Roof's detail information are as follow:Main Usage:

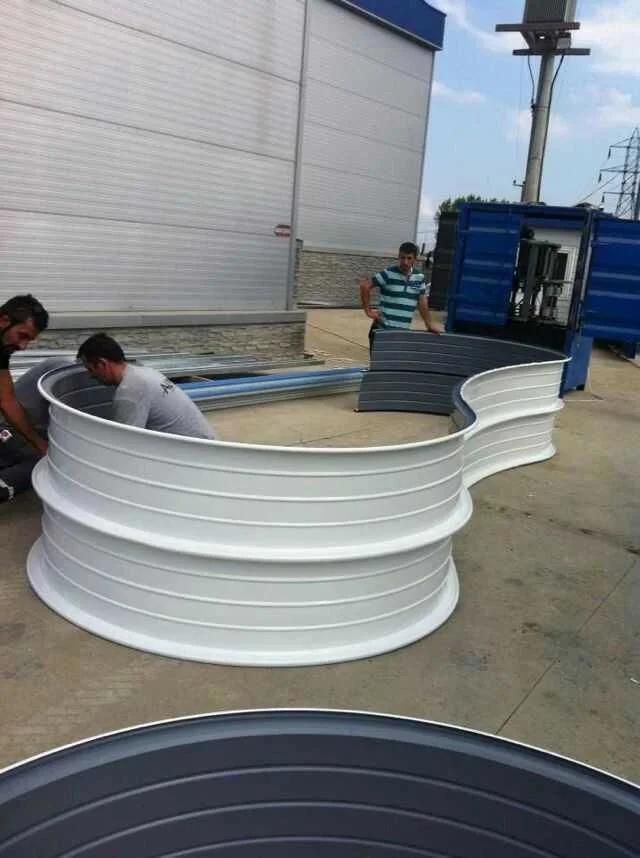

1. Bending roofing to Arc-Shaped, and"wave" shaped( Can bend with convex and concave shape for one pcs roofing );
2. Can automatically bending variable width of roofing from 300mm to 600mm;

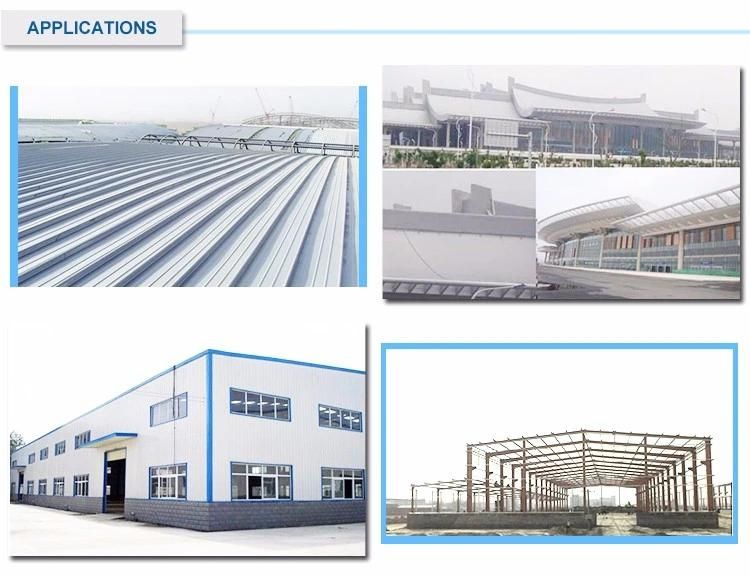

3. Widely use in the large project such as: Railway station, airport, gymnasium etc.
4. Can curving trapezoid roofing and straight roofing.
| Item | Arch Shape Curving Machine or Standing Seam Roof |
| Dimension | 1600*900*2000mm |
| Weight | 1000KGS |
| Motor Power | 4KW |
| Motor Power for Adjustment | 0.75KW |
| Forming Steps | 3steps |
| Curving Speed | 8-16m/min |
| Voltage | 380V/50HZ/3PH |
| Curved Thickness for Steel Roof | 0.6-1.0mm |
| Curved Thickness for Aluminum Roof | 0.6-1.2mm |
| Max. Width of Tapered Roofing to Curved | 500mm |
| Min. Width of Tapered Roofing to Curved | 250mm |
| Min. Curved Radius for Tapered Roofings | Convex Curved 4 meters, Concave Curved 12 meters |
| Min. Curved Radius for Steel Roofings | Convex Curved 8 meters, Concave Curved 10 meters |
| Min. Curved Radius for Aluminum Roofings | Convex Curved 2 meters, Concave Curved 6 meters |
