• Model NO.：Yx51-750
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Model No.：Yx75-900
• Dimension：16000*1800*1500mm
• Weight：20tons
• Hydraulic Motor Power：37kw
• Voltage：220V,60Hz,3pH
• Height of Floor Decking：51mm
• Effective Width：750mm
• Thickness：0.8-1.6mm
• Forming Steps：18
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：10-15sets,Month

Basic Info.

Model NO. Yx51-750 Customized Customized Advantage Work Flexible Condition New Model No. Yx75-900 Dimension 16000*1800*1500mm Weight 20tons Hydraulic Motor Power 37kw Voltage 220V/60Hz/3pH Height of Floor Decking 51mm Effective Width 750mm Thickness 0.8-1.6mm Forming Steps 18 After-Sales Service Engineers Available to Service Machinery Overseas Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/Month

Product Description

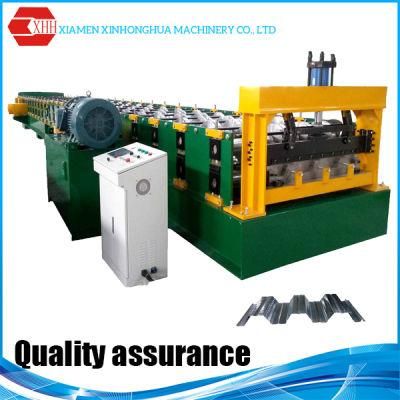

The informations of YX51-750 Floor Decking Machine, Decking Forming Machine and Decking Machine are as follows:
1. Motor Power: 37KW
2. Material Thickness: 0.8-1.6mm
3. Material Width: 900mm
4. Forming Steps: 18Steps

Main Accessories:
A. Main forming machine,
B. 5 tons manual uncoiler,
C. Hydraulic system,
D. Computer controlling system,
E. Hydraulic forming cutter,
F. Run Out Tables (4 sets),
G. Operation Instruction.



1.	Dimension	16000*1800*1500mm
2.	Weight	20Tons
3.	Hydraulic Motor Power	37KW
4.	Voltage	220V/60HZ/3PH
5.	Height of Floor Decking	51mm
6.	Effective Width	750mm
7.	Material Width	1319mm
8.	Thickness	0.8-1.6
9.	Forming Steps	18
