• Model NO.：KLS25-220-530
• Material Thickness：0.5-0.9mm
• Standing Height of Roofing：38mm
• Thickness for Use and Testing Machine：0.6mm,0.7mm
• Effective Width of Roofing：220-530mm
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：8455229090
• Production Capacity：20set,Mon

Basic Info.

Model NO. KLS25-220-530 Material Thickness 0.5-0.9mm Standing Height of Roofing 38mm Thickness for Use and Testing Machine 0.6mm,0.7mm Effective Width of Roofing 220-530mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 8455229090 Production Capacity 20set/Mon

Product Description

Informations of KLS38-220-530 Mimitype Stading Seam Roofing Forming Machines With Adjustment are as follows:
1. Material Thickness: 0.5-0.8mm;
2. Effective Width of Roofing: 220-530mm;

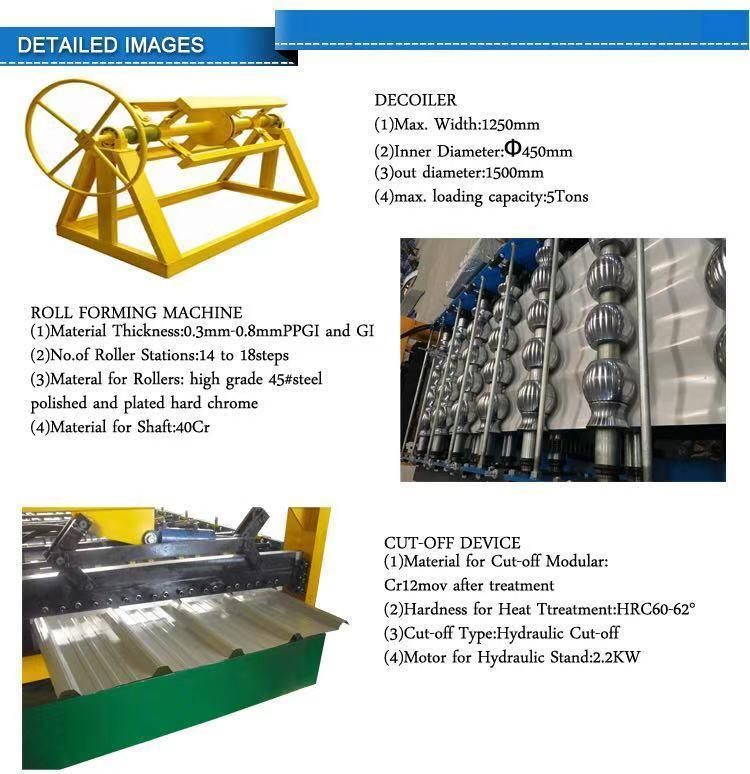

Main Accessories :

1.	Main Standing Seam Roofing Machines
2.	3 Tons Manual Uncoiler
3.	PLC Computer Controlling System
4.	Hydraulic Forming Cutter
5.	Device for adjusting models
6.	Run Out Table (3 units)
7.	Protective Cover
8.	Operation Manual

Usage: Producing standing seam roofing panels.
  1. Size  : 2000*1100*1200mm
  2. Weight : 1500KGS
  3. Voltage : 380V/50HZ/3PH
  4. Motor Power : 2.2KW
  5. Power for Hydraulic : 0.75KW
  6. Forming Steps : 8 steps
  7. Material Thickness : 0.5-0.9mm
  8. Standing Height of Roofing  : 38mm
  9. Thickness for common use and testing machine : 0.6mm, 0.7mm
  10.Effective Width of Roofing  : 220-530mm
  11.Material Width : 316-626mm
