No Press Step Type Ridge Cap Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX160-403
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Product Name：Cap Ridge Roll Forming Machine
- Steel Thickness：0.3-0.6mm
- Decoiler：Manual or Hydraulic
- Transport Package：Sea Packing
- Trademark：SAIBO
- Origin：China
- HS Code：84552210
- Production Capacity：300set,Year
Description
1
2

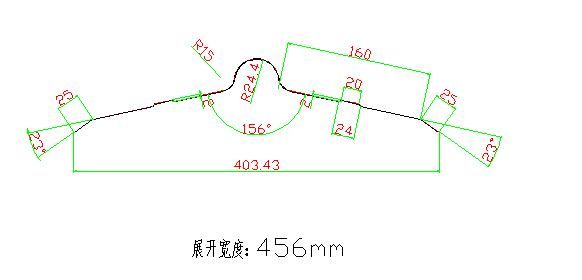

Profile drawing:
Specification of Components
Manual Uncoiler
- Width of feeding: 400mm
- Capability: 3 Ton
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ¢56mm material: SAE1045 with tempering
- To avoid accidents, the driven parts of the machine will have the cover
- Main frame by 350H beam welding
- Machine structure: wall panel
Hydraulic cutting system
- Material of blade/pressing mould:Cr12, 58-62 HRC hardness
- Power by hydraulic,5.5KW
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- Control panel: Button-type switch and touch screen
- PLC brand: Panasonic
- Max stacking length :4m
- Power: by air cylinder
- Max stacking thickness:500mm
- Quantity: 1 unit
