Three Waves Guardrail Roll Forming Machine with Conveyor Table

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Three Waves
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Product Name：Guard Rail Roll Forming Machine
  • Thickness：2.0-3.2mm
  • Power：55kw+22kw
  • Roller Material：Gcr15 with Chrome
  • Transport Package：Sea Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO

Description

Offered specification

1Roll Forming Machine

Guard rail

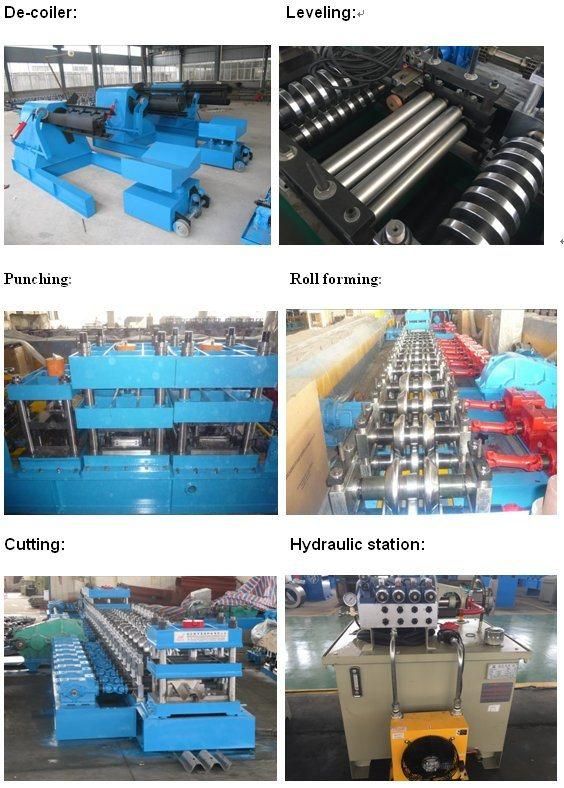

2Material WidthAccording to the profile3Rolling Speed5-12m/min4Rolling Thickness2.0-3.2 mm5Control SystemPLC (Panasonic) as list in the note6Un Coiler10 ton hydraulic de-coiler7Pre-cutting

The first big punching adopt double cylinders, the other three punching adopt single cylinder

8Leveling Station

Upper is 3 rollers, down is 4 rollers (total is 7 stations), material is 40Cr steel, HRC48-52°, 7.5kw

9PunchingFour sets10Cutting modeHydraulic pre-cutting11Material Of CuttingCr12Mov quenching 58-62ºC12Hydraulic Station Power22kw13Hydraulic Pressure25Mpa14Conveyor table3KW, 6 meters15Roller Stations20 stations (according the final design)16Roller Material

GCR15, HRC58-62ºC, coated with chrome

17Shaft Material and DIA¢100mm, material is 45# forge steel18Maim Motor Power55kw19Structure Of The StationsCast iron20Tolerance3m+-1.5mm21Electric Source

380V, 50HZ,3 phase

According to customer's require

22Way Of DriveBy gearbox23Color Of The MachineYellow and blue

Three Waves Guardrail Roll Forming Machine with Conveyor Table Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Three Waves Guardrail Roll Forming Machine with Conveyor Table
About Saibo
Three Waves Guardrail Roll Forming Machine with Conveyor Table
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Three Waves Guardrail Roll Forming Machine with Conveyor Table

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Three Waves Guardrail Roll Forming Machine with Conveyor Table

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
