Guard Rail Roll Forming Machine 2.0-4.0mm Thickness

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：depend on customer′s requirements
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Product Name：Guard Rail Roll Forming Machine
  • Steel Thickness：2.0-4.0mm
  • Power：55kw+22kw
  • Transport Package：Sea Packing
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO

Description

Offered specification

1Roll Forming Machine

Guardrail

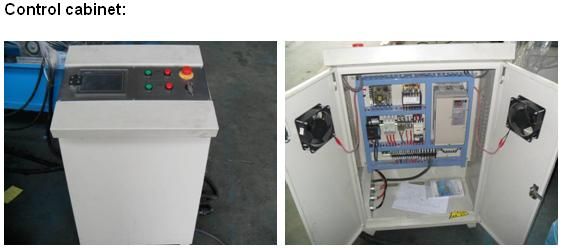

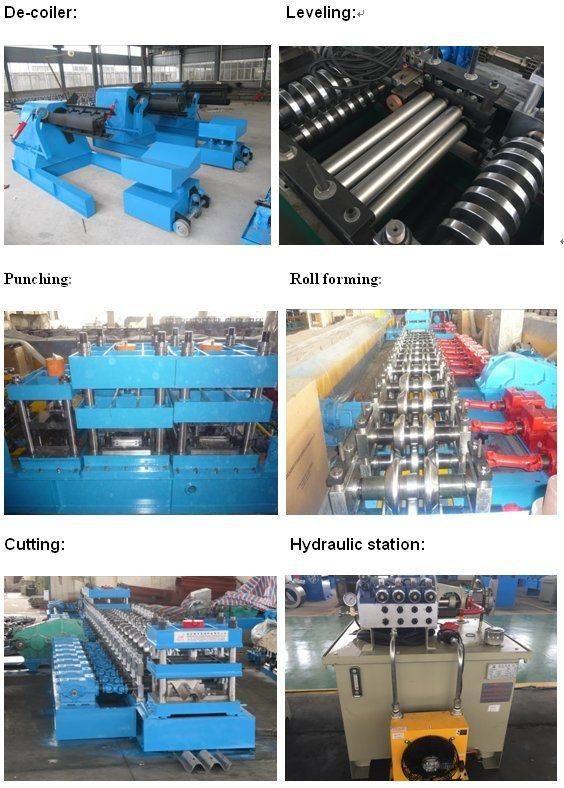

2Material Width470mm/730mm3Rolling Speed15m/min(not including punching and cutting)4Rolling Thickness2.0-4.0mm5Control SystemPLC (Panasonic) as list in the note6Un Coiler10 ton hydraulic de-coiler with coil car7Leveling Station1 station (three rollers over four), 7.5kw9PunchingTwo sets10Roller Stations20 stations (according the final design)11Roller Material

GCR15, HRC58-62ºC, coated with chrome

12Shaft Material and DIA¢120mm, material is 45# forge steel13Maim Motor Power55kw14Hydraulic Station Power22kw15Hydraulic Pressure20-25Mpa16Cutting modeHydraulic stop cutting17Material Of CuttingCr12Mov quenching 58-62ºC18Structure Of The StationsGuide pillar19Tolerance3m+-1.5mm20Electric Source

380V, 50HZ,3 phase

According to customer's require

21Way Of DriveBy gearbox22Color Of The MachineYellow and blue23Container Need1 x40 feet & 1 x20 feet24How to change the profileChange the last three roller stations which is in one cassette


Guard Rail Roll Forming Machine 2.0-4.0mm Thickness
Guard Rail Roll Forming Machine 2.0-4.0mm Thickness

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Guard Rail Roll Forming Machine 2.0-4.0mm Thickness
About Saibo
Guard Rail Roll Forming Machine 2.0-4.0mm Thickness
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Guard Rail Roll Forming Machine 2.0-4.0mm Thickness

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Guard Rail Roll Forming Machine 2.0-4.0mm Thickness

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
