Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

Comflex Industrial Co., Ltd.
  • After-sales Service:Provided
  • Warranty:Available
  • Product Name:Vertical Hydroforming Bellow Making Machine
  • ID:< 100mm
  • Thickness:Max. 1mm for 1 Ply
  • Forming Speed:1800PCS,8h

Base Info

  • Model NO.:Comflex
  • Material:Stainless Steel
  • Hose Application:Elastic Element
  • Delivery Date:30 Days
  • Voltage:380 V,415V
  • Power:6-8kw
  • Machine Color:Can Be Customized
  • Labor Required:1 Person
  • Payment Method:30% as Deposit by Tt
  • Transport Package:Standard Seaworthy Packing
  • Specification:ID6-200
  • Trademark:Comflex
  • Origin:Wuxi
  • HS Code:8462391000
  • Production Capacity:300sets,Years

Description

Basic Info.

Model NO. Comflex Material Stainless Steel Hose Application Elastic Element Delivery Date 30 Days Voltage 380 V/415V Power 6-8kw Machine Color Can Be Customized Labor Required 1 Person Payment Method 30% as Deposit by Tt Transport Package Standard Seaworthy Packing Specification ID6-200 Trademark Comflex Origin Wuxi HS Code 8462391000 Production Capacity 300sets/Years

Product Description

Hydraulic multi pitch metal bellow making machine for making Bellows for measuring instruments
1. Main Parameter
Inner diameter6-25mm 25-35mm
ThicknessMax. 0.15mm*2plies
Max. 0.25mm*1ply
             Max. 0.2mm*2plies
           Max. 0.3mm*1ply
Tube length before forming≤165mm≤360mm
Forming speed1800pcs/8h3000pcs/8h
Power6-8kw6-8kw


Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

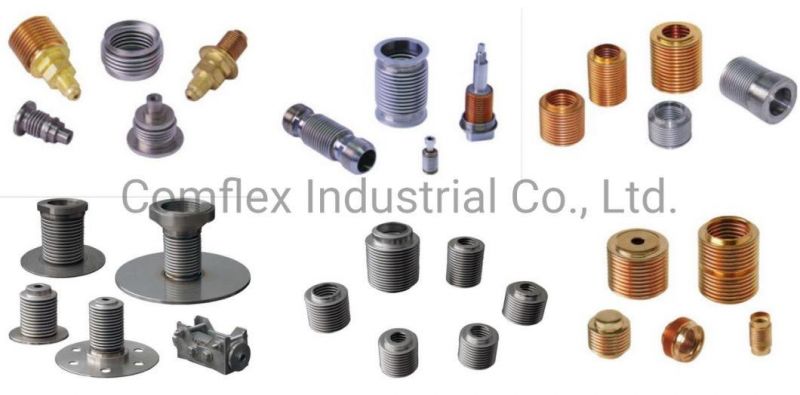

Bellows produced by our muti-pitch bellow forming machineAs a metal bellows for sensitive components, damping components, compensation components, sealing components, valve components and pipeline connectors, it is widely used in automatic control and measuring instruments, vacuum technology, machinery industry, power industry, transportation and atomic energy industry, etc. field. Metal bellows is a kind of pipe with a regular wave-like appearance. It is mainly composed of a bellows part and a matching connection part at both ends. It is mainly used for non-concentric axial transmission that requires a small bending radius, or irregular turns and expansion. , Or to absorb the thermal deformation of the pipeline, or to connect the pipeline to the pipeline or to connect the pipeline to the equipment where it is not convenient to install with a fixed elbow.
Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

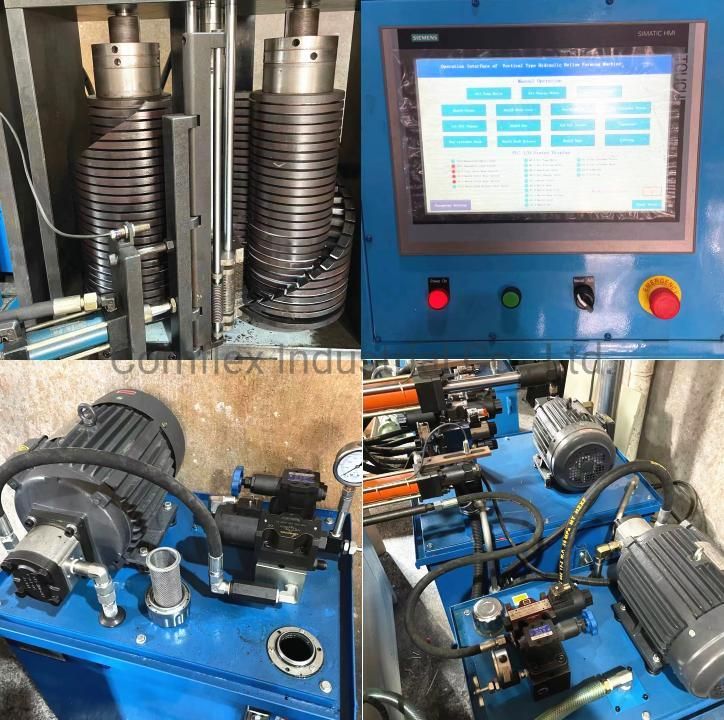

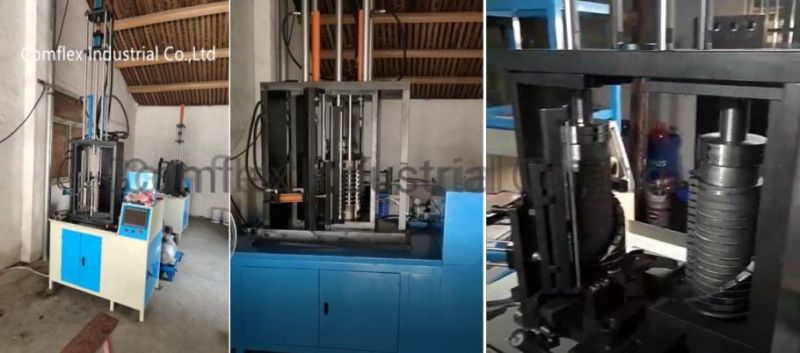

Machine details:
Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

Youtube link for machine running   https://youtu.be/9tYzajay1q4
                                                            https://youtu.be/A5DMCbiOo7Q

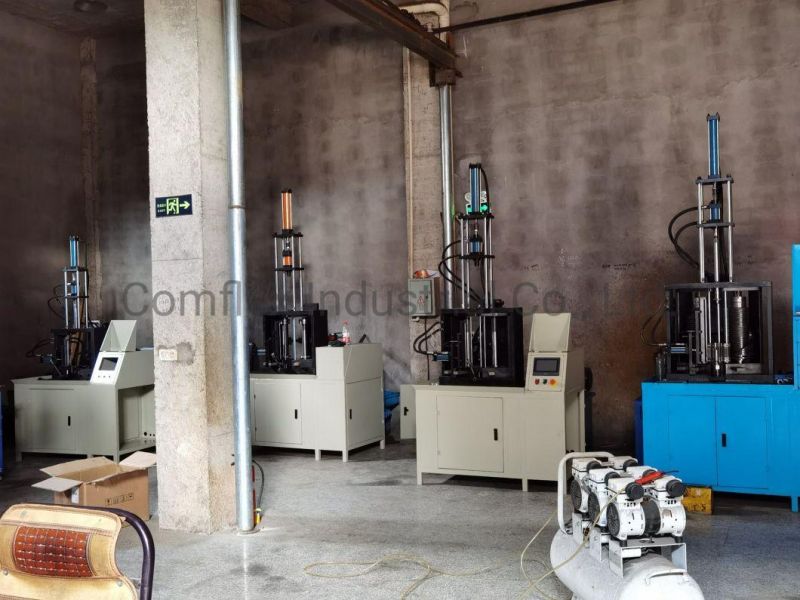

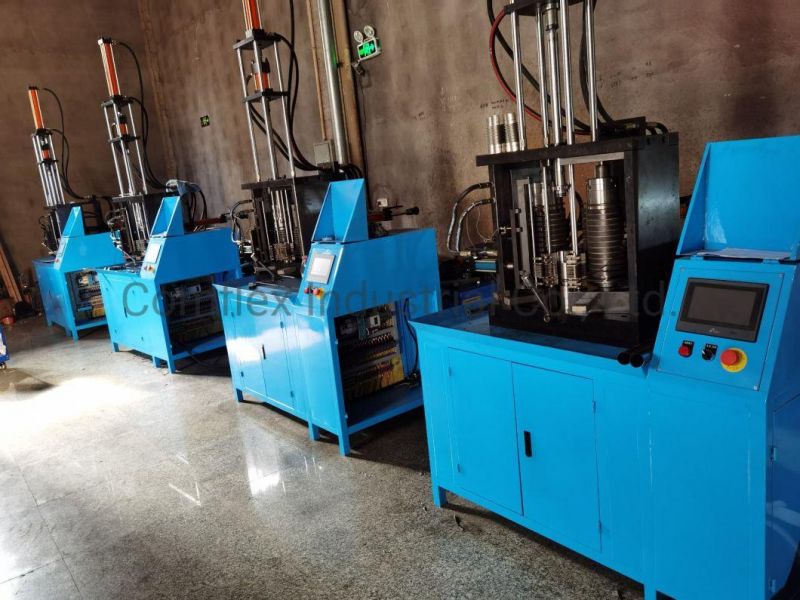

Machine Picture

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

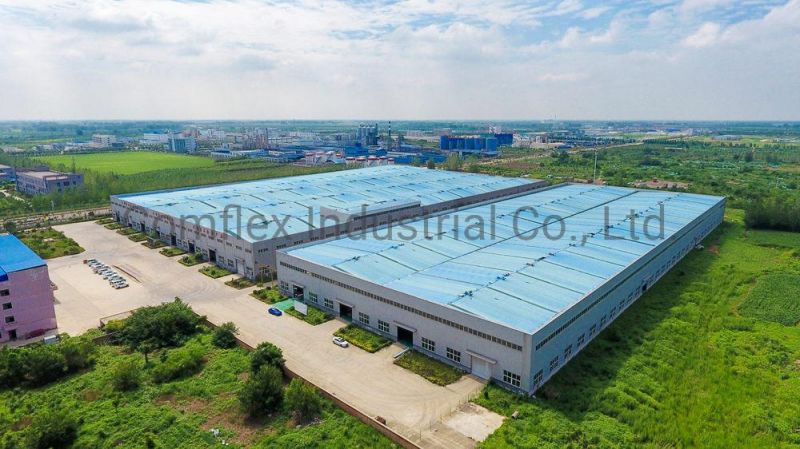

Company Overview

Comflex Industrial Co.,Ltd supply all kinds of machines related to metal hoses, bellows, and fabric expansion joints with more than 30 years. Meanwhile, we can also design and manufacture special equipment according your special requirement. Our machines have been exported to many countries, such as Ukraine,Russia, Viet Nam, India, Canada, Australia, Italy, France, UK, Turkey, etc.. We assure you long-term mutual beneficial cooperation relationship!

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments


Machine Packing & Delivery

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments



Customer Accept Machine Training

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments


Certification

Hydraulic Multi Pitch Metal Bellow Making Machine for Making Bellows for Measuring Instruments




FAQ
Q:Why choose us as your supplier?

A:We are most professional in metal bellow, flexible conduit making machine,interlocked metal hoses making machine with more than 30 years' experience.


Q:What sizes you machine can make?

A: Hydroforming bellow making machine (DN6-200mm)
B: Interlock Hose:ID3-ID450 on different machines




We need to know the following information to quote you correct machinery:

1:What is size of metal bellow/hose you need to make?
2:Material of bellow/hose
3.Application of bellow/hose
