Kenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • After-sales Service：Yes
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：CCC, ISO9001, CE

Base Info

  • Model NO.：DX 828
  • Warranty：12 Months
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Mode：Steel Roof Tile Making Machine
  • Auto：Fully Automatic
  • Feeding Material：Metal Coil
  • Feeding Width：1000mm
  • Feeding Thickness：0.25-0.7mm Thickness
  • Production Speed：4-6m,Min
  • Roll Forming Speed：8-12m,Min
  • Control system：PLC Computer Control with Inverter
  • Size：6500mm*1500mm*1500mm
  • Weight：3.2 Tons
  • Transport Package：Waterproof Package
  • Specification：CE SGS ISO
  • Trademark：DIXIN
  • Origin：China, Hebei
  • HS Code：84552210
  • Production Capacity：50 Sets Per Month

Description

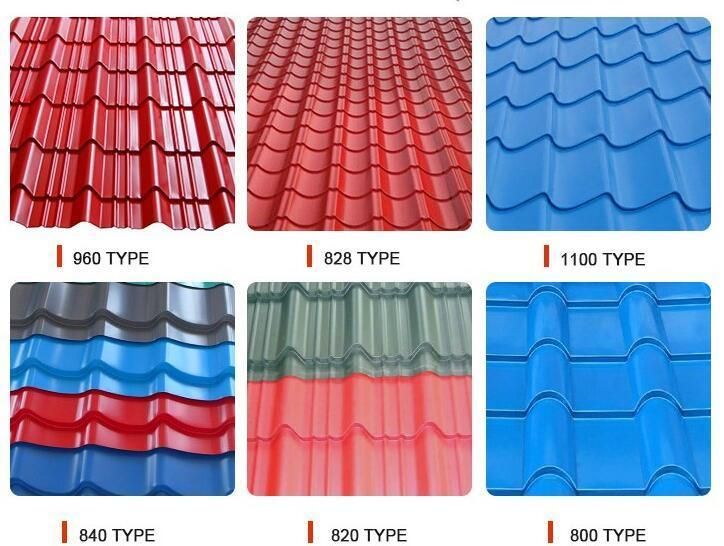

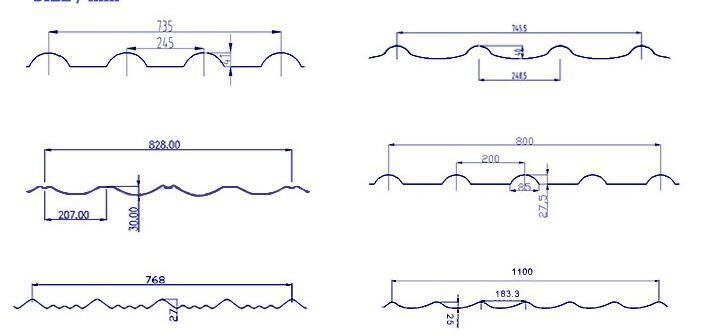

Article No.Item NameSpecification1Processing materialColor steel coil, Galvanized coil, Aluminized zinc coil or as your customized2Processing thickness (mm)0.3-0.8 mm3Material of rollersHigh grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm4Material of shafts45# steel5Diameter of shafts70mm or as your customized6Forming speed3-4 m/min7Under frame350 H-beam8Sidewall16mm9Connect bar25mm, zinc plated10Forming steps13-15 stations11Control systemDelta PLC and Inverter12Suitable power380V, 50 Hz, 3 phase or according to your need13Drive modeChain and sprocket, chain size 1 inch14Main motor5.5 kw15Hydraulic pump station4 kw16Cutting modelHydraulic profile cutting17Dimension of the machine6.5m×1.5mm×1.5m18Weight of the machine3.5 tonsKenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineGlazed tile design (profile):

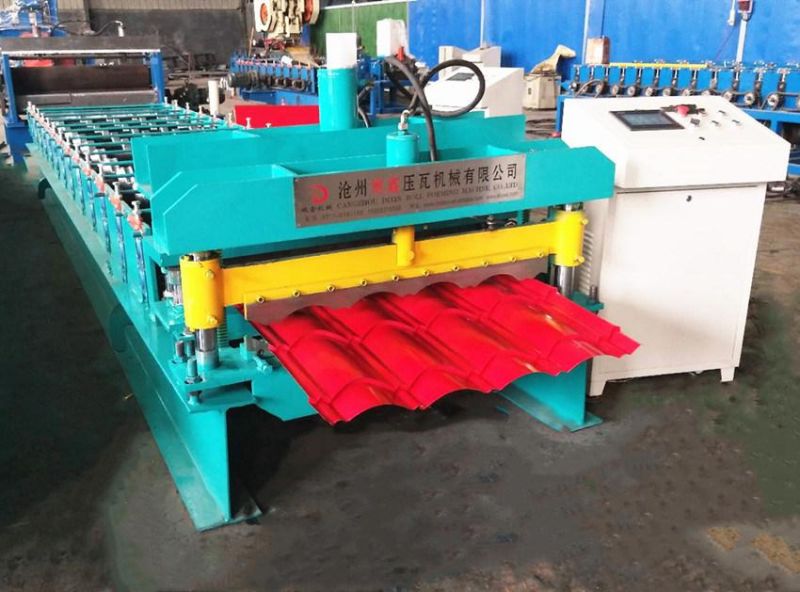

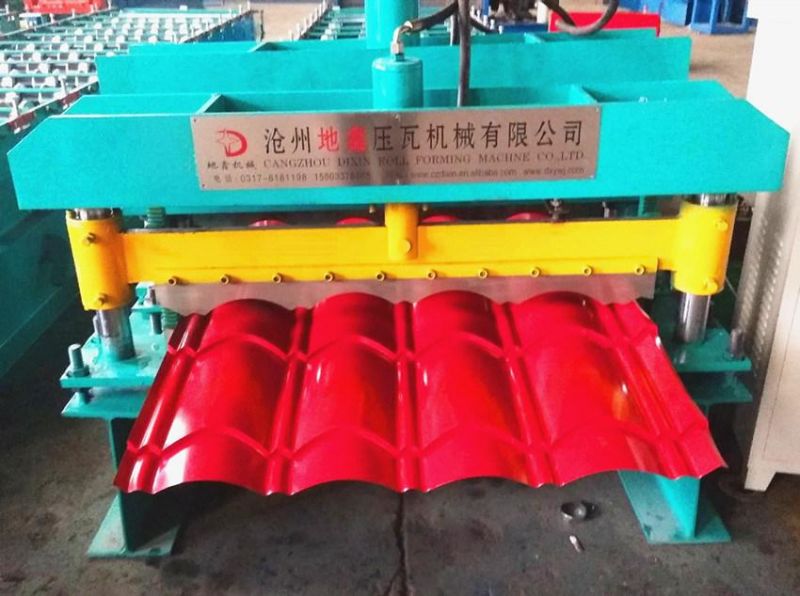

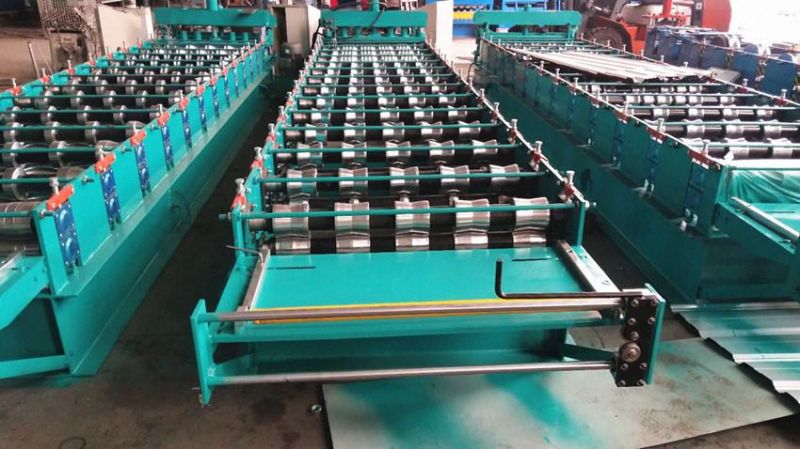

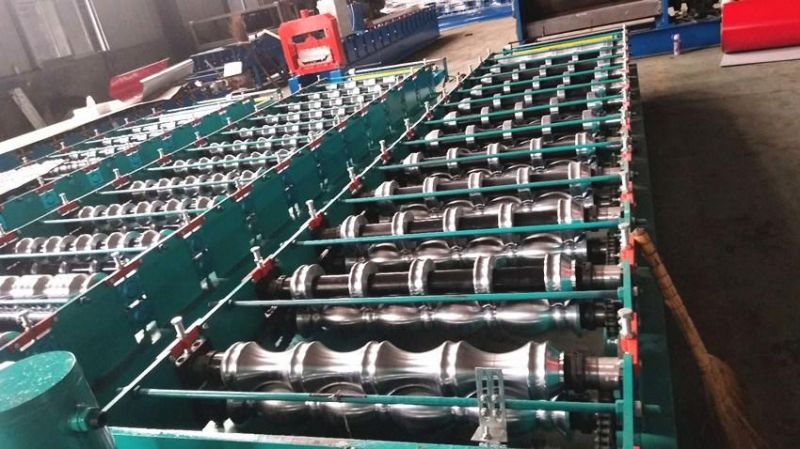

Kenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineKenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineMachine Pictures:
Kenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineKenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineKenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineKenya Popular Glazed Tile Roof Steel Roll Forming Machine /Steel Roof Tile Making MachineCompany Information

Cangzhou Dixin Roll Forming Machine Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.



The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
