Gw Carbide-Tisin Coating of Carbide Square End Mill Cutter
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Certification:ISO9001, ISO 9001
- Customized:Customized
- Application:Metal Cutting Machine, Metal Processing Machinery Parts, Metal
- Process Usage:Metal-Cutting CNC Machine Tools
- Movement Method:Contour Control
- Control Method:Semi-Closed Loop Control
Base Info
- Model NO.:ball nose, corner radius, flat, roughing
- Numerical Control:CNC,Mnc
- Processing Precision:0.01~0.02(mm)
- Performance Classification:MID-Range CNC Machine Tools
- Condition:New
- HRC:45, 55, 60, 65, 68
- Coating:Tisin, Tialn, Altin, Ticn, Blue Nano
- Types:Corner Radius, Roughing, Ball Nose, Flat
- Delivery Time:7-10 Days
- Helix Angle:30, 35, 45
- Place of Origin:Zhuzhou, China
- Samples:Free
- Shank Type:Straight Shank, Groove Shank
- OEM:Accepted
- Characteristics:High Precision, High Hardness etc
- Transport Package:Plastic Box, Standard Export Carton
- Specification:33x23x19cm
- Trademark:GW
- Origin:Zhuzhou
- HS Code:8207709000
- Production Capacity:50000PCS,Month
Description
Basic Info.
Model NO. ball nose, corner radius, flat, roughing Numerical Control CNC/Mnc Processing Precision 0.01~0.02(mm) Performance Classification MID-Range CNC Machine Tools Condition New HRC 45, 55, 60, 65, 68 Coating Tisin, Tialn, Altin, Ticn, Blue Nano Types Corner Radius, Roughing, Ball Nose, Flat Delivery Time 7-10 Days Helix Angle 30, 35, 45 Place of Origin Zhuzhou, China Samples Free Shank Type Straight Shank, Groove Shank OEM Accepted Characteristics High Precision, High Hardness etc Transport Package Plastic Box, Standard Export Carton Specification 33x23x19cm Trademark GW Origin Zhuzhou HS Code 8207709000 Production Capacity 50000PCS/MonthProduct Description
1.Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-30 mm
Diameter of rods 4-30 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-12
HRC45 | HRC55 | HRC60 | HRC65 |
Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2 | Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 | Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 | Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER

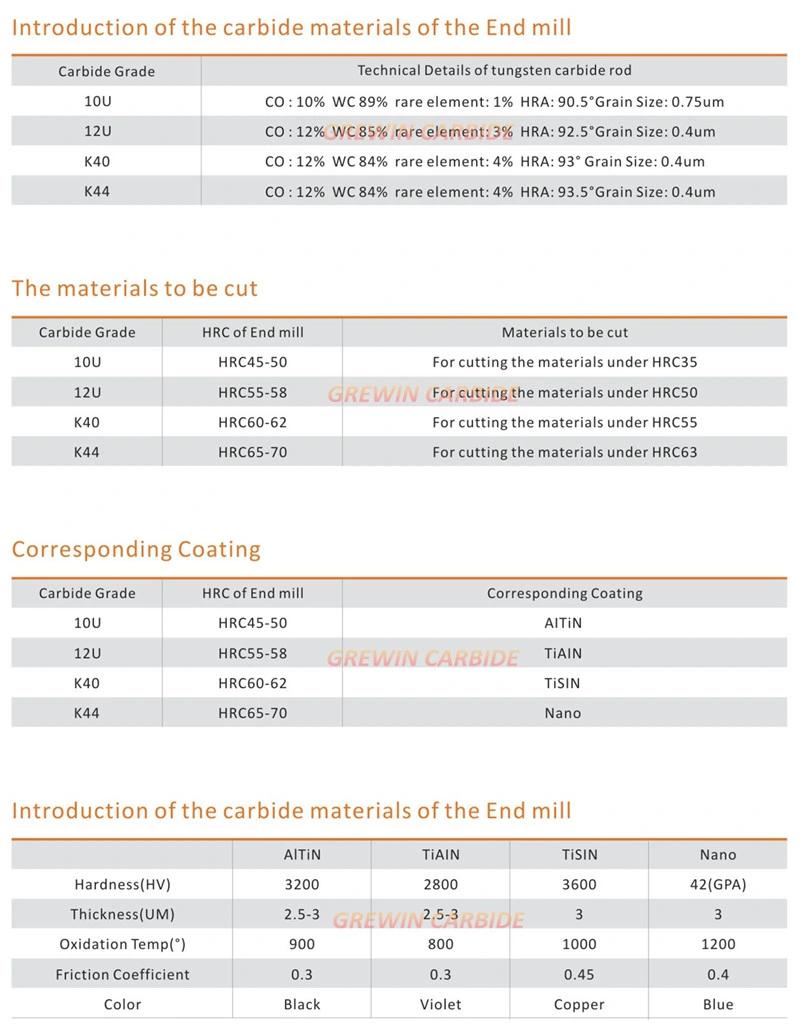

3. Coating
Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
AiTiN | Black | <600°C | 3-5 | 3500 | 900 °C | 0.3 |
TiXco | Copper | <600°C | 3-5 | 3500 | 1500 °C | 0.4 |
NaNo | Blue | <600°C | 3-5 | 3800 | 1200 °C | 0.4 |
AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
4. Payment
T/T, Western Union, Paypal (Choose your convenient way)
5. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
6. Packing

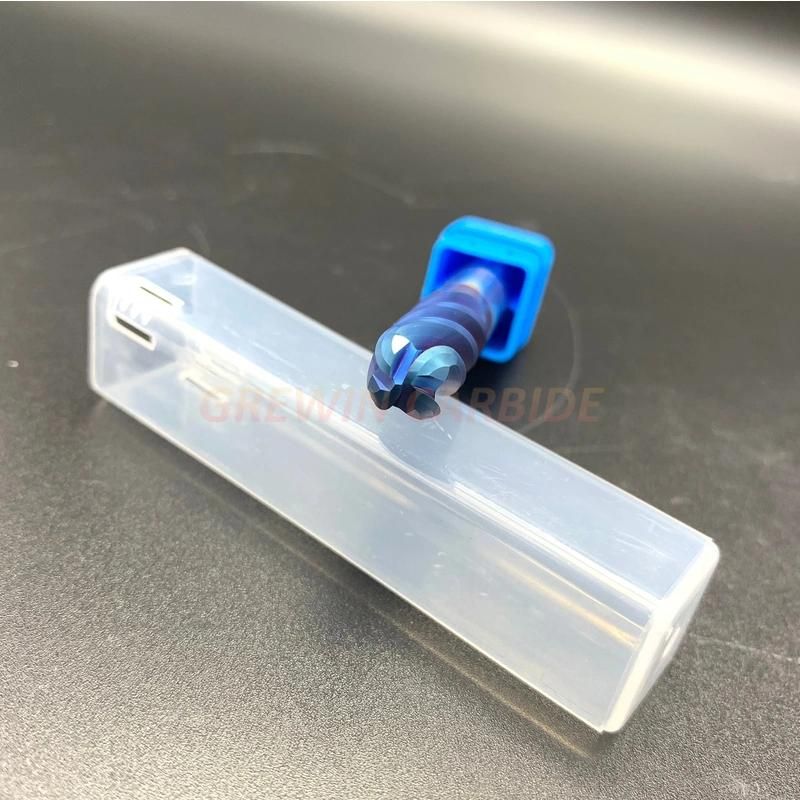

Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group
7. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

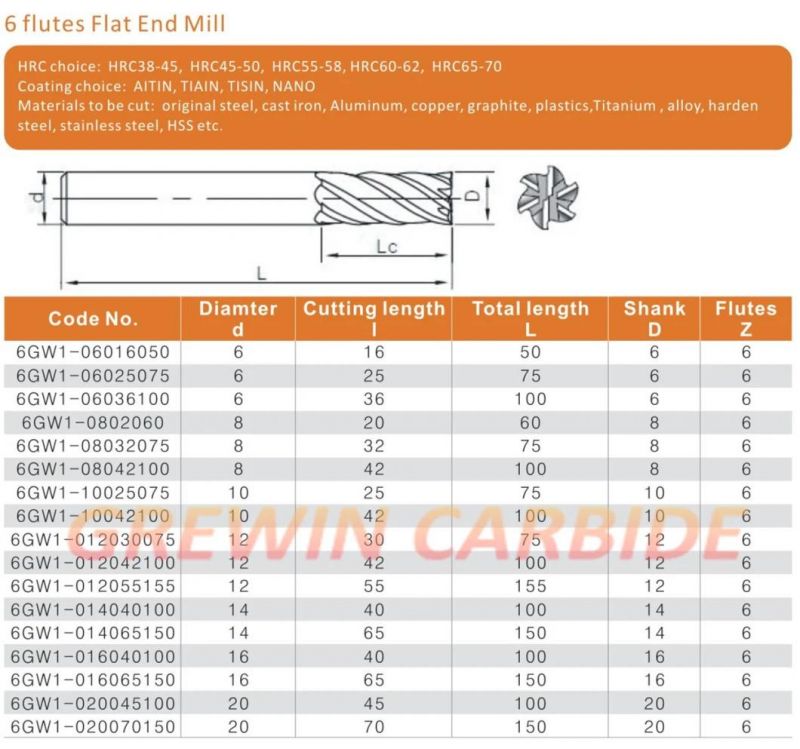

8.Standard Sizes
Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
4.0×10×4D×50L | 4 | 10 | 4 | 50 |
4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |

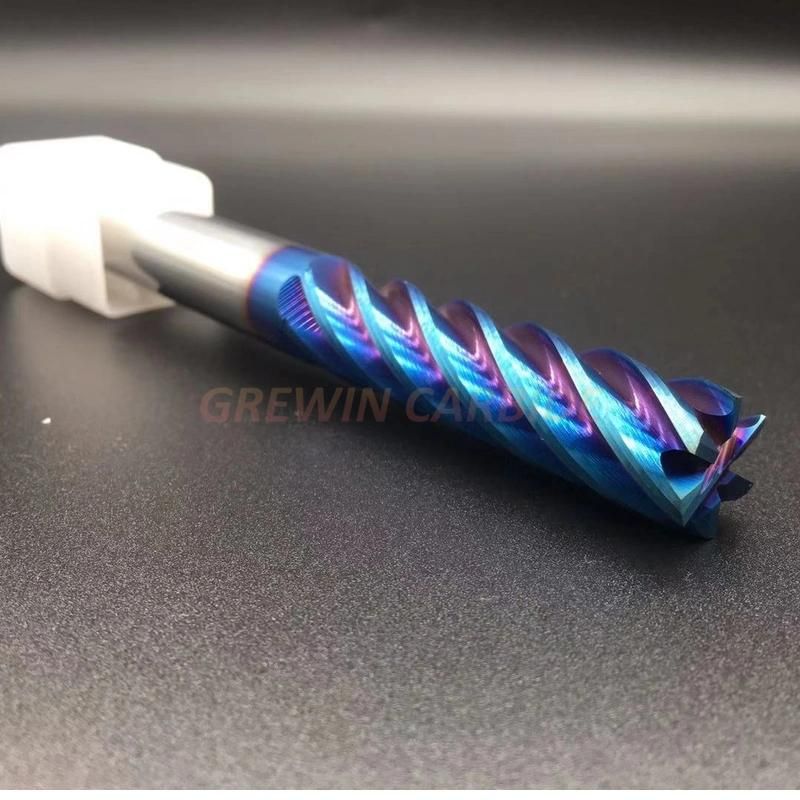

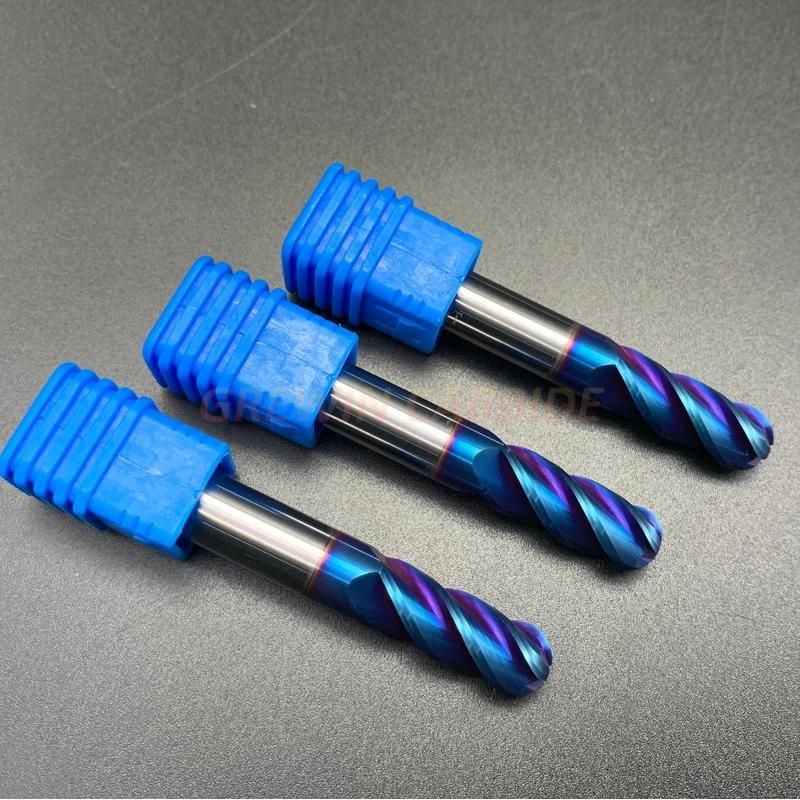

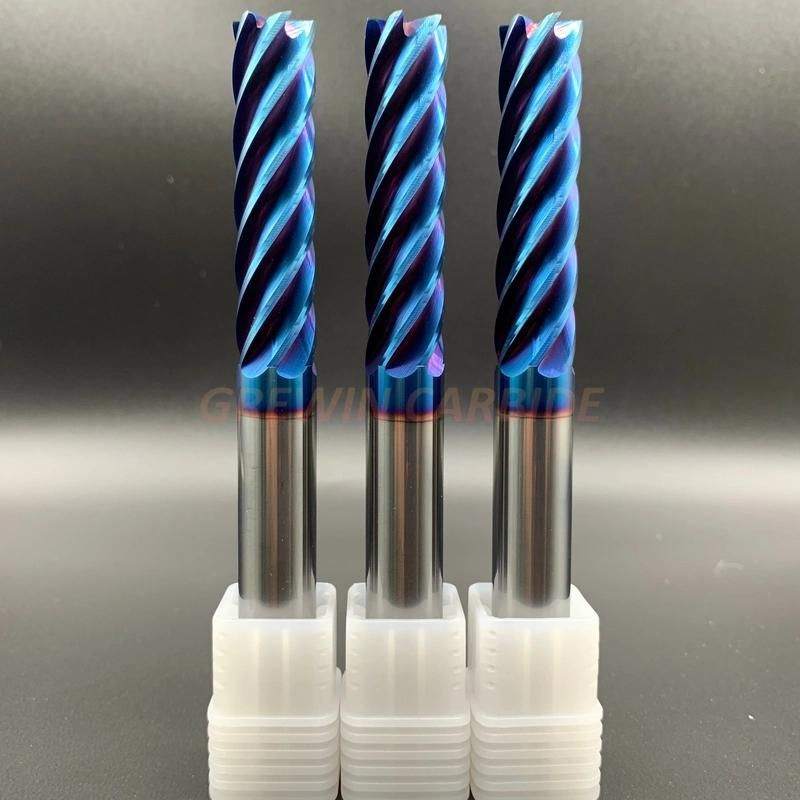

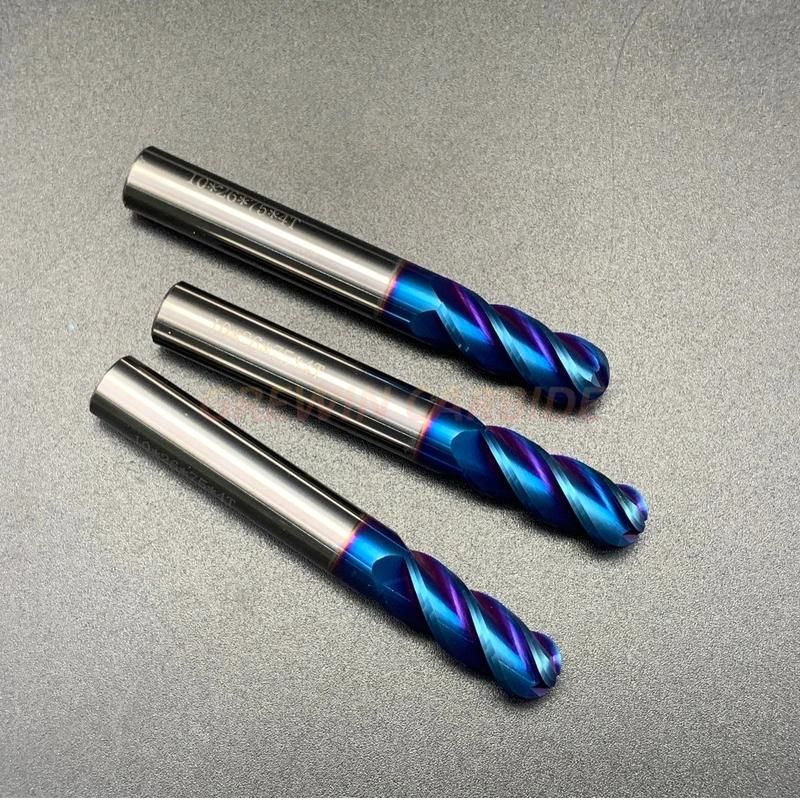

9. Product Show
10.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
11. Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
