• Model NO.：LT-1600
• Warranty：24 Months
• Customized：Non-Customized
• Condition：New
• Transport Package：Exporting Packing
• Trademark：Baohua
• Origin：China
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. LT-1600 Warranty 24 Months Customized Non-Customized Condition New Transport Package Exporting Packing Trademark Baohua Origin China Production Capacity 1000 Set/Sets Per Month

Product Description

Function

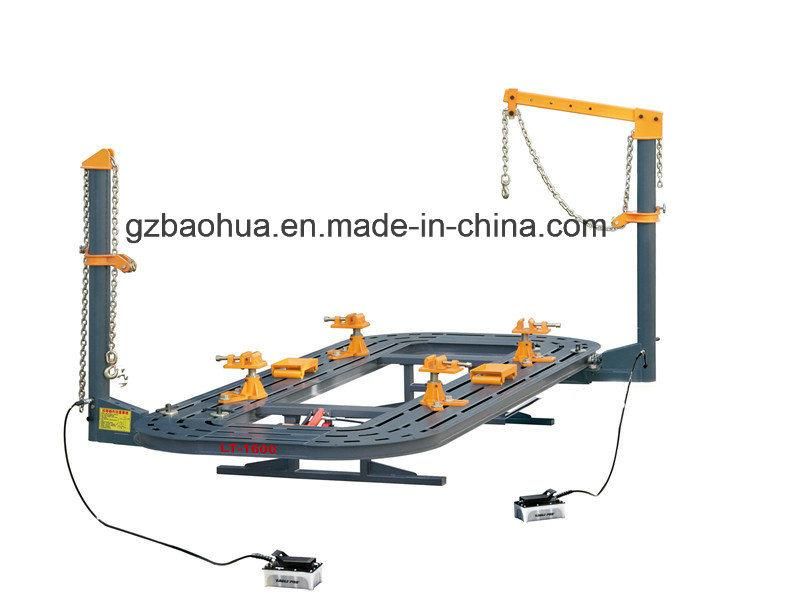

1.Rectangular tube type work platform ,high strength steel plate,auxiliary light and flexible supporting legs,so that any accident car ,get off more convenient.

2.More work hole position on the platform ,fixture and convenient operation ,no work blind no obstacles to the bottom of the bottom correction,easy to achieve the elimination of deformation stress protection without damage.

3.Two lata along 360 degrees around the rotary working platform.Unique wheel rotation ,the TA's movement is more stable,more flexible ,on the body of the pull ,press ,push,the top of the full range of operation.

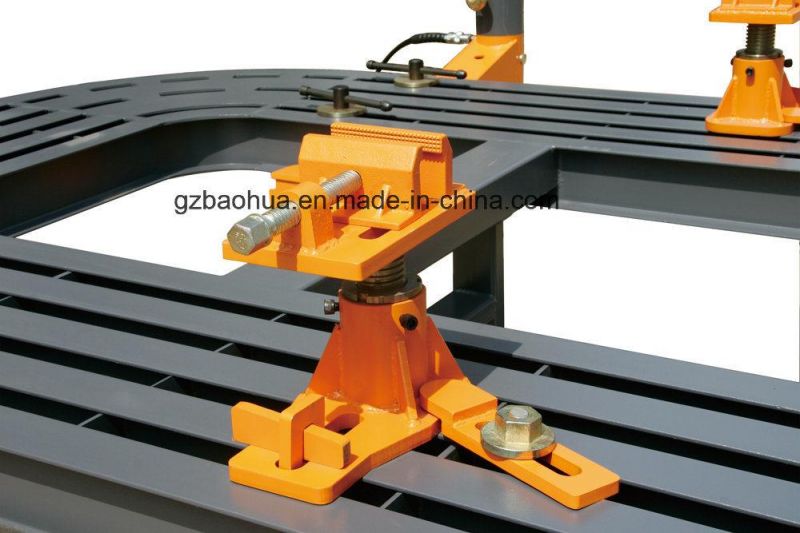

4.General body fixed clamp ,offer forging,heat treatment ,high strength .long service life,and can arbitrarily adjust the height and angle

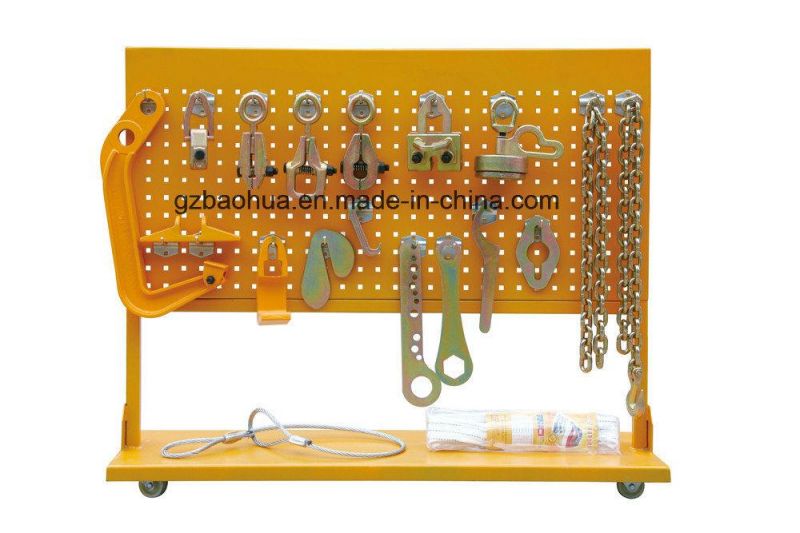

5.Rich in sheet metal tools and accessories ,easy to achieve auto body repair.

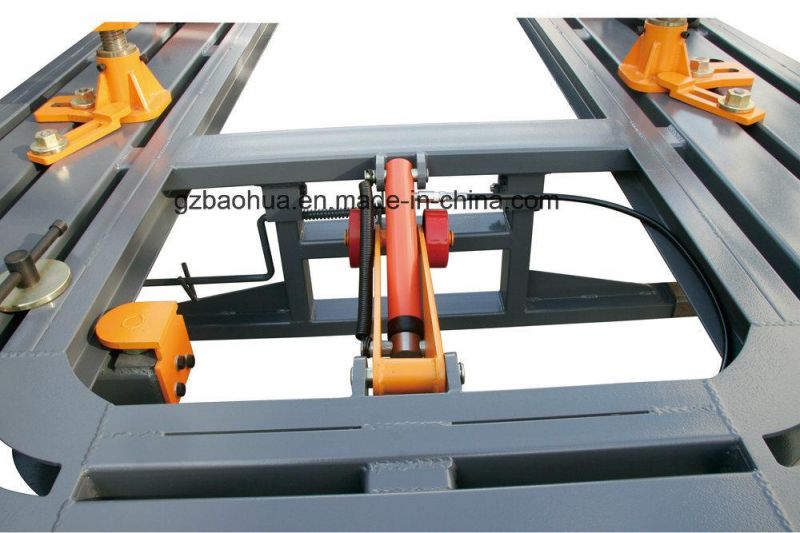

6.Hydraulic pump according to the domestic maintenance environment power is strong durable.







Specifications

Length	5200mm/5600mm
Width	2200mm
Height	560mm
Air supply Required	0.8Mpa
Hydraulic Power	70Mpa
Power Pulling Capacity	100KN
Padius of Pulling	360°
Maximum load	3500Kg
