• Model NO.：Colo-800D
• Quality：100% Promise
• Transport Package：Carton
• Specification：Hopper feed type
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. Colo-800D Quality 100% Promise Transport Package Carton Specification Hopper feed type Trademark COLO Origin China HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

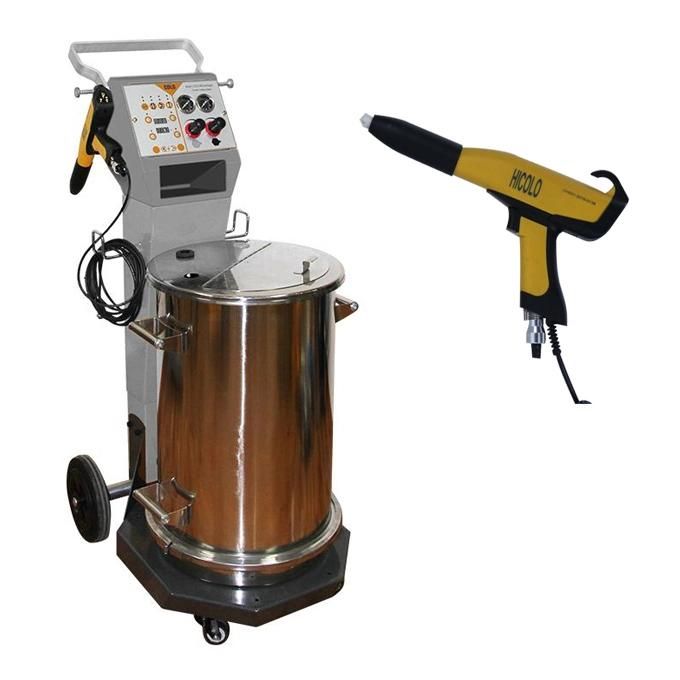

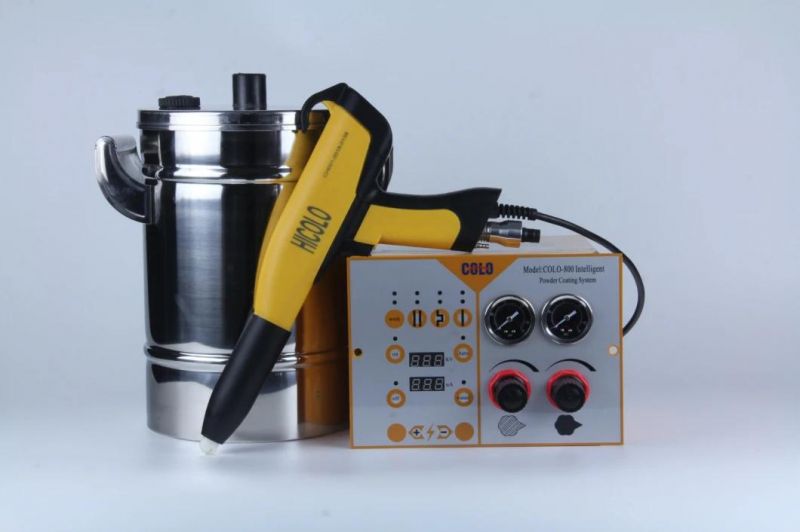

Powder Coating Spray Gun Machine with 50L hopper for Wheels
800D Only in COLO with Excellent Quality -with 50L powder hopper.
It is digital intelligent type,the controller has one-touch intelligent opration button good for flat,complicated parts and recoat parts,it can realize a high powder coating efficiency rate and pefect coating result.It is the one of our hotest model.
Right now it has a promotion activity,buy 10pcs can get one free.



Specification
1.Digital control system, 3 preset intelligent model for flat,complex coating and recoating.
2.Auto and manual mode ,more flexible and quicker for coating diferent parts.
3.Could supply a large amount of powder under low pressure.
4.The inside circuit region is independent sea, avoiding the powder incoming.
5.Good quality dust-proof powder switch, good quality press key.
6.Control the useless power strictly, low heating value, work continuously and steadily.
7.Beautiful look with light weight
8.Excellent coating gun quality COLO-08 spray gun
9.50L powder hopper for enough powder storage ,also we have diferent size hoppers
Applicaton:
-For coating thermosetting powders on the parts, powder coating such as: polyester powder,epoxy powder,mix    powder etc.
-Coating parts like: car rim,bicycles,steel pipes,gas cyclinder,steel furniture,lock,gas cylinder etc.

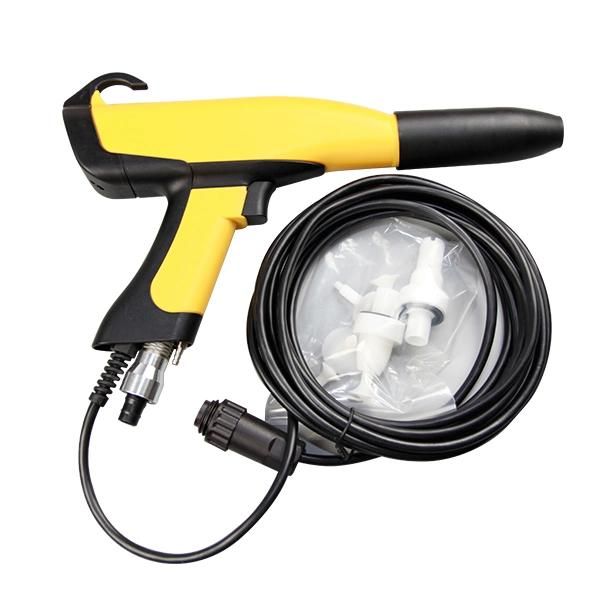

COLO good looking &quality 08 gun




For Small Hopper
All of our machines can equipped with different hoppers




All spare parts for these machine are available after sales,
Include PCB board,cascade,nozzles,hoppers,powder pumps etc.
Technical Parameters
Electrical data
Power range                                  220V
Frequency                                     50HZ
Temperature range in use                      0 ºC  - +40 ºC
Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       220kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic data
Maximum input-air pressure ........                 10kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.3g/N m3
Maximum oil vapor content of compressed air   .....     0.1mg/ m3
Maximum compressed-air consumption...…            11 m3/h

Our Factory
We are a typical Chinese supplier and specialized in the research, development and production of powder coating equipments, such as powder coating machine, powder coating booth, powder curing oven, reciprocator,powder coating gun replacement parts.We insist in offering superior quality products and efficient service.If you are interested in our products,please feel free to contact us,thank you!
