Roller Shutter Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Door Shutter Roll Forming Machine
- Transport Package：No Packing
- Specification：CE, SGS
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
Specification of the material1
Suitable Material Galvanized steel up to 235Mpa 2
Width of the raw material According the profile 3 Thickness 1.2mm
2.Machine Detailed Parameters:

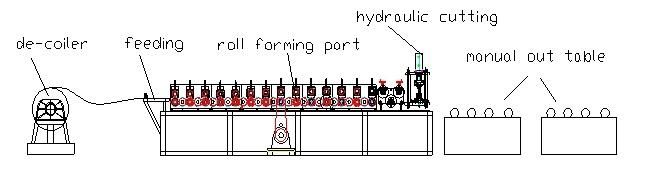

3. The Chart of Process Flow
4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation
5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
2.Machine Detailed Parameters:
| 1 | Machine structure | Wire-electrode cutting structure |
| 2 | Total power | Motor power-7.5kw Hydraulic power-4kw |
| 3 | Roller stations | About 14 stations + one station for rectify (according the final design) |
| 4 | Productivity | 0-15m/min |
| 5 | Drive system | By 1.2 inch single chain |
| 6 | Diameter of shaft | ¢65mm solid shaft |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
| 8 | Container need | 1x20GP container |
3. The Chart of Process Flow
4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation
5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
