• Model NO.：Roll Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Blue and Yellow
• Speed：Max 30m,Min
• Steel Thickness：2.0-5.0mm
• Main Power：22kw
• Transport Package：Suitable for Sea Packing
• Specification：CE, SGS
• Trademark：Saibo
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. Roll Forming Machine Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Speed Max 30m/Min Steel Thickness 2.0-5.0mm Main Power 22kw Transport Package Suitable for Sea Packing Specification CE, SGS Trademark Saibo Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

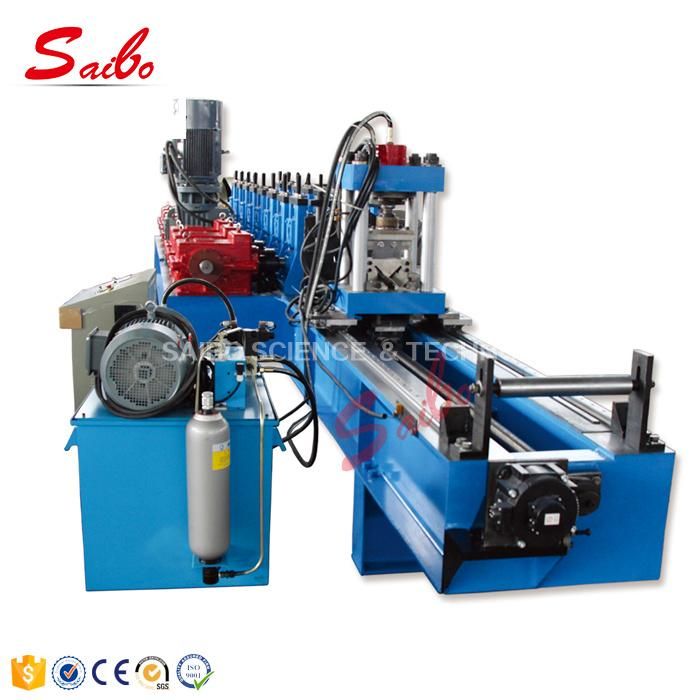

High Speed Angle Roll Forming Machine (up to 5mm)
1.The production flow of equipment
De-coiler→ feeding & guide→roll forming→straighten→post track cutting →manual out table

2. Feeding & guide→roll forming→straighten→post track cutting
(1)Feeding
Armed adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Entrance table-guide: Adjustable
Entrance width: 35-130mm (according the final design)
Entrance and guide roller: Diameter is ¢ 76mm, material is sae1045, HRC48-52° Surface with chrome
(2)Forming Section
Profile steel thickness 2.0-5.0mm
Main motor power: 22Kw, AC motor, side motor to save space (Brand: Siemens which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station: 8stations +1 station of straighten
Roller material: Gcr15, 58-62, HRC hardness and chrome plated surface
Shaft diameter: ¢ 85mm material: SAE1045
Machine roll forming speed: 0-30m/min
The min. Roll forming Speed: 0m/min
The maximal roll forming speed: 30m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
Transmission: By gear box, joint with coupling, gear inside box structure is bevel gear
Machine stand adopt cast iron
(3)Straighten device:
One station after roll forming,
Function: For revise the end product up and down/ left and right to straightness
Roller material: Roller material: GCR15 quenched 58° -62° Finishing turning CNC
Adjust by hand wheel
To avoid accidents, the drive parts will be covered by protective cover
Post track cutting system
Cutting after forming: Cut the sheet after roll forming to required length
Cutting Type: Hydraulic servo motor tracking cutting
Servo motor: 4kw
Material of blade: Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 11KW with Storage tank
Working pressure: 25Mpa adjustable
Length measuring: Automatic encoder length measuring, brand: Omron
The cutting sequence is also contained and controlled by the same PLC program installed on the above.
Tolerance of length: 3000mm+/- 1.5mm

3.Hydraulic station:
Hydraulic power: 11kw
Working pressure: 25Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
