• Model NO.：836mm
• Power Source：Hydraulic Pressure
• Feature：Automation

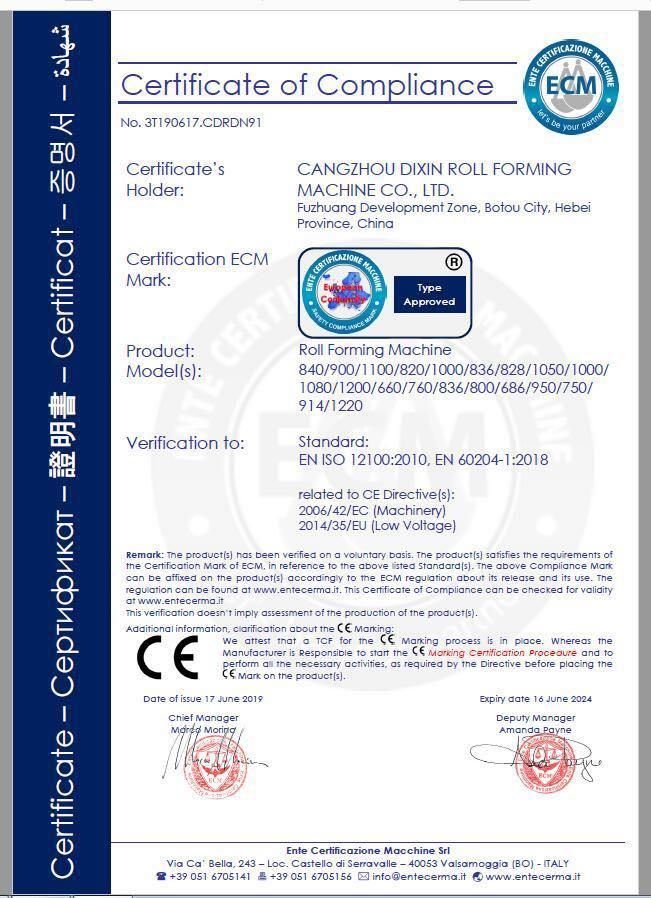

• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Corrugated Forming Machine
• Processing Material：Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：836mm
• Feeding Width：1000mm
• Main Motor Power：4 Kw
• Pump Power：4 Kw
• Speed：8-12m,Min
• Shaft Diameter：75mm
• Product Name：Corrugated Forming Machine
• Transport Package：Water Proof Package
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Month

1.Processing material

aluzinc/galvanized steel/colored steel coil

2.Material thickness

0.3-0.8mm

3.Feeding width:

1000mm

4.Effective width

836mm

5.Main motor power

4kw

6.Pump station power

4kw

7. Shaft diameter

75mm

8.Forming steps

13steps

9.Main frame

300H Steel frame

10. Side plate thickness

16mm

11.Roller material

45# forged steel, with hard chrome plating

12.Control systerm

(Taiwan brand)Delta PLC control system with touch screen

13.Cutting blade material

Cr12

15. Transmission way

1 inch chain drive

16. Machine size (mm)

About 6500*1500*1300mm

17. Machine weight

About 3.5ton

18.Power supply

380v,3phase,50hz or accodring to customer request

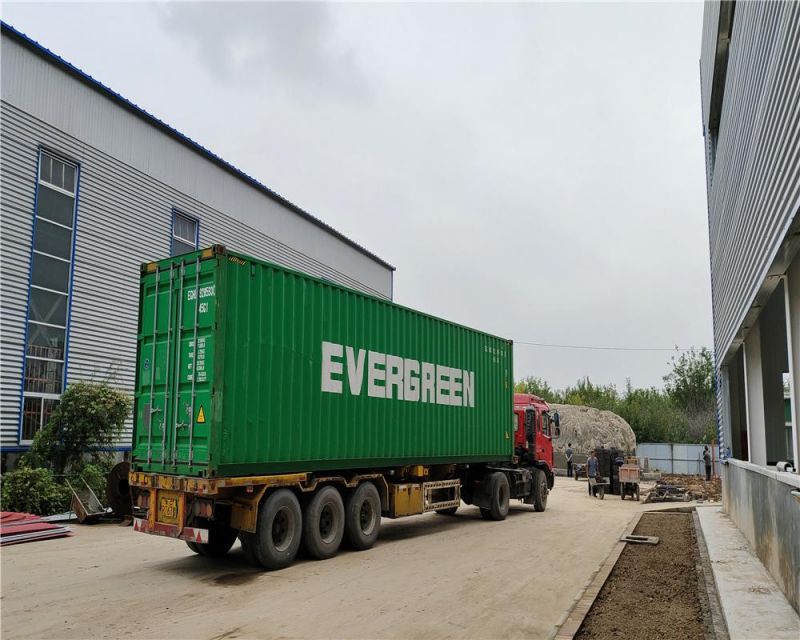

Packing and shipping details

Container packing of the line suitable for overseas shipping.Free packaging for you: Standard export packing:20feet or 40 feet GP container ; main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, control box will be packed with carton box.

1.Main  rectangular profile cold roll forming machine  package by Plastic film;

2.Main rectangular profile cold roll forming machine spare parts package by paper box;

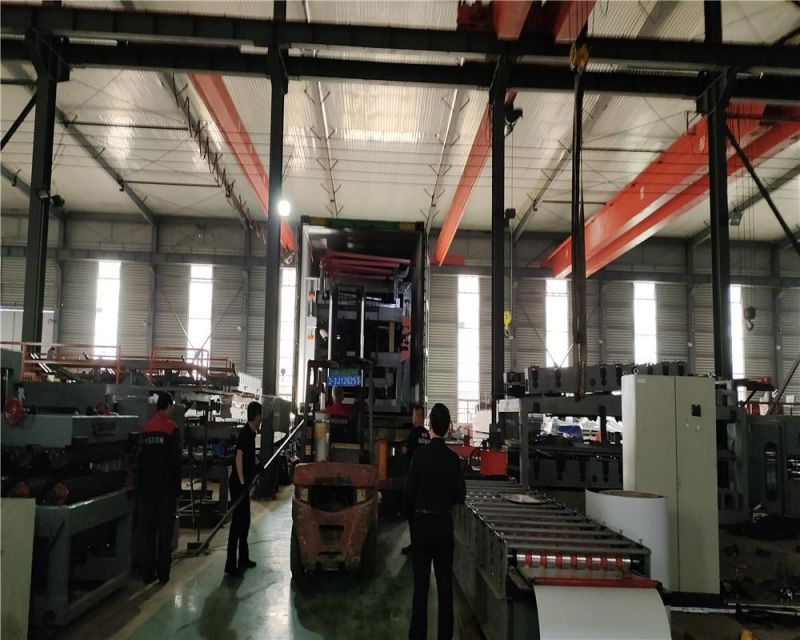

3.We have professional technicians for loading.Guaranteed the goods load into container without any damage;

4.Transportation: rectangular profile cold roll forming machine need one 40 feet container to hold;

5.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you

Customer inspection

Our factory Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.

    The machines produced by our factory have been sold worldwide such as Zimbabwe, South Africa, Kenya, Zambia, Botswana, Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets.

Our company has always been adhering to the principle of integrity first, quality first, over the years, we have always put quality and reputation in the first place, every machine, our technical staff choose the best quality raw materials, because good raw materials can produce high-quality machines,And our company has passed the quality certification and testing,We believe that your choice is correct, because our company will never let our customers down.

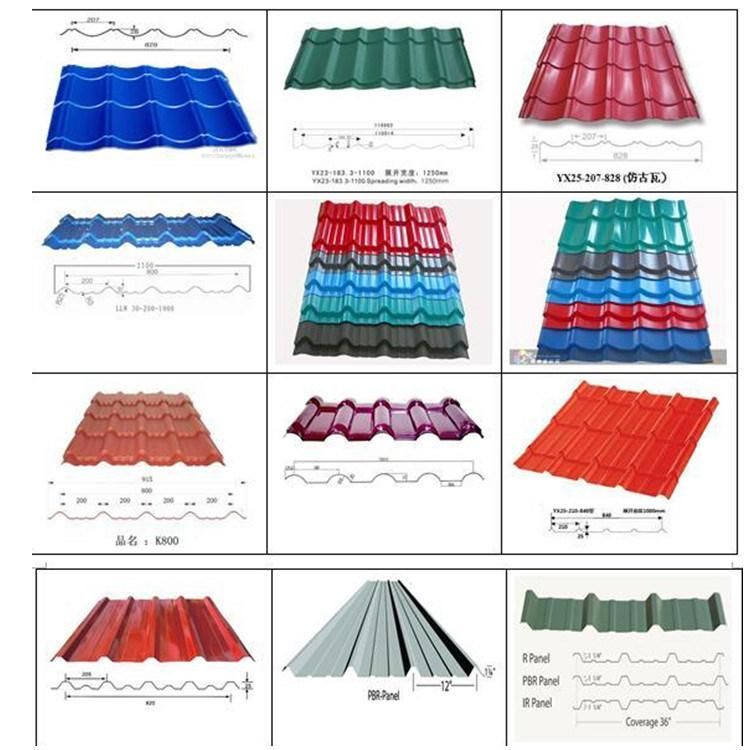

Some others samples for your choose




Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.



Q2. Do you have after -sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.



Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.



Q4. What will you do if the machine is broken?

A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.



Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

About Our Roll FormingMachine, If you have any need and questions , please don't hesitate to contact us . Bella (Mob:0086-18231723279) at here 24 hours waiting for you . Looking forward to you join us
