• Model NO.：steel door roll forming machine
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Steel Door Roll Forming Machine
• Suitable to Process：Color Steel Plate
• Width of The Plate：According to Customer′s Request
• .Rollers：12rows
• .Dimensions：3.5*1.35*1.51m
• Power：3+3kw
• Thickness of The Plate：0.3-0.8mm
• Diameter of The Roller：40mm
• Weight：About 1.5t
• Control System：PLC Control
• Transport Package：Simple Waterproof Fit for Ocean Ship, Need a 20 Gp
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou City, Hebei Province
• HS Code：84552210
• Production Capacity：20 Set Per Year

No.
                    Main Parameter of  Roller Shutter Door Roll Forming Machine
1
Suitable to process
Color steel plate
2
Width of the plate
165mm
3
Rollers
13 rows
4
Dimensions
4500*1350*1510mm
5
Power
3+3kw
6
Thickness of the plate
0.3-0.5mm
7
Productivity
15m/min
8
Diameter of the roller
Φ70mm
9
Weight
About 1.5T
10
Voltage
380V 50Hz 3phases
11
Material of the cutting plate
Cr12
12
Hydraulic
40#
13
Processing precision
Within 1.00mm
14
Control system
PLC control

Industrial Process And Component Specification
No

          Technical Specification
1
Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way
The steel coil is uncoiled by hand. Loading capacity:1.2T, Inner diameter: 500-508mm
2
Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process
It can guarantee that the products are neat
Parallel and everything is uniformity
Please refer to the equipment regulation to know the function of locate angle iron.
3

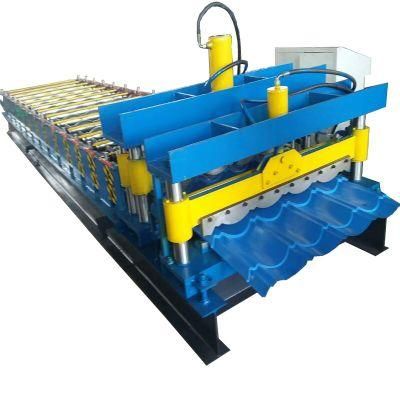

Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding
Plate surface smooth and not easy to be marked when it is being stamped
4
Shearing Mechanism
Flying saw cutting , Smooth surface without burr
5
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Packaging & Shipping
1.We have professional technicians for loading
  Guaranteed the goods load into container without any damage.
2.Transportation : Machines need one 20 feet container to hold
FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc
