Construction Materials Double Deck Roof Tile Making Machinery
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
Base Info
- Model NO.：metal forming machine
- Feature：Precision
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Profile Roll Forming Machine
- Color：Customized
- Motor：4 Kw
- Cutting：Hydraulic Pressure
- Roller Material：45# Steel
- Roller Shaft：45# Steel
- Speed：8-15 Meters,Min
- Method：Fully Automatic
- Main Frame：350 H Steel
- Install：Engineer Can Go
- Transport Package：Simple Waterproof Fit for Ocean Ship, Need a 20 Gp
- Specification：ISO CE BUV
- Trademark：DIXIN
- Origin：Botou City, Hebei Province
- HS Code：84552210
- Production Capacity：20 Set Per Year
Description
Machine details
roller material
high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material
high grade NO. 45 carbon wrought steel
cutting blade
Cr12 mould steel with quenched treatment
diameter of shaft
75mm or as your requirement
main frame
350 H steel
forming steps
productivity
10-15m/min
hydraulic station power
4 KW
hydraulic pressure
10-12MPa
appearance size
8700mm*1500mm*1500mm
hydraulic oil
40# hydraulic oil
Electric tension
380V 50 Hz 3 Phase or as your requirement
Cut Mode
Hydraulic forming after cutting off
Cutter materia
Cr12 Heat Treatment
Electronic control system
PLC, Touch Screen, Encoding counter
Color
Blue, green or yellow or as your requirement
Rolling material
45# steel,roller surfaces polishing, hard plating

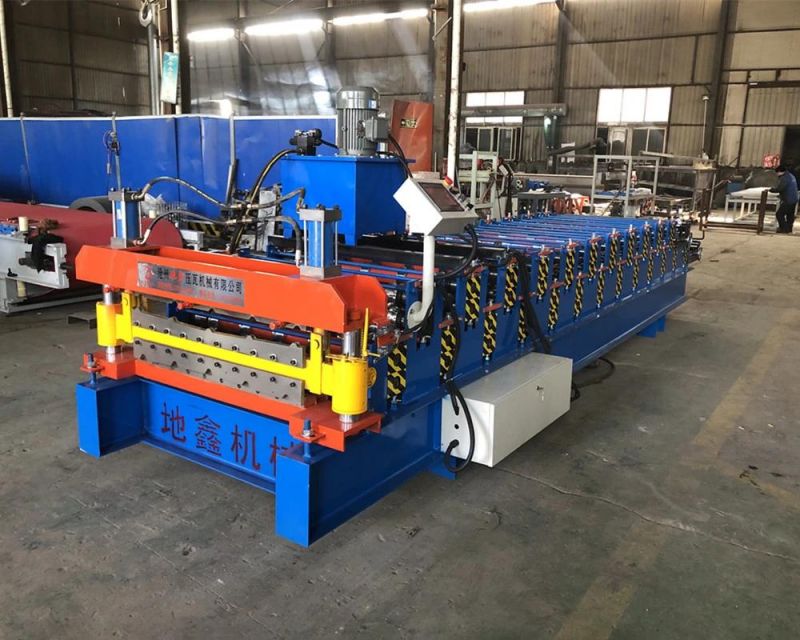

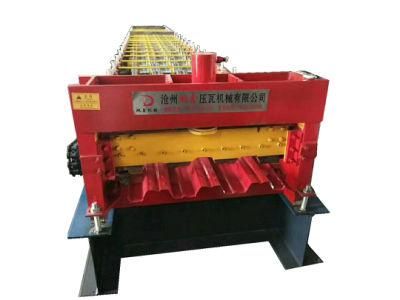

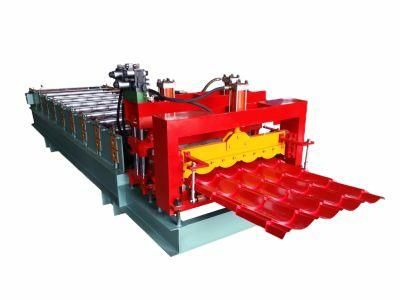

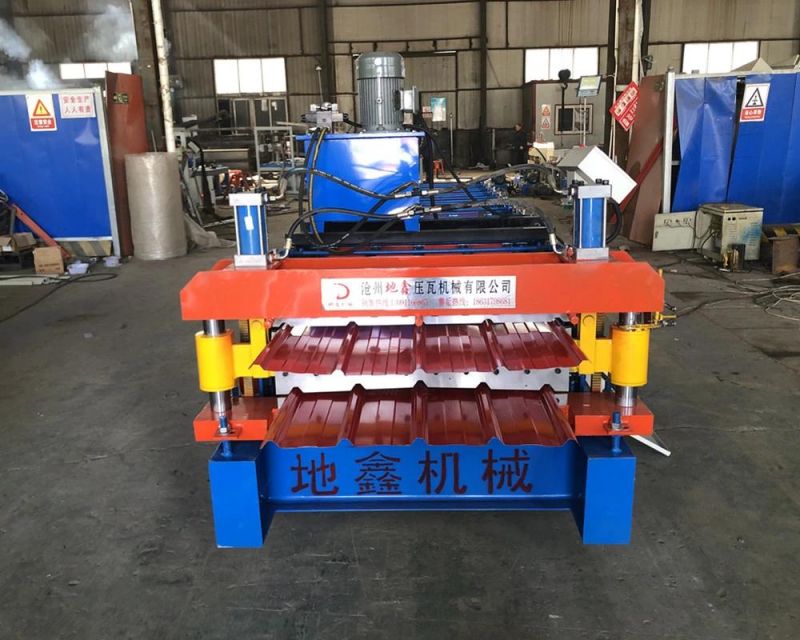

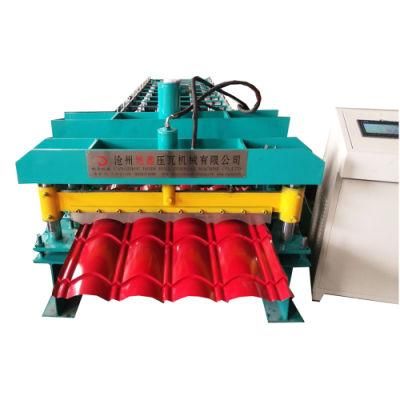

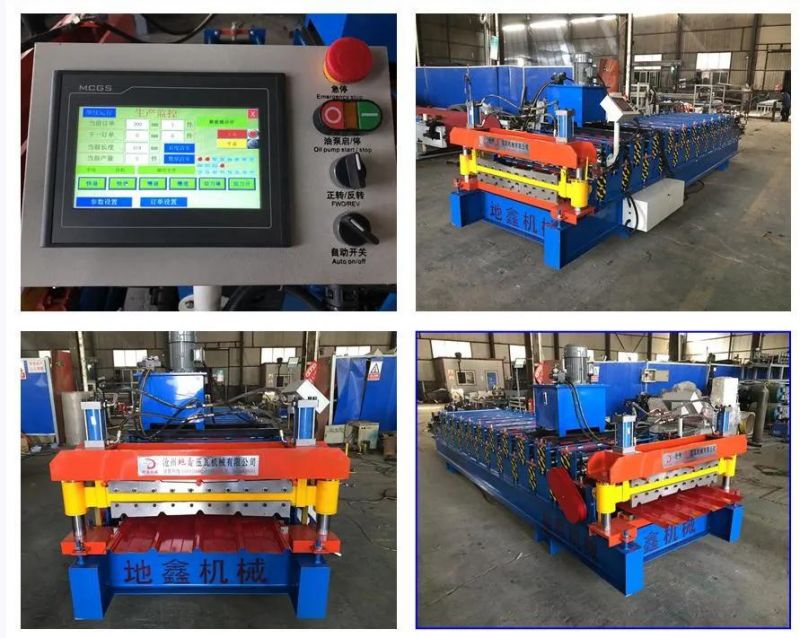

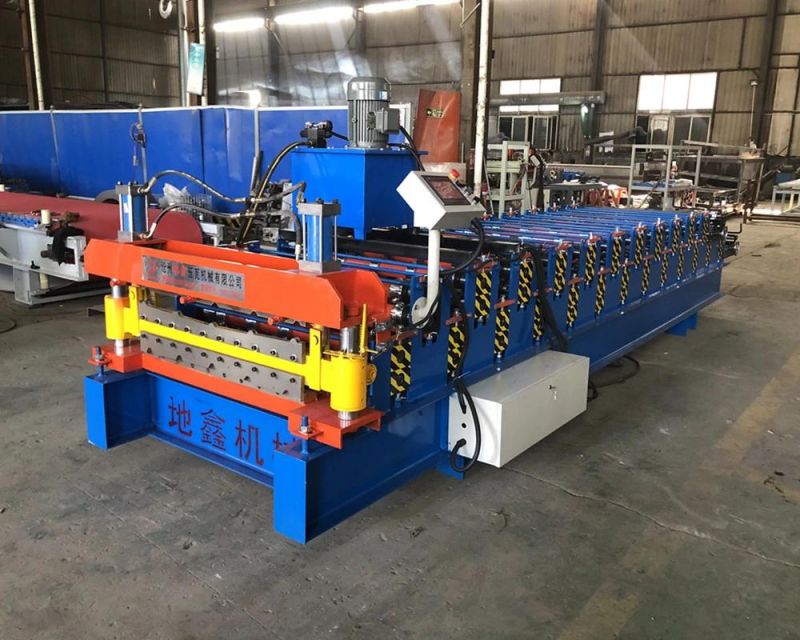

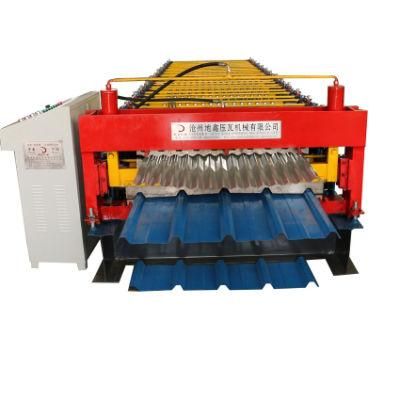

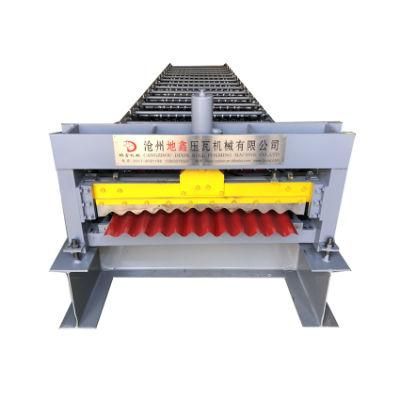

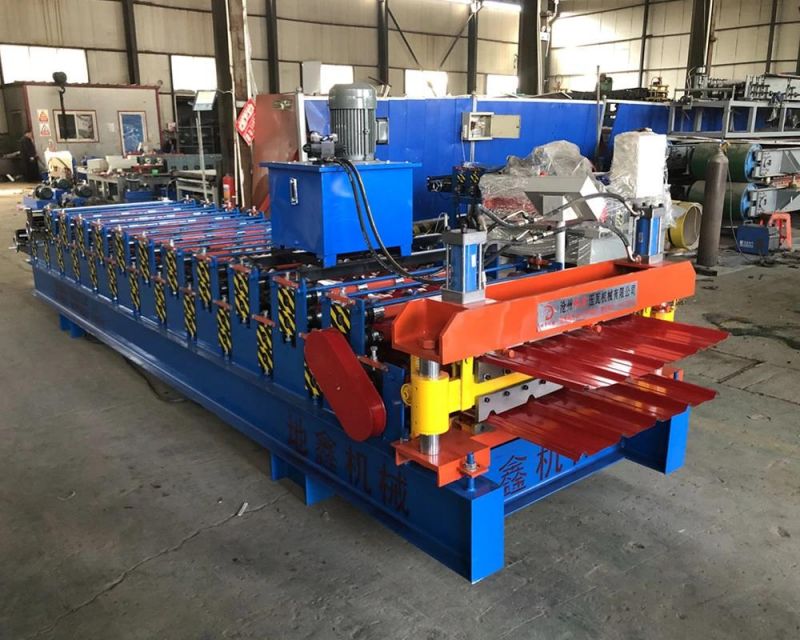

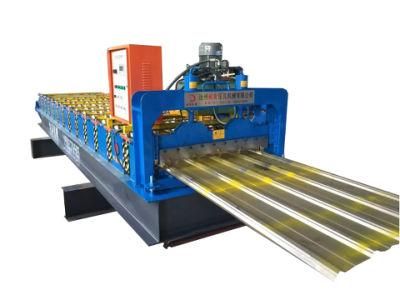

2.Some machine pictures for your reference.

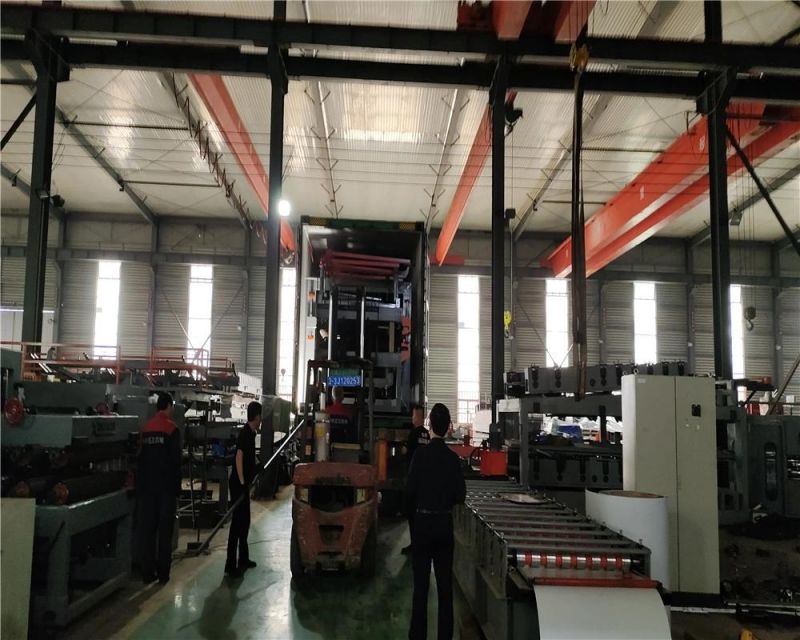

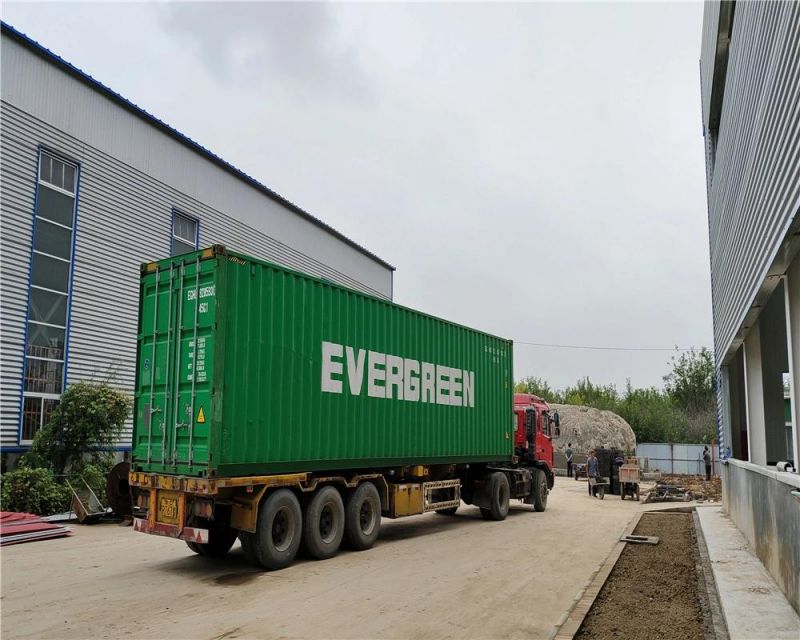

Packing and shipping
1. One 40ft container for loading one set machine with manual decoiler;2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our factory Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.
The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets.
Some FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after -sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
