• Model NO.：FF-800D-C
• Condition：New
• Brand：FF
• Packaging：Carton,Wood Case
• Dilivery：2days After Depoist
• After Sales Services Provided：Engineer Ia Available
• Power Range：220V
• Frequency：50Hz
• Operational Method：Manual
• Packing Weight：21kg
• Transport Package：Carton
• Specification：CE ISO
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. FF-800D-C Condition New Brand FF Packaging Carton/Wood Case Dilivery 2days After Depoist After Sales Services Provided Engineer Ia Available Power Range 220V Frequency 50Hz Operational Method Manual Packing Weight 21kg Transport Package Carton Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

Product Descirption

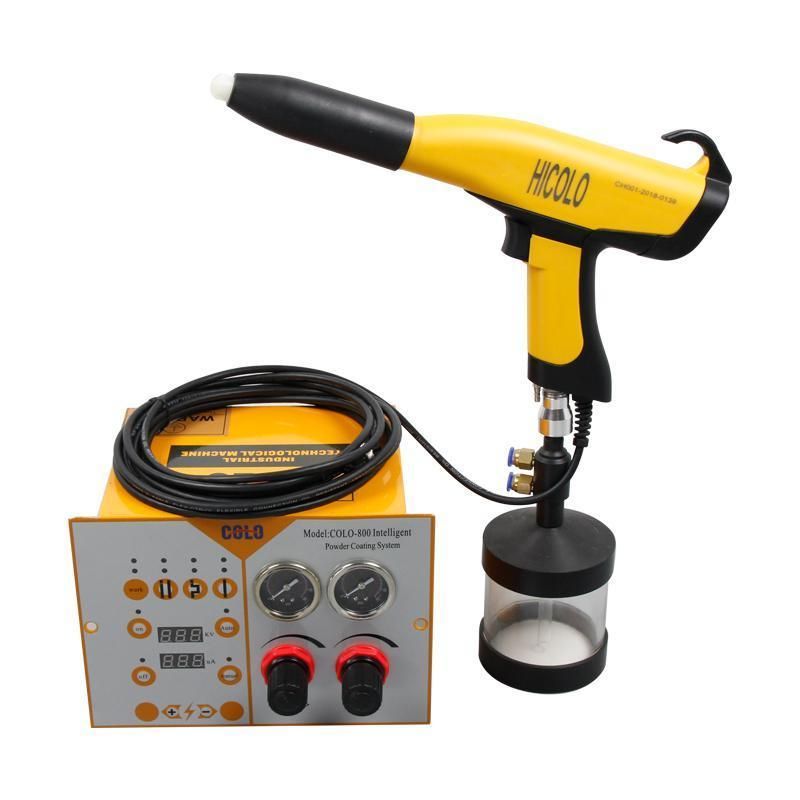

FF-800D-C Manual Lab Powder Coating Machine for Testing Job is suitable for small testing job in powder coating industry, The cup can hold 500ml powder


Technical Data

Power range                                   220vFrequency                                     50/60HZ
Temperature range in use                      -10 ºC+50 ºC

Powder Gun
Gun weight:    .........                    500g
Rated output voltage ...…                      24VDC
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic technical spec
Maximum input-air pressure ........                 8kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   .....     0.1ppm
Maximum cimpressed-air consumption...…            13.2 m3/h

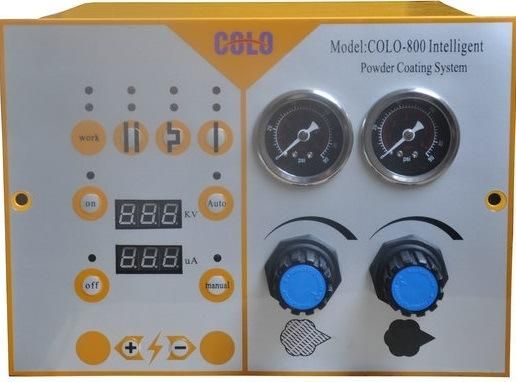

Control Unit

Function:1 Flat parts coating 2 Corner parts costing 3 Recaoting.
Suitable for most of work-pieces.
Auto mode, choose function1,2,3.
Manual mode, to manually adjust current and Voltage.

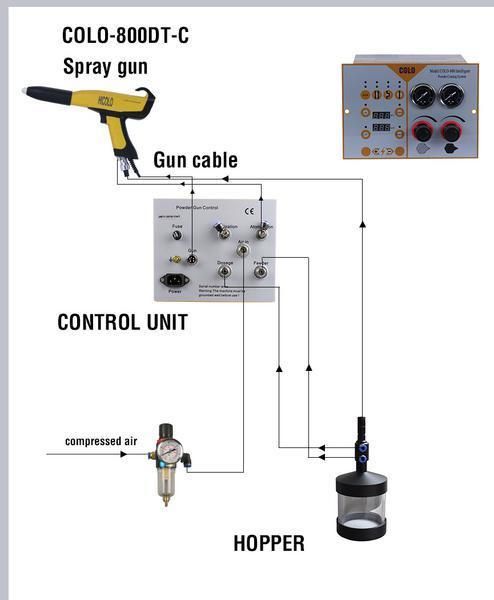

Connection Guide



Application
Before coating & after coating



Note:The distance between gun and work piece could effect film thickness and easiness to coating

Example: Deep and penetration area distance is 5-10cm , flat and big surfaces is 10-20cm

Company profiles
COLO is an innovator of powder coating equipment industry from year 2009, exporting to more than 100 countries. Over the past years we have been recognized as the Top powder coating equipment brand in China because of our professional teams, advanced techologies, productivity solutions, reliable quality and competitive price.

COLO Coating Systems is your source for all of your powder coating equipment needs. COLO conforms to CE, ISO 9001 standards.

Our product range from manual and automatic powder coating machines, powder coating reciporcators, powder spray booths, powder recovery systems, electric/gas/diesel curing ovens, powder coating spare parts, after-market replacement parts, and complete powder coating lines.


Contact Us For More Product Detail !!!
