• Model NO.：COLO-660
• Condition：New
• Weight of Gun：550g
• Length of Gun：330mm
• Power Source：AC220V,110V
• Frequence：50-60Hz
• Power：50W
• Voltage Input：DC24V
• Voltage Output：100kv
• Max.Current Output：180
• Polarity：Negative
• Max Injection Capacity：650g,Min
• Transport Package：Carton
• Specification：CE ISO
• Trademark：FF,COLO
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：200sets,Month

Basic Info.

Model NO. COLO-660 Condition New Weight of Gun 550g Length of Gun 330mm Power Source AC220V/110V Frequence 50-60Hz Power 50W Voltage Input DC24V Voltage Output 100kv Max.Current Output 180 Polarity Negative Max Injection Capacity 650g/Min Transport Package Carton Specification CE ISO Trademark FF/COLO Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 200sets/Month

Product Description

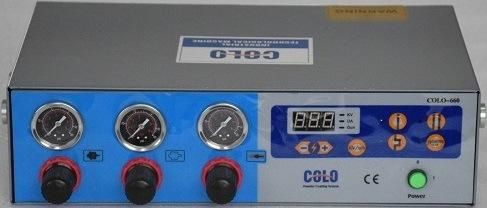

COLO-660 2016 Hot Sell Manual Electrostatic Powder Coating Spray Gun

Main Functions of COLO-660Flat model:  coating flats parts.Corner model: specially coating corners of workpieceRecoat model: .repeatly coating.Pulse model: rapidly recharges the powder to coat complex shapes.


Advantages
1)  Mutifuctional control unit.
2)  Portable type, convenient to use and move
3)  All positive feedbacks from worldwide customers, high quality and easy operation
4) Small packaging in one carton, packing size: 69X56x52cm, save express cost.




Specifications:
Power range                                                                  110V/220v
Frequency                                                                     60HZ/50HZ
Temperature range in use                                              -10 ºC+50 ºC
Powder Gun
Gun weight:    .........                                                       500G
Rated output voltage ...…                                               24VDC
Maximum output current  ...…                                       180Ua(max)
Maximum output voltage......                                          0-100KV (  adjustable)
Maximum powder injection :...…                                    600g/min
Polarity .........                                                                 negative (-)
Pneumatic technical spec
Maximum input-air pressure ........                                     8kg/cm
Optimum input-air pressure.....                                          6kg/cm
Minimum input-air pressure   ...                                          4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   .....          0.1ppm
Maximum cimpressed-air consumption...…                     13.2 m3/h
TPulse coating     ........ ........ ........                     15~20 clock/sec

Connection of the machine


Company profiles

COLO is an innovator of powder coating equipment industry from year 2009, exporting to more than 100 countries. Over the past years we have been recognized as the Top powder coating equipment brand in China because of our professional teams, advanced techologies, productivity solutions, reliable quality and competitive price.

COLO Coating Systems is your source for all of your powder coating equipment needs. COLO conforms to CE, ISO 9001 standards.

Our product range from manual and automatic powder coating machines, powder coating reciporcators, powder spray booths, powder recovery systems, electric/gas/diesel curing ovens, powder coating spare parts, after-market replacement parts, and complete powder coating lines.



If you need more information, send us inquiry or contact us

Contact us for more product detail
