• Model NO.：HT-SX600B
• Condition：New
• Voltage：AC 380V 50Hz 3phase
• Power：32.6KVA
• Input current：AC 22A
• OCV：DC 21-45 V
• Voltage adjust class：thick, fine each 3 class, total 9 class
• Voltage characteristic：Flat characteristic
• Output current：DC 600A
• Insulation grade：B
• Transport Package：Wooden Case
• Specification：700*500*1010mm
• Trademark：Hento
• Origin：Henan, China
• Production Capacity：300 Sets, Month

Basic Info.

Model NO. HT-SX600B Condition New Voltage AC 380V 50Hz 3phase Power 32.6KVA Input current AC 22A OCV DC 21-45 V Voltage adjust class thick, fine each 3 class, total 9 class Voltage characteristic Flat characteristic Output current DC 600A Insulation grade B Transport Package Wooden Case Specification 700*500*1010mm Trademark Hento Origin Henan, China Production Capacity 300 Sets/ Month

Product Description

Factory Direct Sale Arc Welding Machine
1.Machine Introduction:
Arc spray machine to melt the metal material by arc that between two pieces of conductive wire, and then send the molten metal atomization to the product surface with high speed. The arc spray machine is consist of power supply, control device, arc spray gun, wire feeding machine and compressed air supply system, etc. It has reliable performance, low failure rate, material select widely, easy to know the spraying process, and coating stable, etc. It is the most widely application of thermal spraying technology currently, widely used in: power plant boiler corrosion wear resistant coating; steel structure spraying zinc aluminum coating to anti-corrosion; ship hydraulic equipment anti-corrosion spray coating,petrochemical tank anti-corrosion spray coating; and repair all kinds of hardware, axial,rolls, iron products spraying zinc and aluminum coating to anti-corrosion ; paper dryer wear repair; printing roller pressure wound repair, etc.
Arc spray machine consist of power supply, controal device, arc spray gun, wire feeding machine.
Auxiliary equipments: Sand blast machine and air compressor machine

Applications:
Anti-corrosive coating for steel structure of steel tower, bridge, water shutter, vessel and so on.
Surface repair work of work pieces such as paper-making dryer, printing roller, bent axis.Electrode spray in capacitance and electric porcelain fields.
It can spray on metal, wood, paper, plastic,floor, ceramic, etc

Spray materials
It can spray all kind of metal wires, such as Chrome, Zinc, Aluminum, Copper, Stainless steel, Iron, Steel, Molybdenum, etc alloy wires.
Wire size: It can spray the wire size from diameter 1.6 ~ 3.0mm..

2.Technical Parameters:

Model	HT-SX600B
Voltage	AC 380V  50Hz 3phase
Power	32.6KVA
Input current	AC 22A
OCV	DC 21-45 V
Voltage adjust class	thick,fine each 3 class total 9class
Voltage characteristic	Flat characteristic
Output current	DC 600A
Load rate	60% (400A)
Insulation grade	B
Dimension	700*500*1010mm
Weight	235kg
Pressure	>=0.6 MPa

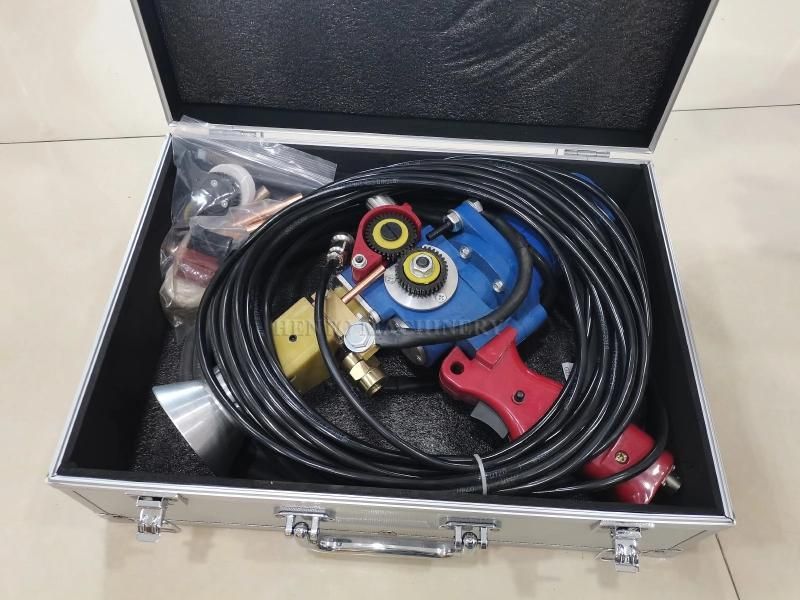

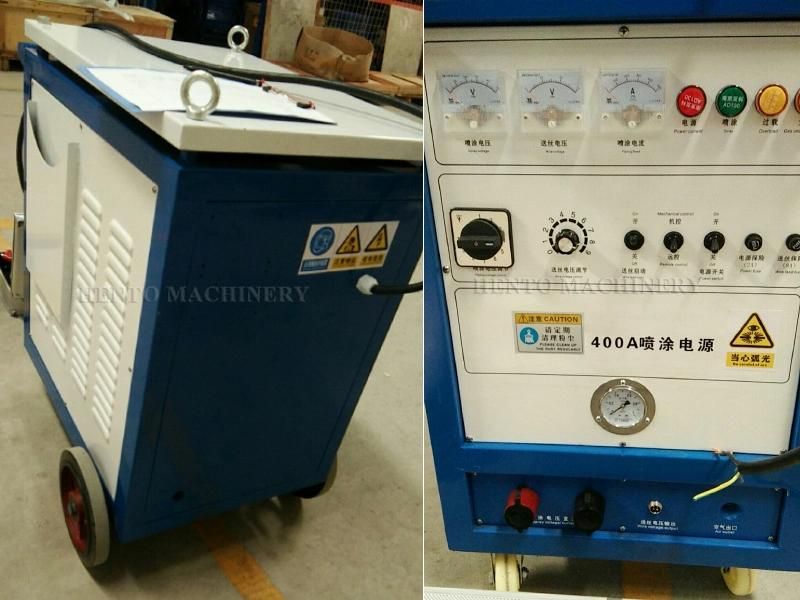

3.Machine Photos:


4.Company Certificate:

5.Packing&Delivery:

6.Our Customer:

7.Contact us:
If you need further information, please contact us freely,  we will do our best to cooperate with you.
