• Model NO.：LDQ-150
• Specification：466 x 238 x 630mm
• Trademark：Laihua
• Origin：Shangdong
• HS Code：8461500090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. LDQ-150 Specification 466 x 238 x 630mm Trademark Laihua Origin Shangdong HS Code 8461500090 Production Capacity 100 Sets/Month

Product Description

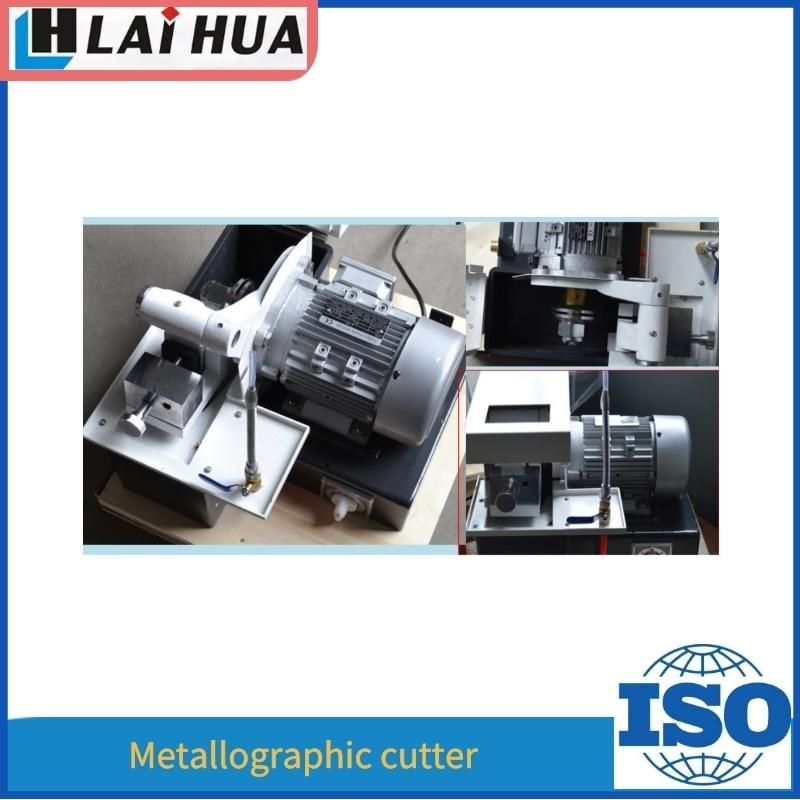

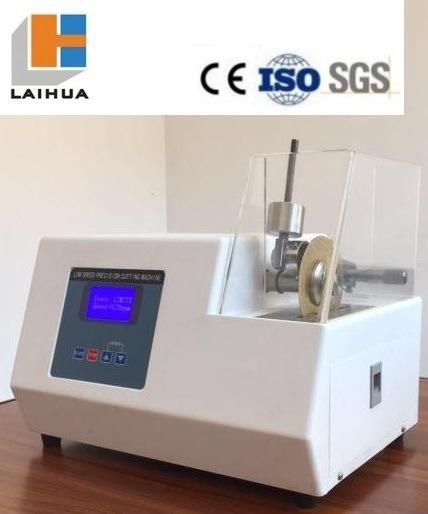

LDQ-150 Low and Speed Metallographic sample cutting machine

Features and application:
LDQ-150 Low & Medium  speed precision cutting machine adopts advanced controller with compact structure,reliability and anti-interference ability.
The machine applies to all kinds of materials ,especially suitable for artificial crystals with high values.

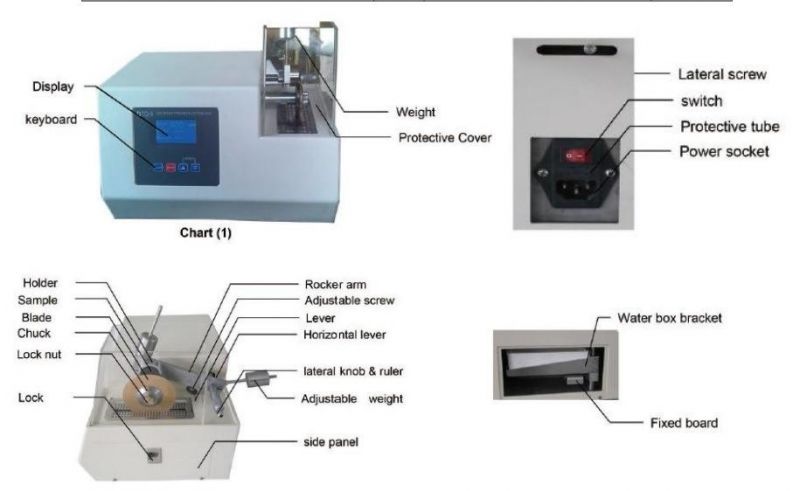

The equipment is equipted with four fixtures ,such as A,B,C,D device,which can cut the workpiece at the best angle .
There is limit switch on the machine and meanwhile the equipments will realize the cutting operation without anybody.
The shaft has high precision when running and accurately adjust the level of objects.
After cutting,the machine will stop automatically.
Technical Parameter:
Cutting Wheel Size:
External diameter100mm-150mm
Internal diameter 20mm
Chuck External diameter:48mm
Travel: 25mm
Shaft Speed:0-1500rpm/min
Dimension:520×430×390mm
Weight: 33Kg
Motor: 400W /AC220V/110V/
Water tank: 0.4 L

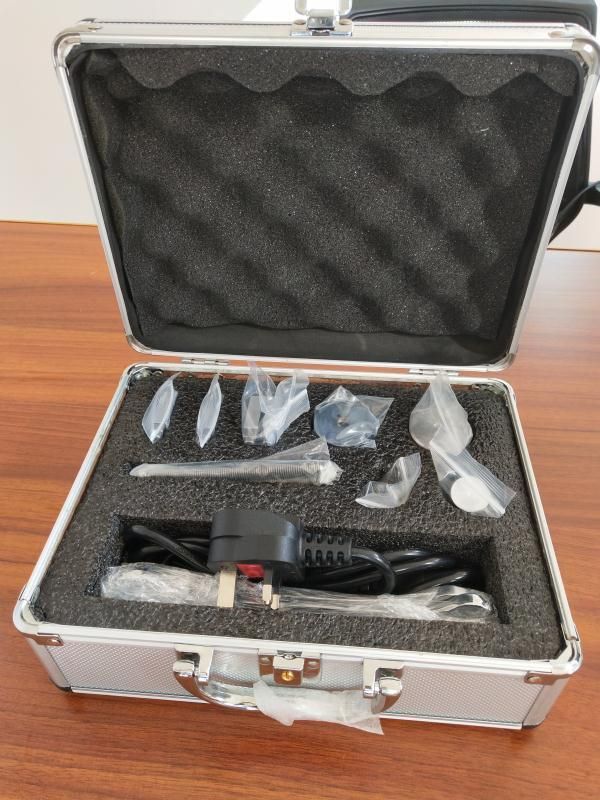

Packing List:

The machine	1pc	Slick rod of weight	2pcs
Attachment box	1pc	Chunk for grinding wheel	1set
Litter tank (with machine)	1pc	Buckler (with machine)	1pc
Specimen holder for slice	1pc	Cutting wheel  φ100mm	1pc
Specimen holder for circular	1pc	Locking handle	1pc
Dual specimen holder for slice	1pc	Power cord	1pc
Spanner	1pc	Locking screw of principal axis	1pc
Specimen holder for mounting materials	1pc	Certificate	1pc
Weight   A	1pc	Manual	1pc
Weight  B	1pc



Packaging and shipping
Packaging: Standard export package, wooden case
Delivery: 3 days upon receipt of payment, depend on order quantity

Company Information:
Laizhou LaiHua Testing Instrument Factory was founded in 2010,which specializes in the manufacture of hardness testers  and metallographic equipments for metaland nonmetal materials. Besides, we can also design special, large-scale dedicated machines according to the requirements of customers.
