• Model NO.：DX840&825
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Item：Dx Double Layer Metal Galvanized Roof Sheet Rollin
• Forming Speed：8-12m,Min
• Control System：Delta PLC Computer Control System
• Feeding Width：1250mm
• Feeding Thickness：0.3-0.8mm
• Panel Profile：840-210-25 and 825-76-18
• Motor：4 Kw
• Pump Station：4 Kw
• Weight：2.8 Tons
• Size：6.5m*1.4m*1.5m
• Transport Package：Naked Packing
• Specification：840&825
• Trademark：DIXIN
• Origin：Made in China, Province Hebei
• HS Code：84552210
• Production Capacity：20 Sets,Month

No.Item NameLead TimePackageQtyFOB Tianjin Port1840&825 Double Deck  Roll Forming Machine
30 days

20′
 111500 USD



1. Panel drawing and machine picture
A.Up layer 840-210-25 trapezoidal roof sheet panel forming layer
   Forming thickness:0.25-0.8mm*1000mm thickness PPGI
   Uper layer:11 roll stations.75mm shaft
   Hydraulic mould cutting
   Delta PLC fully automatic control system
   CE,BV,TUV,CO and other requirement available.(inform us before)
B.Down layer 840/825-75-18 Trapezoidal sheet
   Forming thickness:0.25-0.8mm*1000mm thickness PPGI
   Uper layer:13 roll stations.75mm shaft
   Hydraulic mould cutting
   Export this kind double layer machine to many countries.
   Delta PLC fully automatic control system
   CE,BV,TUV,CO and other requirement available.(inform us before)

2. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.25-0.75mm
(3) Effective width: 840mm&825mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4 k
(7) Shaft diameter: 75mm
(8) Forming steps: up level 11 steps for 840 profile;down level 13 steps for 825 profile
(9) Roller material: 45# forged steel with hard chrome plating
(10) Main frame: 300H/U steel
(11) Medium plate thickness: 16 mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V,3 Phase,60Hz
(14) Over size: 6500mm*1500mm*1500mm

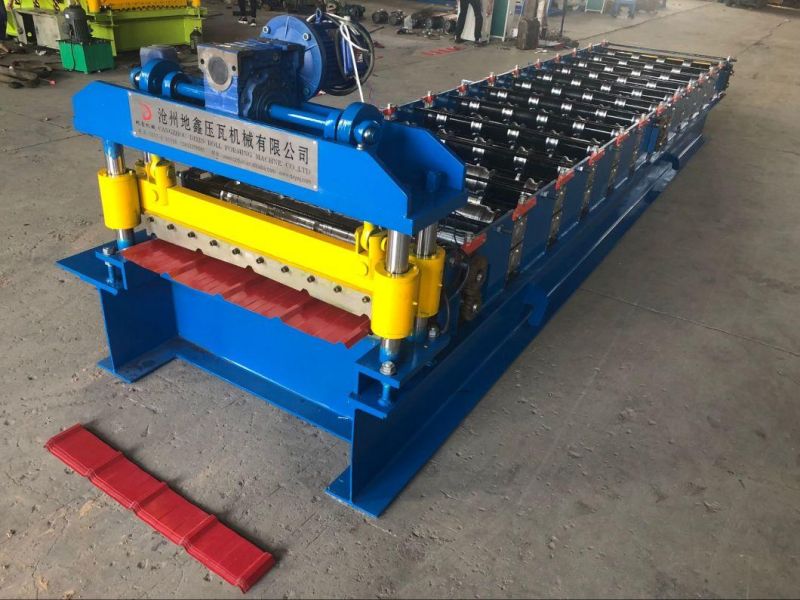

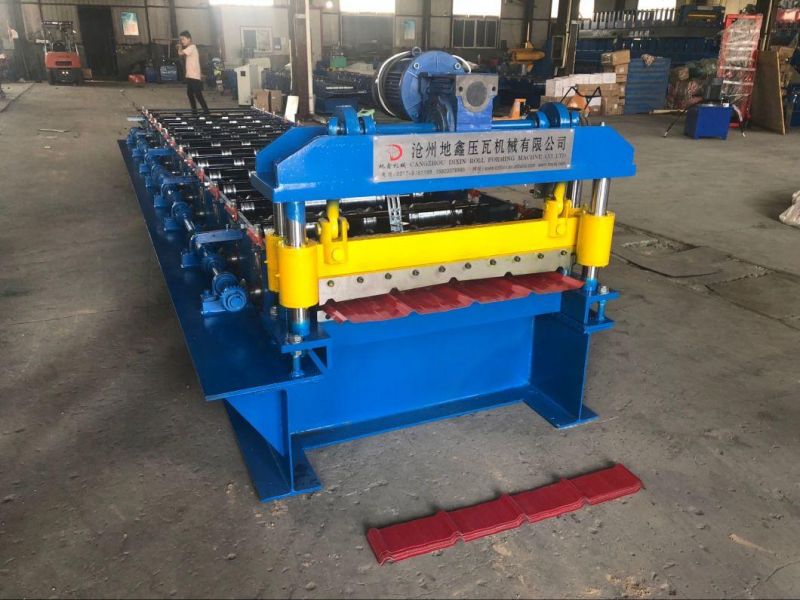

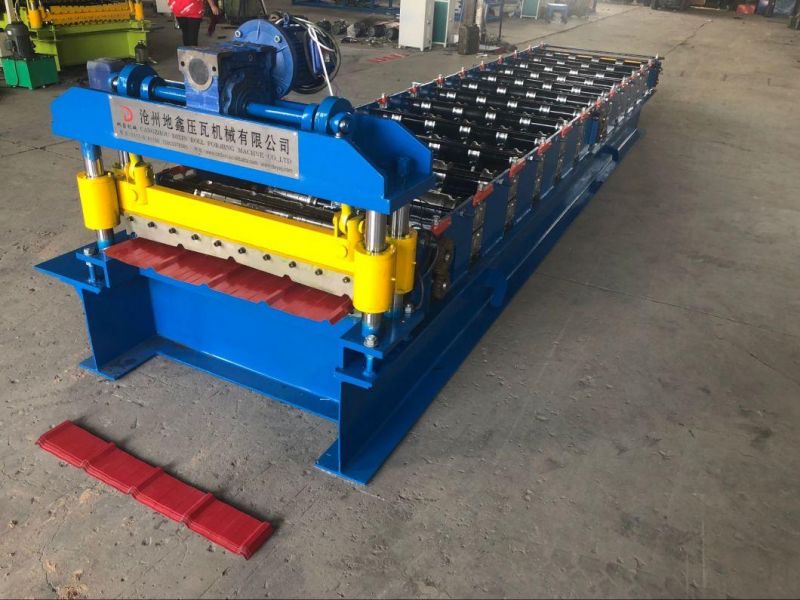

3.Machine pictures:
  Pls contact me by e-mail and I will send you detailed pictures.

4.Work flow
  Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking

5.Components of production lineNo.NameUnitQty1Manual decoilerset12Main forming machineset13PLC control systemset14Hydraulic pump stationset15Post cutset16Electric motorset17Output tableset1
6. Specific description

(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) Hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts Delta PLC to control, the target sheet length is adjustable.
Computed mode has two modes: automatic and manual.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

1Magnetic Valve
(1 PCS)
2Counter
(1 PCS)

3Hydraulic Oil Pipe
(2 PCS)


4Position Swith
(2 PCS)


5Counter Wheel
(2 PCS)


6Relay
(4 PCS)

7Protector Tube
(4 PCS)
7. Payment term
 TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

8. Warranty
12 months, and lifelong technical support service

9. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 50 USD/day for salary.

10. Package
Standard export package, water-proof package, covered with plastic film

11.Service
One year warranty and lifelong technical support will be provided.
If you come here,we can teach you how to use it on-site for free.If not,We can learn by video.It is easy to operate.
We can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 50.
