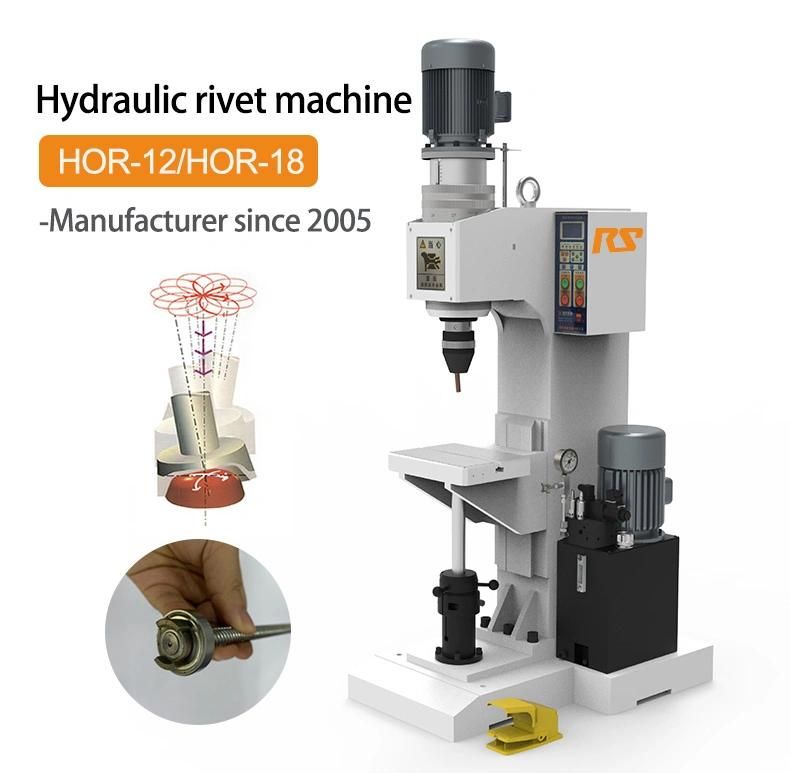

Power 2.2kw Max Output Pressure 2.5MPa Orbital Hydraulic Riveting Machine
RSM Machinery Co.,Ltd.- After-sales Service：Provided
- Automatic Grade：Automatic
- Power Supply：Hydraulic Pressure
- Warranty：1 Year
- Certification：ISO
- Riveting Ability：2-12mm
Base Info
- Model NO.：HOR-12
- Max Riveting Pressure：19.8kn
- Supply Voltage：380V
- Max Output Pressure：2.5MPa
- Throat Depth：154mm
- Max Working Stroke：50mm
- Power：2.2kw
- Size：417*770*1626mm
- Transport Package：Standard Export Wooden Box
- Specification：350kg
- Trademark：RS
- Origin：China
- Production Capacity：30,Month
Description
Product Feature
. Adopting a medium-sized desktop design
. Adopting international advanced orbital riveting counting
. Large working area
. Integrated intelligent control box
FAQ
1. What's the rivet capacity of the machine?
The rivet capacity is Φ2-Φ12mm;Φ2-Φ18mm
2. What's the rivet type of this machine?
The rivet type is orbital rivet.
3. What's the driven system of the machine?
The machine is driven by hydraulic.
4. What's the power supply of the machine?
380V
5. What's the warranty of this machine?
The warranty is one year, sure if you need longer, you need to pay extra cost, the spare part is not included.
6. Do you have after service in oversea country?
Current we do not have, but we will have online video with you and teach you how to install and use the machine.
Sure we will send you operation video of the machine before delivery.
7. Can you customized color and logo of the machine?
Yes we can, the MOQ should be 8 sets.
8. What's the spare part of this machine and do you provide free spare parts for this machine?
The tool is spare part, you need to order it seperately.
