• Model NO.：colo-5219
• Power Supply：Electric
• Voltage：380V,220V
• Frequency：50-60Hz
• Warm-up Time：15-30 Min
• Temperature Stability：< ± 3-5°c
• Temperature Max.：250° C
• Fan Motor：3 Phase 220V, 1PCS
• Heater：Italy Riello
• Transport Package：No Packing
• Specification：CE
• Trademark：colo
• Origin：Zhejiang
• HS Code：8424899990
• Production Capacity：20000PCS,Year

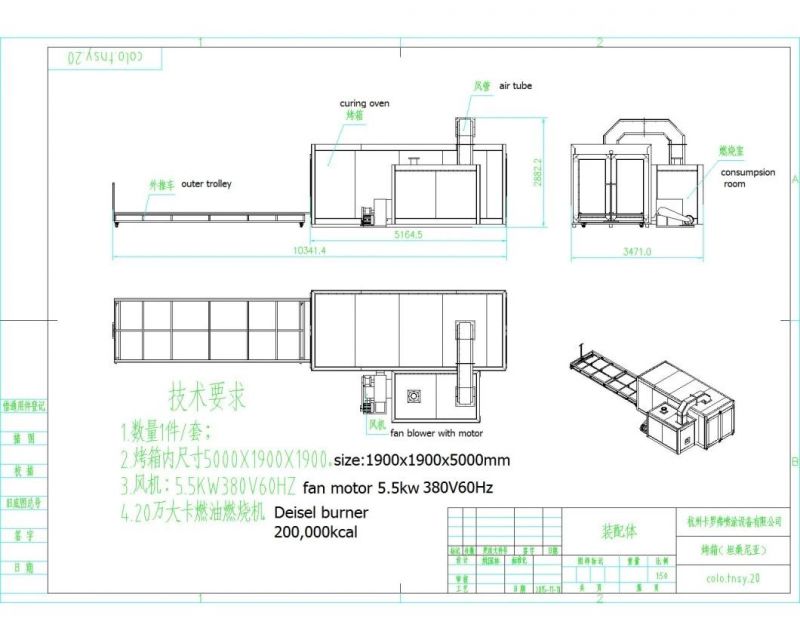

Features of COLO-5219 Diesel Fired Powder Coating Large Oven

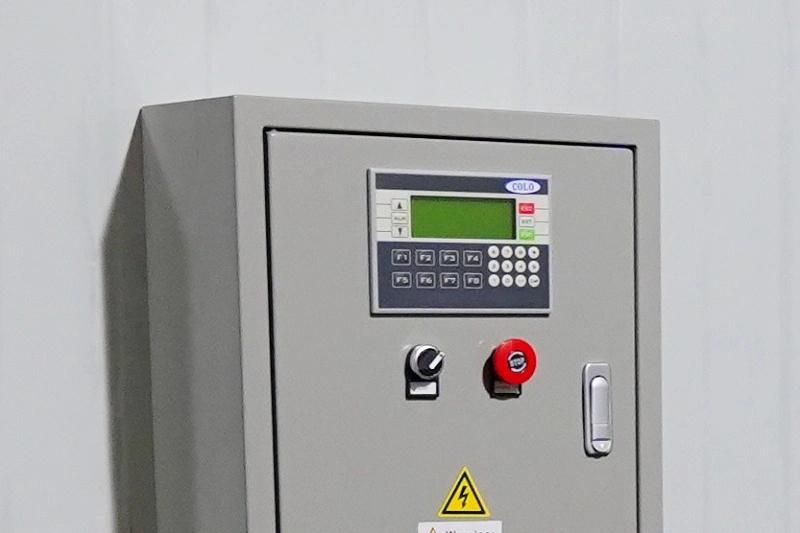

 PLC Controller

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.

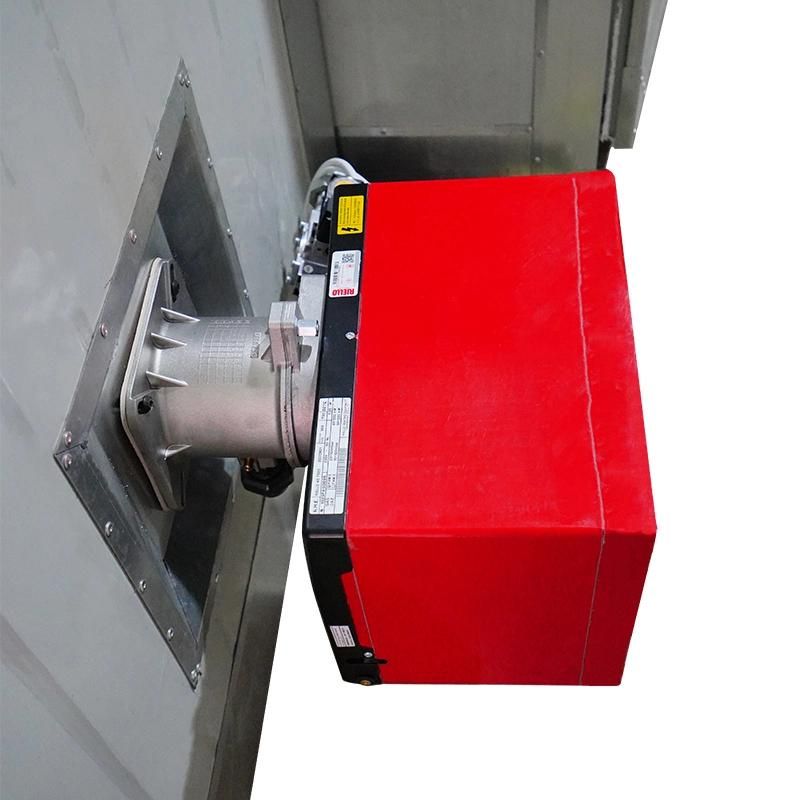

The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.Italy RIELLO Gas Burner

Italy imported RIELLO diesel burner, takes full use of fuel, rapdily raises to required temperature, Max. reach to 250ºC (normally 180ºC for heating 15-20mins). Quick heat-up rates helps to achieve higher production output.Oven Wall Materials

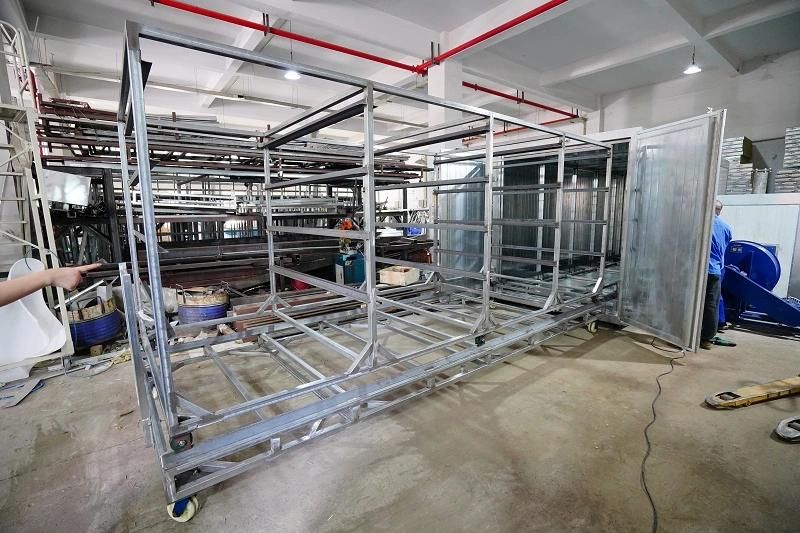

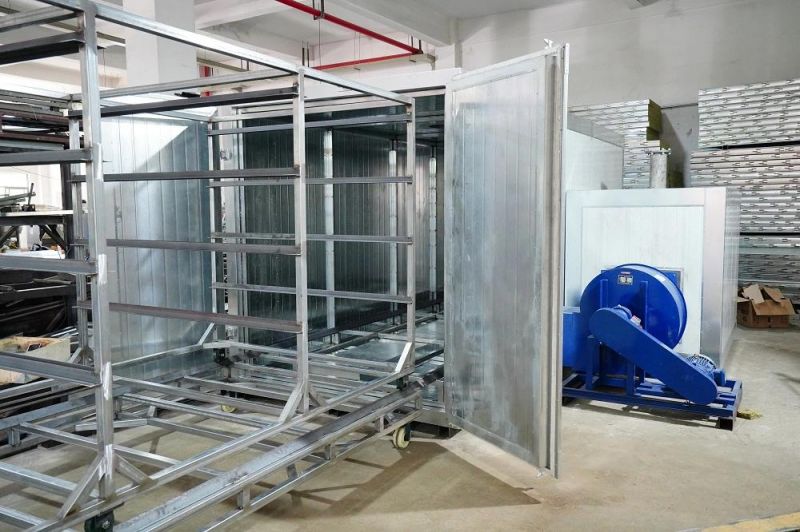

Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.Transporting System

Supply with trolley and frames for easy carrying and  loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.
Customer Visiting&Exhibition
We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business .






Buying Guide
If you are interested in this product ,pls feel free to contact us
