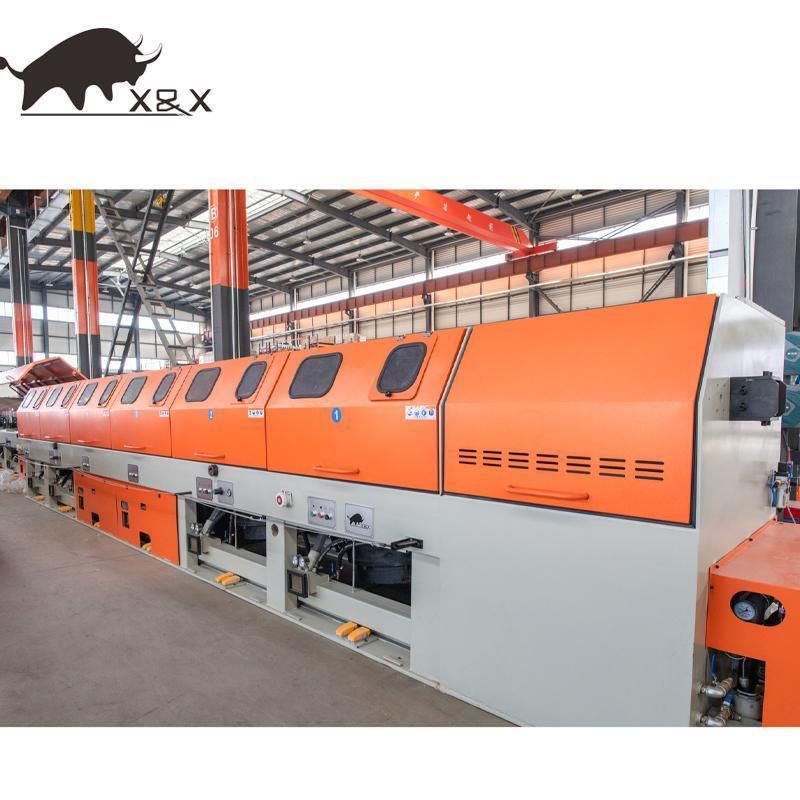

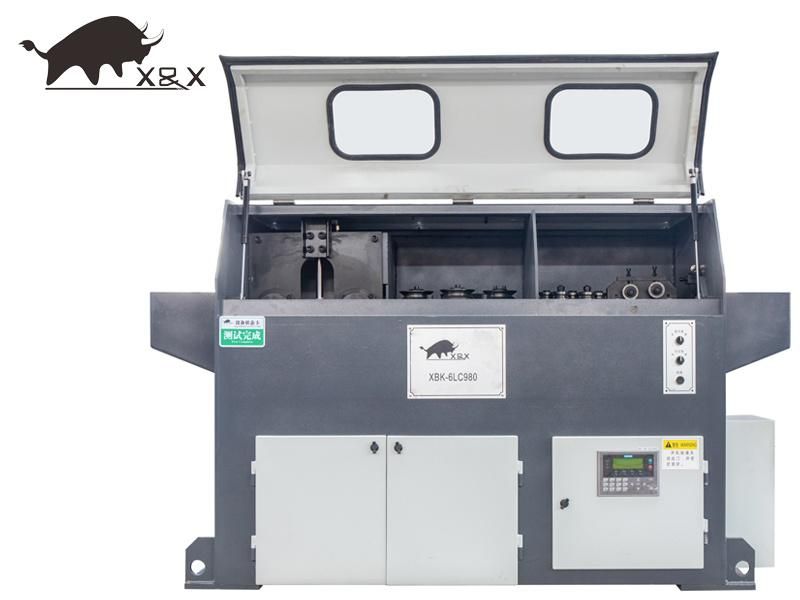

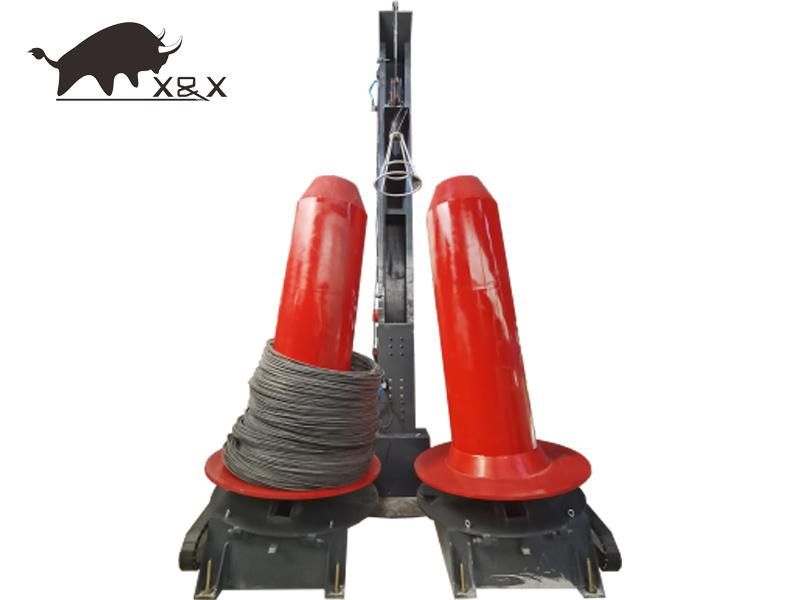

LVD Copper Drawing Machine for Metal Business with Multiple Inlet and Outlet Diameters
Jiangsu Zhixuan International Trading Co., Ltd.- After-sales Service：Free Maintenance Service Within Warranty Period
- Warranty：12months
- Type：LZ Straight-Line Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
- Metal Material：Steel
- Outlet Diameter：0.5-7.0mm
Base Info
- Model NO.：LZ Straight-Line Metal Drawing Machine
- Max.Inlet Wire Dia.：6.5mm
- Block Dia.：560mm
- Max. Number of Block：14
- Certification：REACH, RoHS, ISO
- Condition：New
- Block Diameter：560mm
- Maximum Number of Block：14
- Maximum Tensile Strength of Inlet Wire：1350MPa
- Maximum Diameter of Inlet Wire：6.5mm
- Minimum Diameter of Outlet Wire：1.4mm
- Maximum Drawing Speed：20m,S
- Motor Power：22-45kw
- Transport Package：Container Shipment
- Specification：50X3X1.5m
- Trademark：Zhixuan
- Origin：Jiangsu China
- HS Code：846310
- Production Capacity：30000t,Year
Description
5. Innovative technologies
Servo direct drive technology pioneer, leading technology, the world's first, the cumulative production of direct drive wire-drawing machine more than 500 sets, more than 5000 direct drive motor!

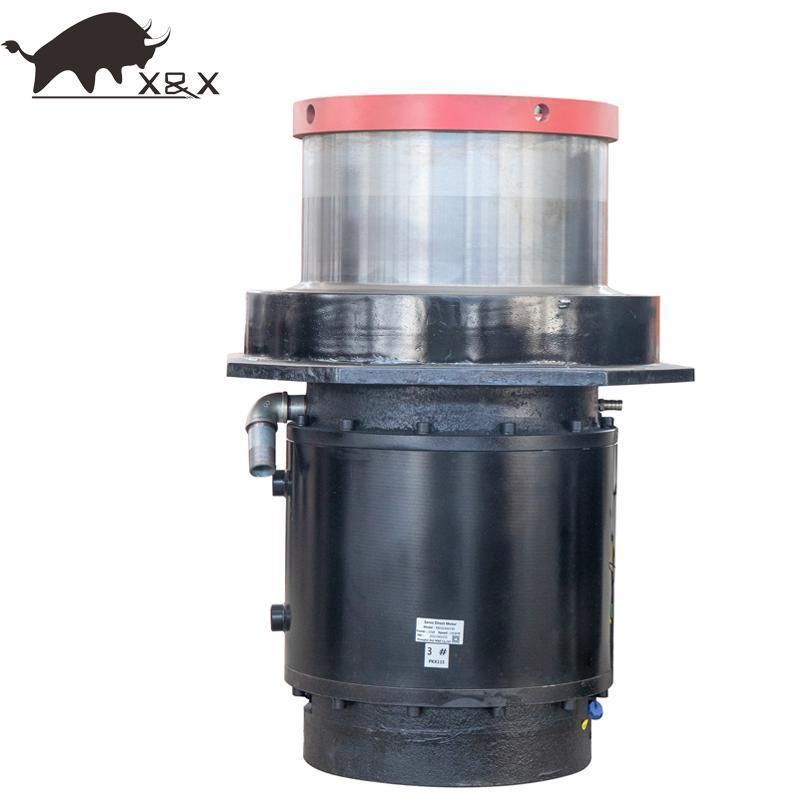

5.1 Servo motor drive directly
5.2 Servo motor connect capstan directlyWithout gear box; Without transmission belt; Without mechanical break.
Comprehensive energy saving 10%-20%

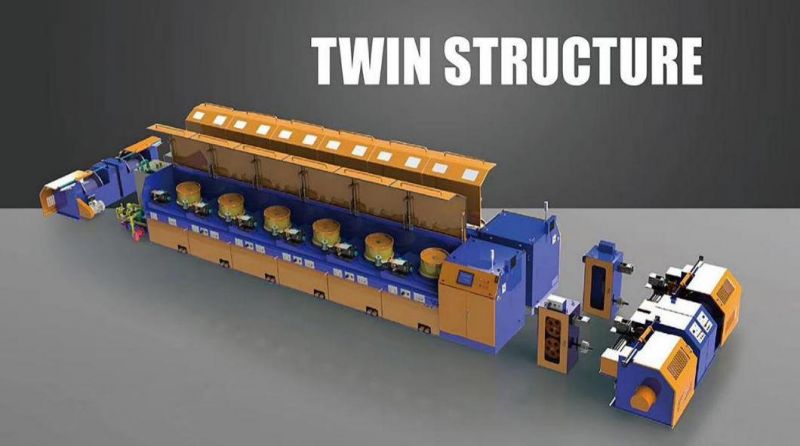

5.3 Twins design
- Two machines can be installed, operate, and maintain back to back
- Twins take up spooler, motor is at inner side
- Save land 50%
- Saving infrastructure
- Save supporting facilities

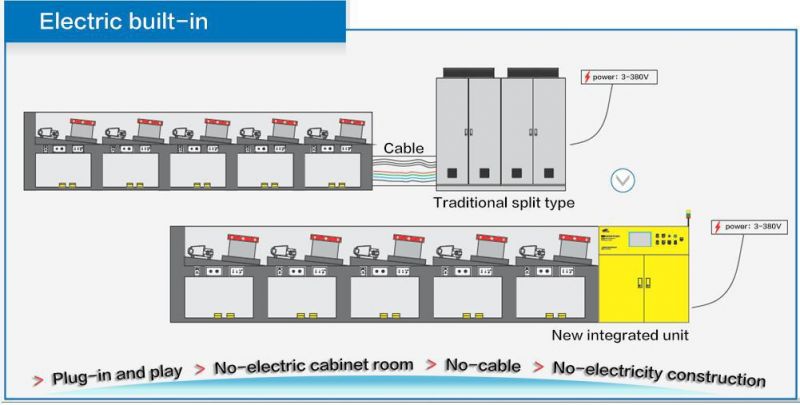

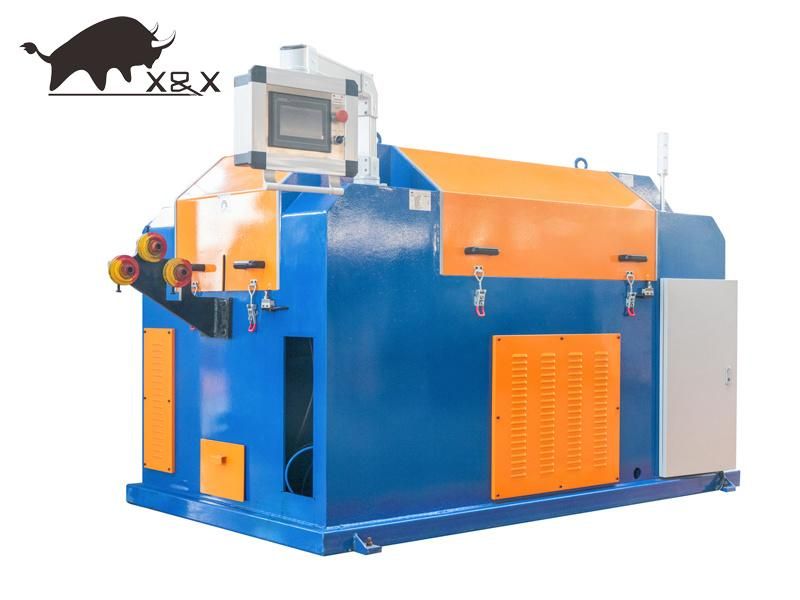

5.4 Plug and play
The electrical cabinet and machine is integrated
The control panel is on top of electrical cabinet
5.5 Checking temperature of bearing of motor
Checking the temperature of up and down bearing of motor, Showing the temperature on time, Making alarm and stop machine for over temperature5.6 Motor and electrical cabinet is cooled by cooling water
- Set independent soft water tank, motor and electrical cabinet is cooled by closed cooling water circulation.
- Anti-dust electrical cabinet, no deposit, no block on pipe of cooling water for motor.
5.7 Special treatment on inner side of motor
- Anti-water, prevention of moisture condensation
- Preventing damage of motor due to over temperature

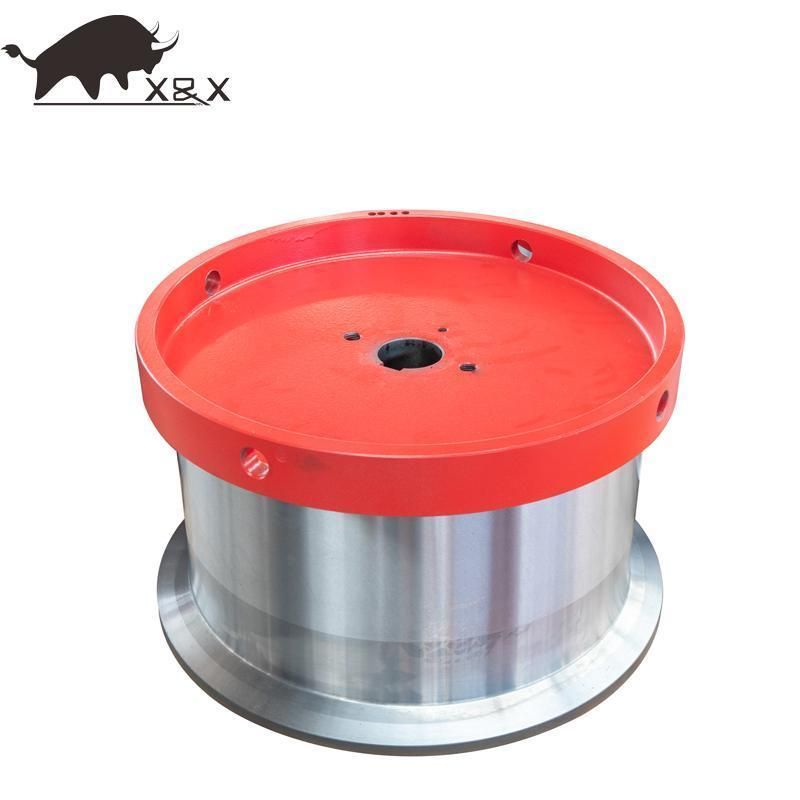

5.8 Capstan
- Adopt bongrace type, avoid drawing powder drop into water plate from gap between frame and capstan
- Capstan is dynamic balanced
5.9 Die Box
- Pressure type die + rotating die+ powder stirrer
- Pressure type die +powder stirrer
- Forced lubricant, take enough powder on wire surface
5.10 Dust collection system (option)
Can take out drawing powder dropped on frame, it is also helpful for cooling wire
5.11 Cooling water flow check:
Equip cooling water counter meter, check cooling water flow accurately5.12 ID register:
Equip ID register device, to run machine, operator should register first. So machine can count quantity of production according to operator5.13 Spare parts is module design:
Standardization of components, splicing of components, easy maintain5.14 Energy conservation and environmental protection
Comprehensive energy saving of 10%- 20%
Direct drive environment is quieter
Seal + own dust removal system
5.15 Internet of Things
6. Water and electrical configuration requirements
| Power supply | 380±10%,50HZ, three-phase five-wire (ground reliable grounding), power configuration and cable specifications as shown in the basic diagram 380±10%,50HZ. |
| Air supply | Pressure ≥ 0.5 MPa |
| Cooling water | Pressure ≥ 0.08mpa, water temperature ≤25ºC |
