• Model NO.：850
• Warranty：12 Months
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Name：Three Layer Roofing Sheet Roll Forming Making Mach
• Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：828,900,840
• Feeding Width：1000mm
• Main Motor Power：4 Kw
• Pump Power：4kw
• Shaft Diameter：75mm
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Main Frame：350h Steel
• Color：According to Customer Demand
• Transport Package：Simple Waterproof Fit for Ocean Ship, Need a 20 Gp
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou City, Hebei Province
• HS Code：84552210
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. 850 Warranty 12 Months Customized Customized Advantage Work Flexible Condition New Name Three Layer Roofing Sheet Roll Forming Making Mach Processing Material Aluzinc/Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Effective Width 828/900/840 Feeding Width 1000mm Main Motor Power 4 Kw Pump Power 4kw Shaft Diameter 75mm Roller Material 45# Forged Steel, with Hard Chrome Plating Main Frame 350h Steel Color According to Customer Demand Transport Package Simple Waterproof Fit for Ocean Ship, Need a 20 Gp Specification CE ISO BV Trademark DIXIN Origin Botou City, Hebei Province HS Code 84552210 Production Capacity 20 Set Per Year

Product Description

Three layer roofing sheet roll forming making machine tool
Cangzhou Dixin Roll Forming Machine Co.ltd is a manufacturer and exporter specializing in the design, development and production of cold roll forming machines. The company is located in the northwest of Tianjin, China, and cooperates with a number of production plants and related companies.



1. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width:828/836/760mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: first layer is 13 steps,second level is 15steps,third level 16 steps.
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16m
(12) Control systerm: Delta PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(14) 0veral sized:about 6500mm*1600mm*1500mm

2. Work flow
Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking

3. Components of production line

No.	Name	Unit	Qty
1	Manual decoiler	set	3
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	2

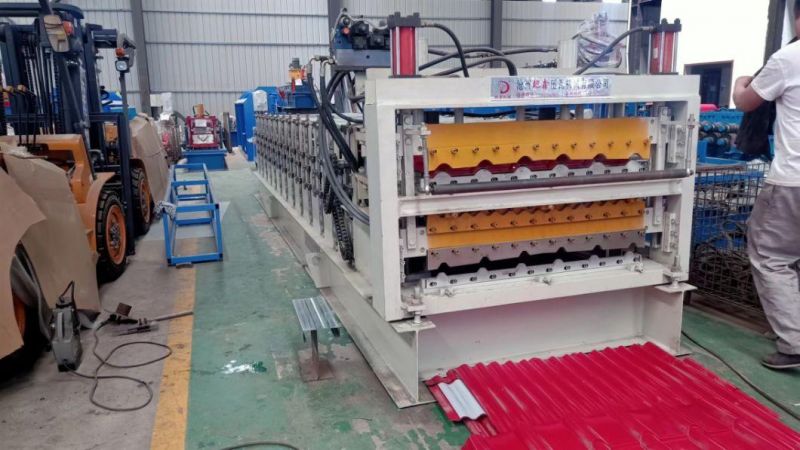

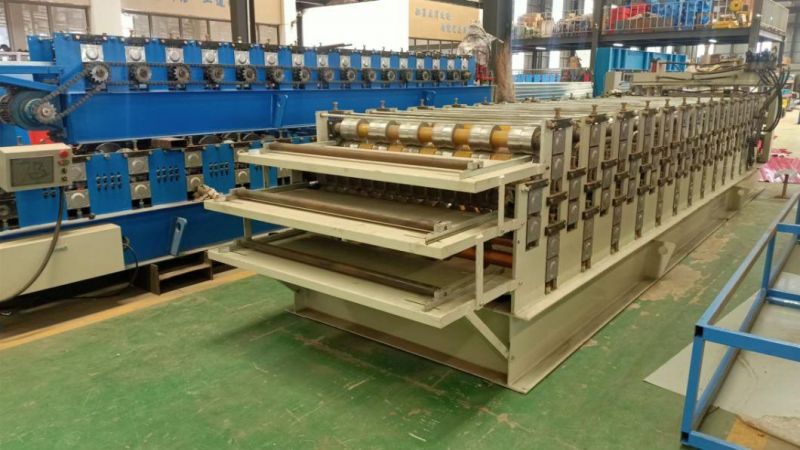

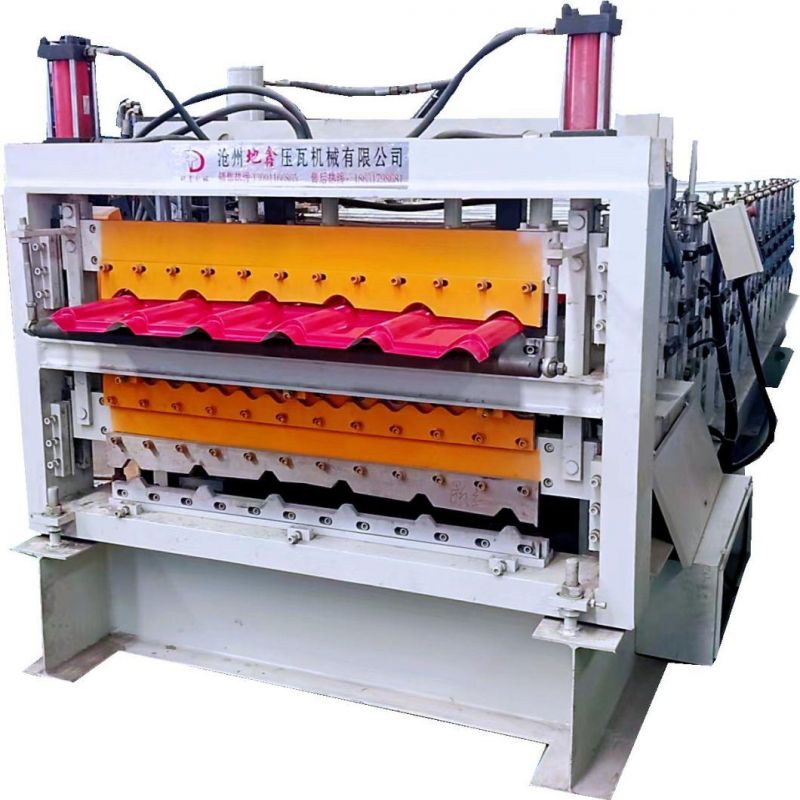

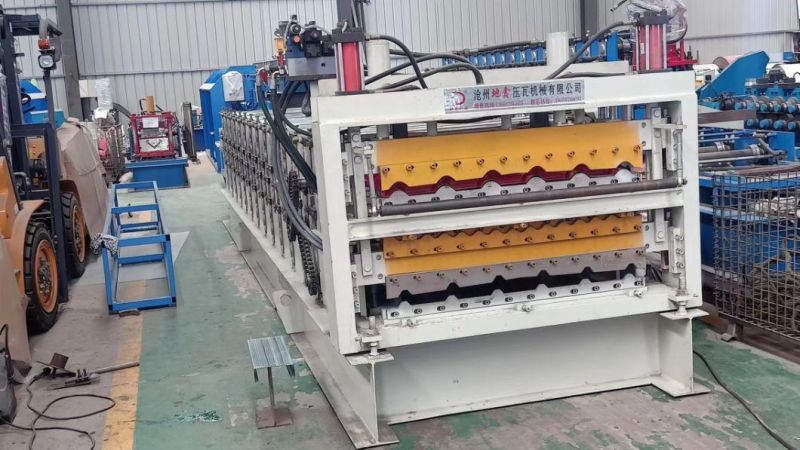

4.Some machine pictures for your reference.










5. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
6. Warranty
12 months, and lifelong technical support service
7. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 100 USD/day for salary.

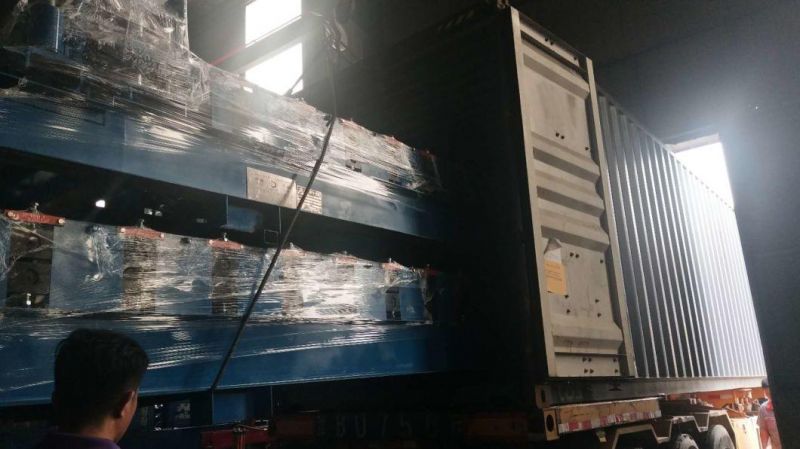

8. Package
Standard export package, water-proof package, covered with plastic film

If u have any other question,please contact me any time.



9.Why Choose Us?
1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .

10.FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc



If you want to get more information about our equipment ,
Please feel free contact Nancy
